We are an environmental friendly organization. It is avowed mission to help the environment free from ozone and harmful toxic fumes. As manufacturer, distributor, technical support provider and exporter/importer of painting gun and allied equipment and machinery we take all precautions not to add to the environmental woes of the world. Our mentor equipped with an educational background in surface coating technology and leveraging on his vast experience in paint application area, started this venture in 1999 with the motto to minimize solvent emission during spray painting.Our Surface coating guns & equipment.HVLP spray painting gun, Conventional, spray painting gun, Paint transfer pumps, Pressure feed container/tank, Paint stirrer/agitator, Airless spray equipment, and other related products such as Powder coating Powder paints, aerosol Cans, Pickling paste for SS Weld Joints adhere to the strictest industry parameters in....
Spray Guns
Spray painting is a painting technique where a device sprays a coating (paint, ink, varnish, etc.) through the air onto a surface. The most common types employ compressed gas—usually air—to atomize and direct the paint particles. Our Air gun spraying uses equipment that is generally larger. It is typically used for covering large surfaces with an even coating of liquid. Our Spray guns can be either automated or hand-held and have interchangeable heads to allow for different spray patterns. Single color aerosol paint cans are portable and easy to store.
Our use of advanced technology in this product range provides easy maneuverability to operator. These spray guns have maximum working efficiency, low maintained to avoid frequent breakdown, trouble free service, even application of paint, improved surface finish, easy handling due to lightweight gun. It is equipped with 7/8 hp motor that is capable of spraying up to .54 gpm and a .023 tip size, which means it will spray a wide variety of coatings - stains, lacquers, enamels and latex paint. Our spray guns are used for Wood finishing, Leather finishing, Drum Painting, Metal furniture, Fixture manufacturing and other industrial activities.
Our range includes:

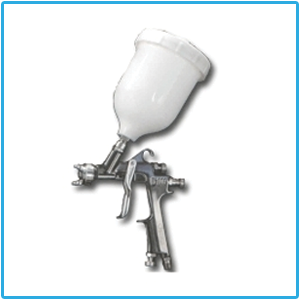

Gravity Spray Guns
High Performance Spray Painting Gun. Center Gravity cup ensures operator balance for easy handling of gun during painting process.Most widely used in Painting industries due to Ergonomic balance of gun, Higher transfer efficiency, Light weight gun,Stainless Steel fluid path.
| Technical Specification | |
| Model | W-306 |
| Type | Gravity |
| Nozzle | 1.5/ 1.00 mm |
| Operating Air Pressure | 0.24 MPA |
| Air Consumption | 145 L/Min |
| Fluid Output | 270/160 Ml/Min |
| Pattern Width | 240 mm |
| Air Inlet | 1/4" BSP |
| Paint Cup | 600 ml cup Nylon/ steel |
| Weight of the Gun | 350 gms |
Osaka Spray Gun Gravity
High Atomizing paint spray gun, enables for small fine droplets of paint particle for higher gloss finishes.
Widely used in Automobile Refinishing painting work. Most suitable for Metallic, plain, Lacquers, Primer Painting on Auto body.
| Technical Specification | |
| Model | Osaka |
| Type | Gravity |
| Nozzle | 1.4/ 1.7/ 2.0 mm |
| Operating Air Pressure | 4-6 Kgf/cm2. |
| Air Consumption | 5-7.5 CFM. |
| Fluid Output | 250/375/500 ML/Min |
| Pattern Width | 300 mm. |
| Air Inlet | 1/4" BSP. |
| Paint Cup | 600 ml |
| Cup | Nylon/ steel |
Mini Touch Up Spray Guns
Small Painting Gravity feed spray gun, mostly used for small spray pattern, Touch up work, it also works on single phase
Mini portable compressor,
It reduces overspray into atmosphere, almost clean working area during spray.Widely used for marking, staincilling, small spray width painting, hobby work etc.
| Technical Specification | |
| Model | NA 2003 Min |
| Type | Gravity |
| Std. Nozzle | 0.8 mm |
| Air Pressure | |
| Air Consumption | 2-3 cfm. |
| Fluid Output | 150 Ml/Min. |
| Pattern Width | 100 mm. |
| Air Inlet | 1/4" BSP |
| Paint Cup | 200 ml Nylon. |
Pressure Feed Spray Guns (Item Code : W-106)
High performance Spray gun with high transfer efficiency of Paint.Used in mass production painting work, Converised painting line,Continuous spray painting work, Gun can rotate at any direction during painting, This gun is light weight, Fluid path is Stainless Steel, Air adjusting knob is built on gun itself.
| Technical Specification | |
| Model | W-106 |
| Type | Pressure Feed |
| Std. Nozzle | 1.0/1.5mm |
| Operating Air Pressure | 2-4 Kgf/cm2 |
| Air Consumption | 145 L/Min. |
| Fluid Output | 270 Ml/Min. |
| Pattern Width | 240 mm. |
| Air Inlet | 1/4" BSP |
| Paint Inlet | 1/4" BSP |
| Weight of the Gun | 350 gms. |
| Needle & Nozzle | Stainless Steel |
Pressure Feed Spray Guns (Item Code : W-206)
High performance Spray gun with high transfer efficiency of Paint. Used in mass production painting work, Converised painting line,
Continuous spray painting work, Gun can rotate at any direction during painting, This gun is light weight, Fluid path is Stainless Steel,
Air adjusting knob is built on gun itself.
| Technical Specification | |
| Model | W-206 |
| Type | Pressure Feed |
| Std. Nozzle | 1.3mm |
| Operating Air Pressure | 3-5 Kgf/cm2 |
| Air Consumption | 200 L/min |
| Fluid Output | 350 ML/min |
| Pattern Width | 300 mm |
| Air Inlet | 1/4" BSP |
| Paint Inlet | 3/8 "BSP |
| Weight of the Gun | 422 gms. |

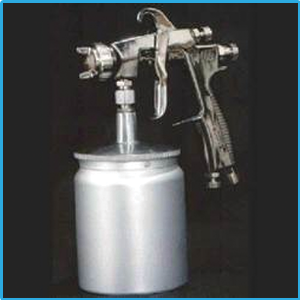

Suction Feed Spray Guns
This gun is having paint feeding cup from the bottom side of the gun. Paint gets sucked due to venturi action of compressor air.Centrally balanced suction feed cup enables painters to operate gun easily from bottom side of the jobs without interruption of cup.Aluminum cup ensures rigid handling during operation of painting.
| Technical Specification | |
| Model | W-106 W-206 |
| Type | Suction Suction |
| Std. Nozzle | 1.0/1.5mm 1.3mm |
| Operating Air Pressure | 1.5-3 Kgf/cm2. |
| Air Consumption | 145 L/Min. 200 L/min |
| Fluid Output | Max. 350 ML/min |
| Pattern Width | 240 mm.to 300 mm |
| Air Inlet | 1/4" BSP |
| Suction Paint Cup | 500 ML. 1000 ML |
| Weight of the Gun | 350 gms. 422 gms. |

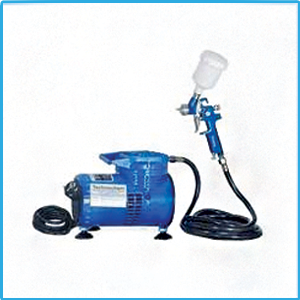

Electric Spray Painting Guns
This is unique, small kind of spray gun operates on mini compressor which operates on single phase electric supply. Many times it is not affordable to keep heavy duty compressor for painting in small quantity, Household uses, occasional painting work, hobby painting. We have developed small, mini gun which operates on mini compressor, which is handy to carry during painting work.
Mainly Used As Hobby Purpose,
It reduces over spray into atmosphere, almost clean working area during spray.Widely used for marking, staincilling, small spray width painting, hobby work etc.
Supply Voltage : 230 V AC, 50 Hz.
Extension Spray Guns
Extension Spray Gun is used for internal coating of pipes, difficult to reach areas with normal gun, Painting of fins/internal parts of Radiator, internal areas of Automobile Axle.
| Technical Specification | |
| Model | TSC45DEG |
| Max. Pressure | 7 Kgf/cm2 |
| Nozzle | 1.5 mm |
| Pattern width | 4-5 inches at distance of 4 inch |
| Air Consumption | 8.3 CFM. |
| Length | 500 mm |
| Paint Feeding | 500 ml suction Cup or Paint Pump/ Pressure Feed Tank. |

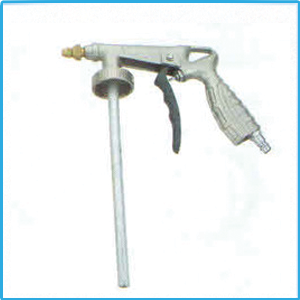

Under Chasis Coating Guns
| Technical Specification | |
| Max. Pressure | 6 kgf/cm |
| Nozzle | 3 mm |
| Air consumption | 7-8 cfm |
| Fluid delivery | suction/ standard bottle |
Air Hopper Spray Guns
Widely used in Texture wall finishes with spray material like Orange peel,Splatter, Stucco, waterproofing material, swimming pool wall sealeants, Household interior textured finishes. Gun is light weight, having handle to support operator, Metallic hopper & trigger assembly, long trigger handle for easier grip.
| Technical Specification | |
| Max Air Pressure | 7.00 Kgf/cm2. |
| Air Inlet connection | 1/4" BSP |
| Air Consumption | 15.00 cfm. |
| Nozzle | 4.00 mm. |
Auto Spray Guns (Item Code : WA-206)
Most rigid, versatile model, stainless steel fluid path, can be used with water based materials, maintenance free, compact Auto Spray Gun.Used in mass production spray application in wide range of industries like Painting,Pharmaceutical,dyestuff coating,Oil, Lubricating, Food industry,Rubber solution spray, Textile spray, water based materials/paints. etc.
| Technical Specification | |
| Model | W-206A |
| Max working Pressure | 4.00 Kgf/cm2 |
| Nozzle | 1.50 mm. |
| Operating Air Pressure | 3-5 Kgf/cm2 |
| Air Consumption | 285 Litre/min. |
| Pattern width | 280 mm. |
Auto Spray Guns (Item Code : TSC-901)
Most rigid, versatile model, stainless steel fluid path,can be used with water based materials, maintenance free, compact Auto Spray Gun.Used in mass production spray application in wide range of industries like Painting,Pharmaceutical,dyestuff coating,Oil, Lubricating, Food industry,Rubber solution spray, Textile spray, water based materials/paints. etc.
| Technical Specification | |
| Model | TSC 901, |
| Max working Pressure | 2. 4.00 Kgf/cm2 |
| Nozzle | 1.00 mm. |
| Air Consumption | 230 Liter/min. |
| Pattern width | 135 mm. |
Auto Spray Guns (Item Code : TSC-902)
Most rigid, versatile model, stainless steel fluid path, can be used with water based materials, maintenance free, compact auto spray gun. Used in mass production spray application in wide range of industries like painting, pharmaceutical, dyestuff coating, oil, lubricating, food industry, rubber solution spray, textile spray, water based materials/paints etc.
| Technical Specification | |
| Model | TSC 902 |
| Max working Pressure | 4.00 Kgf/cm2 |
| Nozzle | 1.50 mm. |
| Air Consumption | 270 Liter/min. |
| Pattern width | 150 mm. |

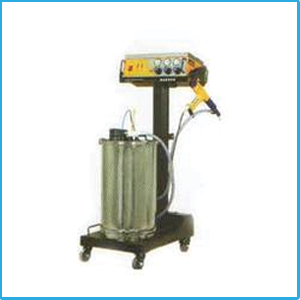

Electrostatic Powder Coating Equipment
Statfield make magnum series is having higher trnsfer efficiency,its star nozzle allows powder to reach at difficult to reach areas.
After sales service is almost nil as it proves to be trouble free equipment.

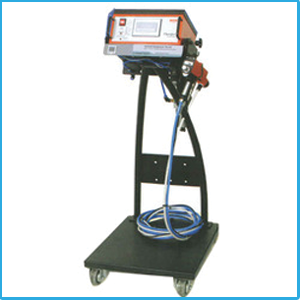

Electrostatic Liquid Paint Spray Painting Equipment
Suitable for conductive jobs. Mostly inside the painting booth. Job is positively earthed,paint is charged at tip of the electrostatic gun. Due to oppsite charges paint get attracted from the sides. Hard to rich areas & certain amount of backside. Tranfer efficiency of this gun is around 75%. Approximate 30% paint can be saved.
Air Brush Spray Painting Guns
Air Brush Spray Painting Gun Is widely used by artists in studio,for idol small painting work, for small touch up work, for spray marking purpose.
Air Brush Spray Guns
This is dual action trigger gun. Needle is madeup of SS parts, packings are eflon so that it can compatible with strong solvents. Air Brush Gun provides fine spray painting application,widely used by professional Artists. It is used for fine marking, Automobile design work, Idol fine lineup paintings, Tattoo paintings, Body tanning/painting, Helmate painting purpose.
| Technical Specification | ||
| Model | TSC7CC | TSC22CC |
| Max. Pressure. | 40 psi | 50 psi |
| Nozzle | 0.3 mm | 0.5 mm |
| Cup Capacity | 7.00 cc(metal) | 22.00 cc(glass jar) |
Spray Gun Front
We are one of the preeminent trades and suppliers of superior quality range of Spray Guns, which are highly appreciated by our clients due to the precise dimensions and robust construction. Designed in compliance with international quality standards, these spray guns are manufactured by our vendors using high quality raw material. User friendly, compact design and light in weight, these spray guns are known for high durability and excellent performance.
(a) High transfer efficiency, results in paint saving.
(b) Less pollution, cleaner work environment.
(c) Comply towards, voc regulation norms.
(d) Low overspray & low bounce back of paint.
(e) Superior automisation at low air pressure.
(f) Light weight gun, compact for easy maneuverability.
(g) Smooth & soft trigger, reduced operator fatigue.
(h) Stainless steel needle & nozzle.
(i) Compatible with water born material
