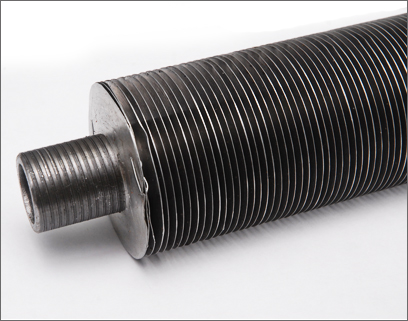

Continuous Spiral ‘G’ Type Fins
The strip is tension wound into a machined groove over the base tube material. This ensures maximum heat transfer at high temperature.
Maximum operating Temperature - 450o C:
| a) Fin Material | Aluminum / Carbon Steel |
| Fin Height | 1/2’’ to 5/8’’ (12.7 mm to 15.87 mm) |
| Fin Pitch | 8fins / inch to 11 fins/ inch (316 fins/meter to 433 fins/meter) |
| b) Base Tube Diameter | 3/4’’ to 2” (19.05 mm to 50.8 mm) |
| Tube Material | Carbon Steel / Stainless Steel |
Application : More specifically used in Air Cooled Exchangers OR Condensers.
