Profile Types

Galvalume Coated / Bare Galvalume / GI Colour Coated / Polycarbonate / FRP

Profile Type	Supply Width(MM)	Effective Width(MM)

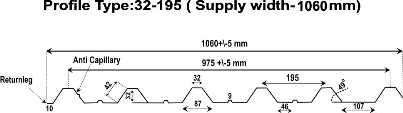

32 - 195	1060	975
28 - 353	1127	1060
32 - 200	1060	1000

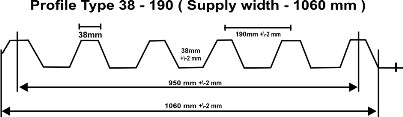

38 - 190	1060	950

Decking Sheets

Profile Discription:-
Supply Width: - 840 mm.
Effective Width: - 790 mm.
Depth: - 44 mm.
Pitch: - 130 mm.
Thickness:- 1 mm.

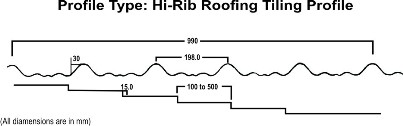

Tile Profile

Profile Discription
Supply Width: - 1090 mm.
Effective Width: - 990 mm.
Tile Depth: - 15 mm.
Tile Pitch: - 150 - 500 mm.
Pitch Center to Center: - 198 mm.
Thickness:- 0.30 mm to 0.60 mm.
