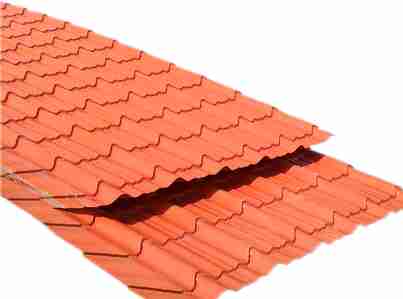

Tile Profile Sheets

Technical Specification for Tile Profile Sheets

• Multiple of Coatings:-
• Base Metal CRCA as per IS 513
• Strength: - 240 MPA
• Zinc Coat as per IS 277(120 GSM to 450 Gsm)
• Zinc - 98%, Alloys - 2%
• Colour coated Steel as per IS 14246 - 95/li>
• Epoxy Primer 5-7 microns
• Top Coat 20-22 microns (Arch. Polyester)
• Back Coat 6-8 microns (special alkyd backer / polyester)
• LDPE Guard film - Optional



Note: - We can provide you this material in any profile as
mentioned in profile type
