Sealant Dispenser

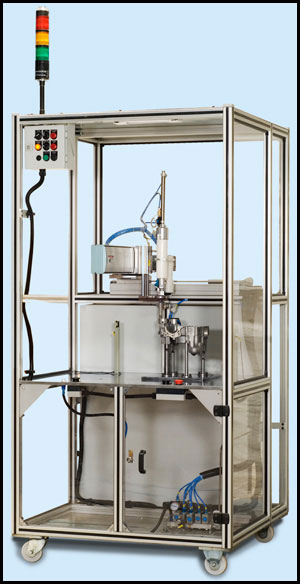

Robotic Sealant Gasket Machine
Form In Place Gasketing for Engine Components
Engine – Oil Pan, Oil Pump, Oil Seal Housing, Bed Plate, Cam Carrier Housing, Cylinder Head, Fly Wheel Housing, Cover Front, Housing Gear, Front Casing, Front Bearing Cover, Cylinder Block.
Gear Box – Gear Box Cover, Gear Box Housing, Shift Gear Assembly, Cover Transfer, Adaptor
| Types of gasketing | FIPG (Form In Place Gasketing) & CIPG (Cure In Place Gasketing) |
| Robot Sizes Available | 250 X 250 mm to 1050 X 650 mm |
| Application Methodology | 2 axes robot 3 axes robot 6 axes robot |
| Robot movement | Two / Three / Six Axes |
| Sealants Handled | Silicone: Single part Two Part Silicone RTV, Anaerobic, |
| Cycle Time | 30 – 60 sec excluding handling time depending upon the job sizes and profile geometr |
| Sealant packages handled | Pail can – 20 kg Cartridge – 300 & 850 ml Bag – 2 kg |
| Options available | Two drum system with Auto changeover facility Handling two guns for two different grades of RTV or one RTV and one Anaerobic sealant in the common machine. Vision Camera system for inspection of bead. |
