Gratings

Gratings – Honeycomb Type are available with us in numerals of grades and specifications. To meet all types of gratings requirement of clients, we develop Honeycomb Gratings with different dimensional varieties.

Perforated Cable Trays

Perforated Type are ideal to install large volume of Heavy duty power cables. Perforation make full free air rating of cable ,Higher current flow can be achieved at the same cross section.

Ladder Cable Trays

Cable Tray - Ladder Type are ideal to install large volume of Heavy duty power cables. Perforation make full free air rating of cable ,Higher current flow can be achieved at the same cross section.

Raceway

RACEWAY- STRAIGHT BOX TYPE

Straight type-Raceway are ideal to install large volume of data cable / power cable under the floor,through false floor or through false ceiling .raceways can be divided into part by putting partition to run power cable/data cable etc…in one cross section , partition can be use as a separator to avoid direct contacts of power cables / data cabel to each other.

Raceways can be manufactured in pre-gal finish(material as per IS-277),powder coating finish (powder coating finish as per IS-101) & in aluminium –commercial grade finish.

Width of the raceway is varies from 50,75,100,150,200,250,300 & 500 mm. Height varies from 25,40,50,75,100,125 mm & thikness varies from 1.2 ,1.6,2.00 mm.

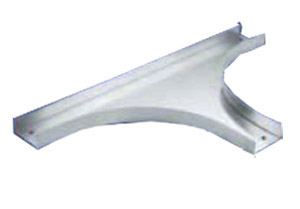

'T ' BEND

Tee bend –raceways are mainly use with combination with straight type raceway to route the data cable / power cable in 90 degree interval in the same plane,our product design allow the cable to route properly and chamfer of bend take care of cable not to worn out,peel off or get damage while laying of cable.

Tee bend Raceways- can be manufactured in pre-gal finish(material as per IS-277),powder coating finish (powder coating finish as per IS-101) & in aluminium –commercial grade finish.

Width of the horizontal bend raceway is varies from 50,75,100,150,200,250,300 & 500 mm. Height varies from 25,40,50,75,100,125 mm & thikness varies from 1.2 ,1.6,2.00 mm.

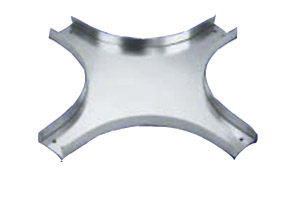

CROSS BEND

Cross bend –raceways are mainly use with combination with straight type raceway to route the data cable / power cable suitable for laying the cable horizontally which allows the cable to route properly in 90 degree interval in the same plane,our product design allow the cable to route properly and chamfer of bend take care of cable not to worn out,peel off or get damage while laying of cable.

cross bend Raceways- can be manufactured in pre-gal finish(material as per IS-277),powder coating finish (powder coating finish as per IS-101) & in aluminium –commercial grade finish.

Width of the horizontal bend raceway is varies from 50,75,100,150,200,250,300 & 500 mm. Height varies from 25,40,50,75,100,125 mm & thikness varies from 1.2 ,1.6,2.00 mm.

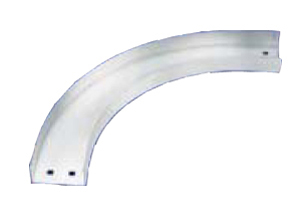

HORIZONTAL BEND

Horizontal bend –raceways are mainly use with combination with straight type raceway to route the data cable / power cable in 90 degree where two wall are conjoining,our product design allow the cable to route properly and chamfer of bend take care of cable not to worn out,peel off or get damage while laying of cable.

Horizontal bend Raceways- can be manufactured in pre-gal finish(material as per IS-277),powder coating finish (powder coating finish as per IS-101) & in aluminium –commercial grade finish.

Width of the horizontal bend raceway is varies from 50,75,100,150,200,250,300 & 500 mm. Height varies from 25,40,50,75,100,125 mm & thikness varies from 1.2 ,1.6,2.00 mm.

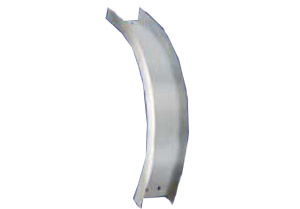

VERTICAL BEND OUTSIDE

vertical bend outside –raceways are mainly use with combination with box type raceway where the direction changes to a different plane

Vertical bend outside-raceway changes direction upward from the horizontal plane , our product design allow the cable to route properly and chamfer of bend take care of cabke not to worn out , peel off or get damage while laying of cable.

Vertical bend Raceways- can be manufactured in pre-gal finish(material as per IS-277),powder coating finish (powder coating finish as per IS-101)& in aluminium –commercial grade finish.

Width of the horizontal bend raceway is varies from 50,75,100,150,200,250,300 & 500 mm. Height varies from 25,40,50,75,100,125 mm & thikness varies from 1.2 ,1.6,2.00 mm.

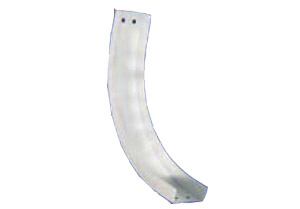

VERTICAL BEND INSIDE

Vertical bendinisde –raceways are mainly use with combination with box type raceway where the direction changes to a different plane.

Vertical bend inside-raceway changes direction downward from the horizontal plane , our product design allow the cable to route properly and chamfer of bend take care of not to worn out , peel off or get damage while laying of cable.

Vertical bend Raceways- can be manufactured in pre-gal finish(material as per IS-277),powder coating finish (powder coating finish as per IS-101)& in aluminium –commercial grade finish.

Width of the horizontal bend raceway is varies from 50,75,100,150,200,250,300 & 500 mm. Height varies from 25,40,50,75,100,125 mm & thikness varies from 1.2 ,1.6,2.00 mm.
