Features

Construction: Vasant MCB DBs are manufactured with high accuracy and high quality CRCA/SS304/SS316 steel sheets. These DBs undergoes through a seven tank chemical treatment to ensure anti rusting, super finishing and lifelong strength with good quality powder coating allowing an aseptically pleasing choice. DBs with double door features suits to industrial need with reversible door facility and having aesthetic look to suit your home decor.
Intallation: Our DBs are universal mounting type, can be either flush or wall mounted with removable top/bottom gland plates with adequate numbers of knockout for ease of installation and connectivity with conduits of all sizes.

Salient Features

• Option of manifold incomer like MCB, MCB+RCCB, Isolator and MCCB.

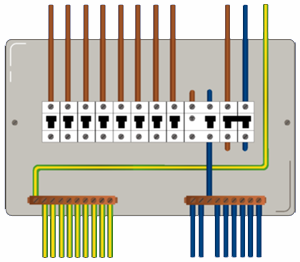

• Ready to use DBs, complete with Neutral Links, Earth Links, Bus Bar and inter connecting wires/links.
• Top- two foundation holes and bottom- two holes mounting the DB.
• Earth Bar for better earthling and for facilities individual earthling for each outgoing terminal.
• Gasket to ensure weather proof condition.

Technical Data

Applicable Standard
Busbar Nominal Rating
Bus Bar Short Circuit withstand
Rated Voltage
Maximum Incomer Rating
Maximum Outgoing Rating
Enclosure Steel Gauge
Paint Finish
Gland Plate

IS 13032/IS 8623
250A
16KA>
230V AC 50Hz
250A
63A
1.2/1.6mm
Epoxy Powder Coated
With knockouts

Maximum Cable Capacity

Neutral Bar
Earth Bar
Main Earth Termination

16Sqmm
16Sqmm
16Sqmm

In comer and Outgoings

MCB
RCCB
MCCB

25Sqmm
25Sqmm
Bus Bar

• Range of V-Line DBS based on incoming & outgoing configurations

• 4TTPDB-Three Phase Distribution Board
  (Vertical Arrangement)

• TPDB-Three Phase Distribution Board
  (Horizontal Arrangement)

• 7SDB-Phase Segregated Distribution Board
  (Horizontal Arrangement)

• TPDB-Three Phase Distribution Board
  (Vertical Arrangement)

• Plug and Socket Distribution Board
