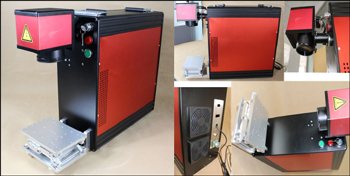

MODEL:KT-LF-P
LASER POWER OPTION:10W,15W,20W,30W,50W
Application:
Any metal and nonmetal materials,flexible paper label,industrial plastic, rubbers, powder-coating andelectroplate materials and so on.
Machine characteristics:
1. Able to mark all metal materials and some non-metallic materials
2. Adopting Germany IPG Fiber Laser Source. high precision,stable,long life
3. Able to mark a minimum line width of 0.02mm, minimum height of 0.2mm for English characters and depth of up to 1mm.
4. The fiber laser machine is currently the best choice for industries seeking deep and fine marking at a fast speed ,especially for small high precision marking.
5. Ergonomically designed. Can be placed on desktop, taking up a small working space.
6. Low power consumption of 500W. Highly recommended for factories and retail space.
7. WINDOWS based marking software. Able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used
graphic files, such as AI, PLT, DXF, BMP, JPEG. Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.
8. Can add rotary device for circle and round surface marking
Specification :
| Fiber laser marking machine | |
| Item no | KT-LF-P |
| Laser option | 10W,15W,20W,30W,50W) |
| Max marking speed | 9000mm/s |
| Laser wavelength | 1064nm |
| Beam quality(m2) | less than 1.8 square metres |
| Laser Q-switched frequency | 20kHz~200kHz |
| Optional marking area | 70mm×70mm/150mm×150mm |
| Marking depth | =2mm |
| Whole machine power | 500W |
| Min line width | 0.01mm |
| Repeatability Precision | ±0.0001mm |
| Power supply | AC 220V/50Hz/60HZ 10A |
| Cooling system | Air cooling |

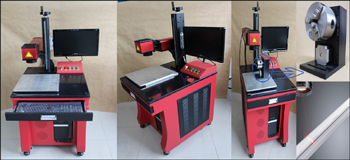

MODEL:KT-LF-D
LASER POWER OPTION:10W,15W,20W,30W,50W
Application:
Any metal and nonmetal materials,flexible paper label,industrial plastic, rubbers, powder-coating andelectroplate materials and so on.
Machine characteristics:
1.All in one structure with manual focusing system and user-friendly operation.
2.Laser beam qulity is much better than the traditional laser marking machine.
3.High electricitylaser exchange ratio, gross electricity consumption is less than 800W, which is 1/10 of the YAG’s
consumption.
4.Free maintenance, long working life, low consumption suitable for any working environment.
5.Fast marking speed, 2-3 times faster than the traditional marking machine
6.The marking software supports files such as Coreldraw, AutoCAD, Photoshop and PLT,PCX,DXF,BMP; SHX or TTF can be
directly adopted; the functions such as autocoding for sequence No., batch number, date, barcode and so on.
7.Portable machine.small size,light weight
8.Suitable for markings, engravings, and cuttings in vast majority of nonmetallic materials
9.Humanizing operating process and good stability of equipment operating
10.Equipment comprehensive performance is stable and has 24 hours of continuous working
ability
Specification :
| Fiber laser marking machine | |
| Item no | KT-LF-D |
| Laser option | 10W,15W,20W,30W,50W |
| Max marking speed | 9000mm/s |
| Laser wavelength | 1064nm |
| Beam quality(m2) | less than 1.4 square metres |
| Laser Q-switched frequency | 20kHz~200kHz |
| Standard marking area | 110mm×110mm |
| Optional marking area | 70mm×70mm/150mm×150mm/200mmx 200mm |
| Marking depth | =2mm |
| Whole machine power | 800W |
| Min line width | 0.01mm |
| Repeatability Precision | ±0.0001mm |
| Power supply | AC 220V/50Hz/60HZ 10A |
| Cooling system | Air cooling |

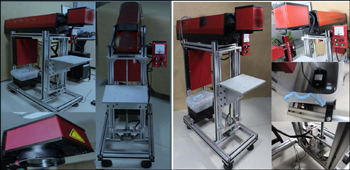

MODEL:KT-LY
LASER POWER OPTION:50W.75W
Application:
This machine can for metal and some compact non-metal marking
Machine characteristics:
1.Low power consumption, cost effective and long life, free maintenance.
2.High quality laser beam mode, high lightning conversion efficiency.
3.Adopting quality diode as laser light source, particularly suitable for long time operation.
4.Easy to install and operation, marking accuracy is good.
5.Integrated marking software with user-friendly design.
6.Various connection mode for optimizing to achieve automatically marking.
7.Versatile marking software is compatible with Coreldraw,AutoCAD,Photoshop.
8.Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar
code, 2D code, incrementing serial No., automatic jump codes, etc.
9.Integrate structure, anti-seismic, impact, small size,which is 1/4 of traditional DP laser machine
Specification :
| Model | KT-LY |
| Laser power | 50W 75W |
| Laser Wavelength | 1064nm |
| Cooling System | Water cooling |
| Beam quality(m2) | less than 2 |
| Laser Repetition Frequency | 200HZ-50KHZ |
| Marking Area | 100mm x 100mm (optional: 200mm x 200mm) 70mm x 70mm |
| Marking Depth | 70mm×70mm/150mm×150mm/200mmx 200mm |
| Marking depth | =0.3mm |
| Marking Speed | 0-7000mm/s |
| Min line width | 0.025mm |
| Repeatability Precision | ±0.001mm |
| Power consumption | =2KW |
| Electricity Source | 220V/50Hz 15A |

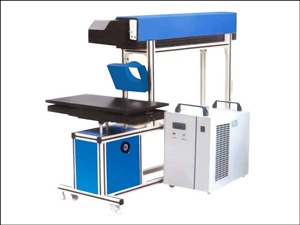

MODEL:KT-LC-G
LASER OPTION:40W,60W,80W,100W
Application:
A variety of nonmetal materials (leather, cloth, paper, bamboo, wood, acrylic, organic glass, resin, rubber, etc)
Widely used in bamboo wares, clothing, food&beverage fields, packaging, handicrafts, PCB, communications equipment,
instrument and electronic industries
Machine characteristics:
1. High power motor, stable and long life.
2. High precision, high speed, marking clear, strong permanent
3. High speed working table can be lifting up and down,suitable serval size product marking.
4. Integrated and compact structure, aluminium alloy working table.
5. Digital galvanometer
6. Versatile marking software is compatible with Coreldraw,AutoCAD,Photoshop.
7. Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar
code, 2D code, incrementing serial No., automatic jump codes, etc.
8. Excellent for water cooling system.
9. No pollution and consumption
Specification :
| Marking depth | 0.001~2mm(depends on your request) |
| laser wavelength | 10.64um |
| laser power | 40W 60W 80W 100Whm |
| using life | 2000 hours(over 2000houes just change a laser tube) |
| mark line width | 0.1mm/0.15mm/0.2mm/0.3mm |
| marking field | 110mmx110mm/160mm x 160mm/200x200mm |
| marking speed | 0-7000mm/s |
| repeating orientation precision | ±0.003mm |
| cooling style | water cooling |
| average power consumption | =0.6kw |
| power supply | 220v/50Hz 10A |
MODEL:KT-LC-M
LASER POWER OPTION:10W,30W,50W,100W,150W
Application:
A variety of nonmetal materials (leather, cloth, paper, bamboo, wood, acrylic, organic glass, resin, rubber, etc)
Widely used in bamboo wares, clothing, food&beverage fields, packaging, handicrafts, PCB, communications equipment,
instrument and electronic industries
Machine characteristics:
1. High power motor, stable and long life.
2. High precision, high speed, marking clear, strong permanent
3. High speed working table can be lifting up and down,suitable serval size product marking.
4. Integrated and compact structure, aluminium alloy working table
5. Digital galvanometer
6. Versatile marking software is compatible with Coreldraw,AutoCAD,Photoshop.
7. Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar
code, 2D code, incrementing serial No., automatic jump codes, etc.
8. Excellent for water cooling system.
9. No pollution and consumption
Specification :
| Marking depth | 0.001~2mm(depends on your request) |
| laser wavelength | 10.64um |
| laser power | 40W 60W 80W 100Whm |
| using life | 2000 hours(over 2000houes just change a laser tube) |
| mark line width | 0.1mm/0.15mm/0.2mm/0.3mm |
| marking field | 110mmx110mm/160mm x 160mm/200x200mm |
| marking speed | 0-7000mm/s |
| minimum character | 0.6mm |
| repeating orientation precision | ±0.003mm |
| cooling style | water cooling |
| average power consumption | =0.6kw |
| power supply | 220v/50Hz 10A |
