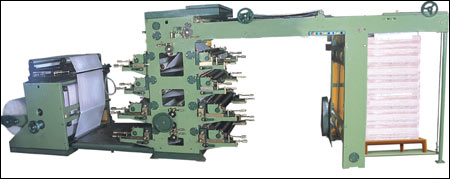

2-3-4 Colour Automatic Ruling Machine

Two feint ruling head on each side of the web with brass disc of 45 mm dia. (Standard Ruling Disc) and one or two flexo head for Margin line and delay & date or any other required Printing with rubber or Photo Polymer stereo.

AUTOMATIC RULING MACHINE

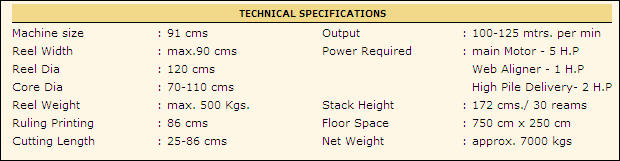

TECHNICAL SPECIFICATIONS



MAIN FEATURES

• Feint ruling in 2 colour.

• Can cut required size of paper by charging gears

• Static Eliminator to neutralize paper

• Jogging arrangement

• Counting provided

• Speed increase and decrease in possible

• Self loading reel stand

• No necessity of oiling in gears

• High Pile Delivery

• Ruling disc and Spacer are of standard machine

• Imported A.C Very Speed Control provided with inching facility

• Speed about 100 to 125 mtrs. per minute depending on quality of paper .

• Paper Sensors for auto stop.
