Grating Clamps

Grating Clamps

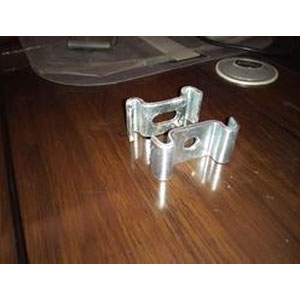

WE are manufacturer of Various types of clamps to be used for Grating erection purpose .Grating clamp set consist of Saddle clamp,W clamp & M8*40/50 /55/70 or as suits Fastner . Grating clamps are duly Hot dip galvanized & available in 30/33/35/38/40/50 mm CD as general requirements for Grating fitting to structure. Our clamps are Heavy duty in 2.5 mm tk W clamp & 2 mm tk Saddle clamp.in IS 513 grade steel sheet. IS 1367 std Fastners are Galvanized or Zn Electroplated can be supplied. Gratings are to be fitted to structure by one of following method 1]Gratings are to be fitted directly Welded to structure 2]Gratings can be fitted on Structure with W clamp & self tapping bolt by drilling on structure. 3]Gratings can be fitted on Structure with W clamp With saddle clamp by nutbolt tightening. BY use of grating's clamp , WE can easily Remove & assemble gratings to the structure With ease of operation.




Pregalvanized Grating clamp

Arc has developed Gratings clamps in pregalvanized for cost effective solution. Can be used for fitting Gratings where Sea atmosphere is not there. We recommend hot dip galvanized for high humidity sea atmosphere use.Pregalvanized grating clamps are more ecomical than Hdgalavanized where qty is huge.Please we will guide for use
