Carl F

D’LINE DESIGNER RAILING’S, DENMARK

Specification

We are pleased to introduce Carl F India pvt ltd, fully owned subsidiary of the Danish multinational and is dealing with various products such as Handrail & Balustrade, Door hardware, Bathroom accessories, Washroom panels, Modular Signs and Wardrobe & Cloakroom etc.

The Carl F handrail and balustrade is quite simply, a product master piece and is without doubt the best system in market. It has been developed and independently tested by BSI successfully, and certified to meet the performance criteria specified in British Standards Specification 6180: 1995

⇔ MATERIAL
⇔ STAINLESS STEEL, ENSURING :
• Durability
• Minimum maintenance
• Hygiene
• Anti-allergenic
• Ecologically friendly
⇔ CRITERIA

The following founds the basis of the range in stainless steel:
⇔ Clean design
⇔ Few geometric principles
⇔ Minimum maintenance
⇔ Functional, inter-related design
⇔ Uniform design
⇔ Form, Strength & Function

Product Range:-

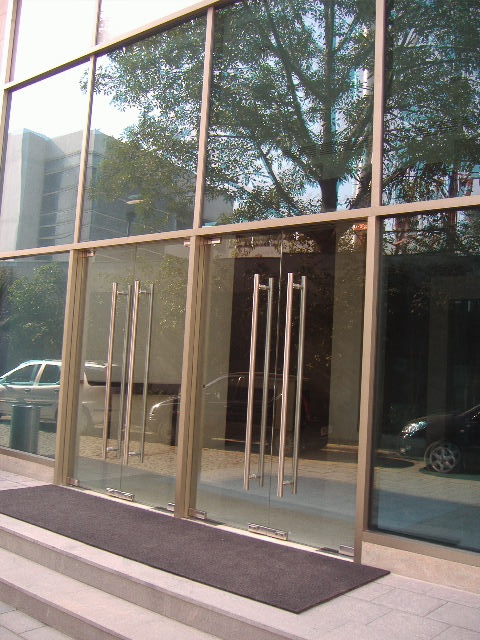

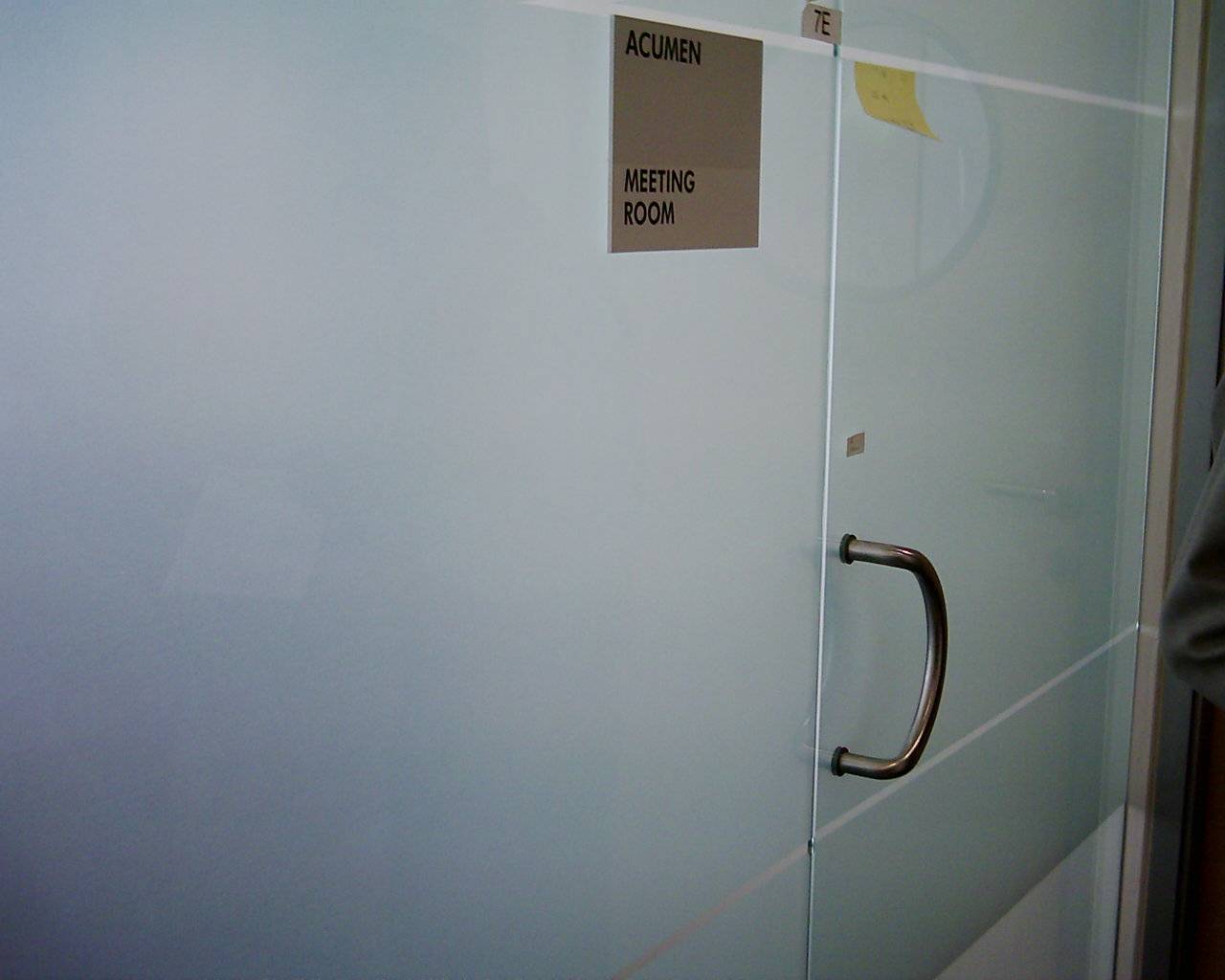

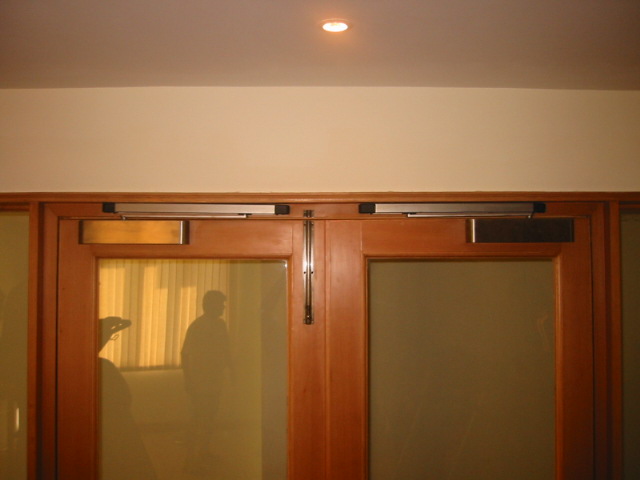

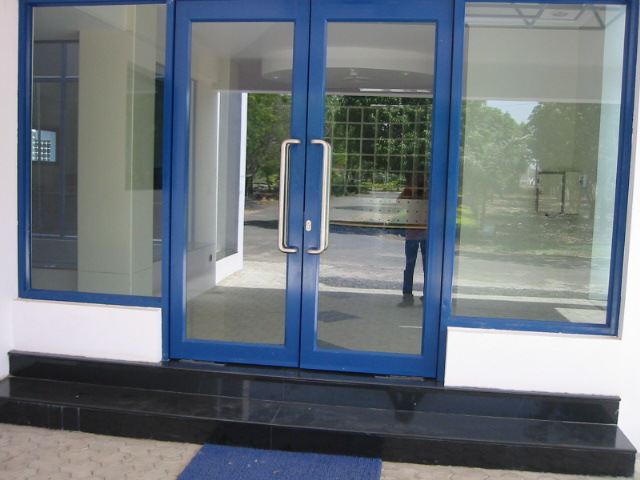

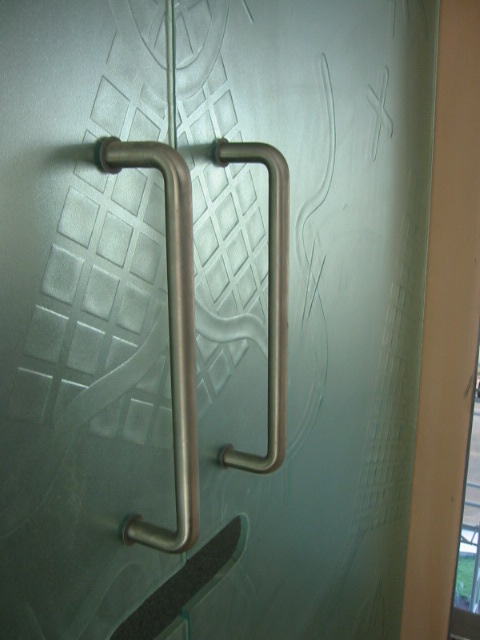

⇔ Door Hardware

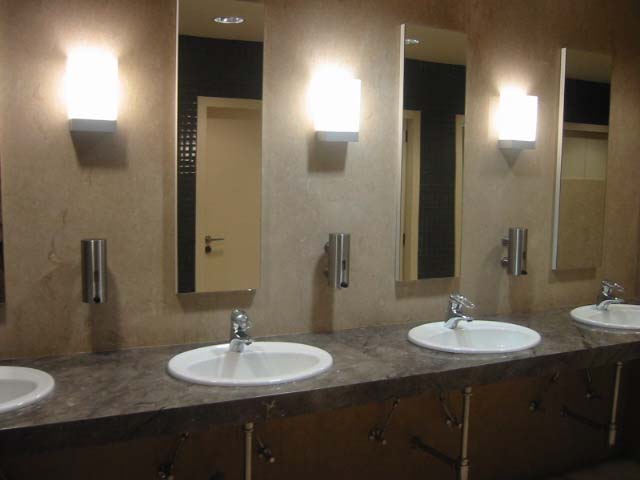

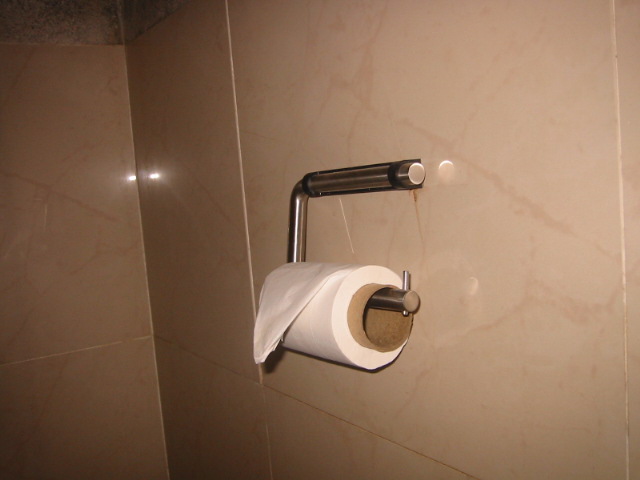

⇔ Bathroom Accessories
⇔ Washroom Sanitary Panels
⇔ Handrail & Balustrade Programme
⇔ Wardrobe & Cloakroom System

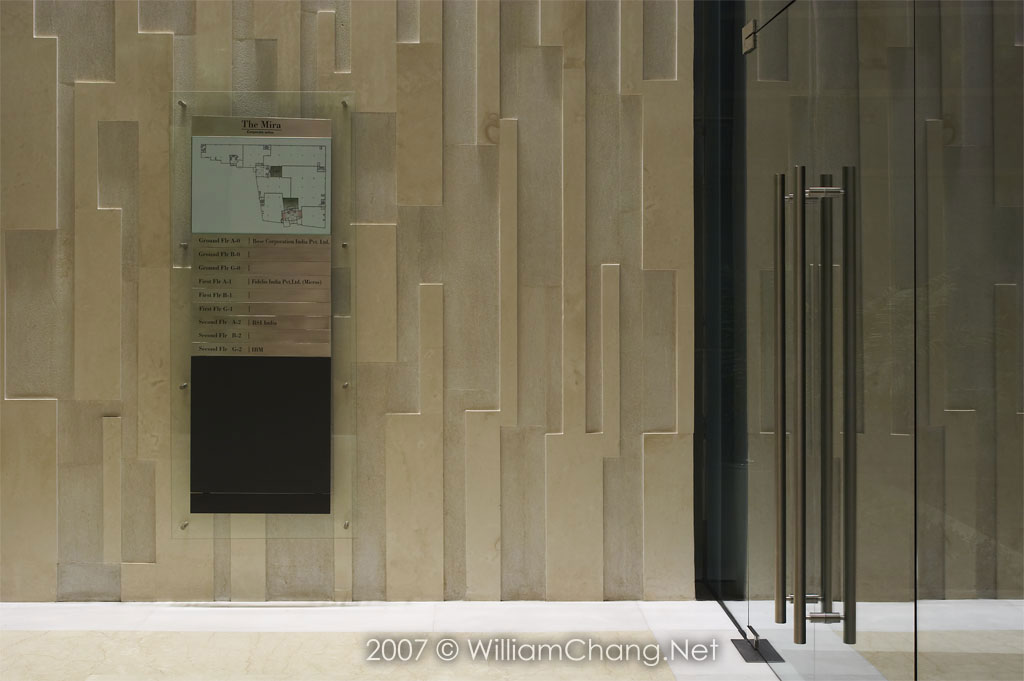

⇔ Modular Signs

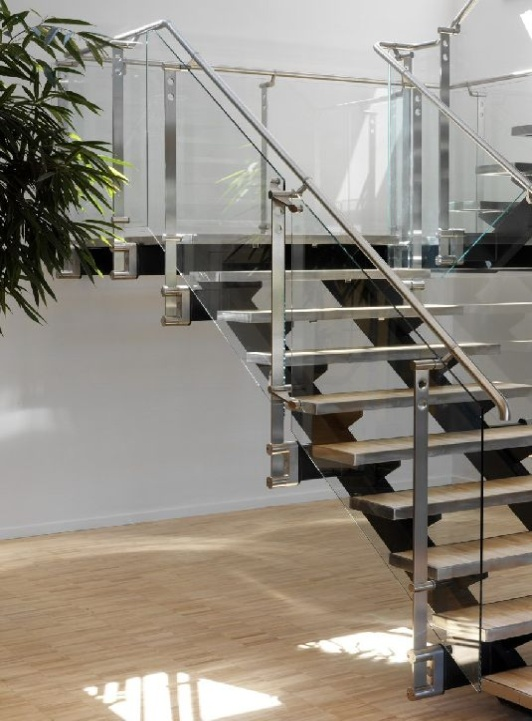

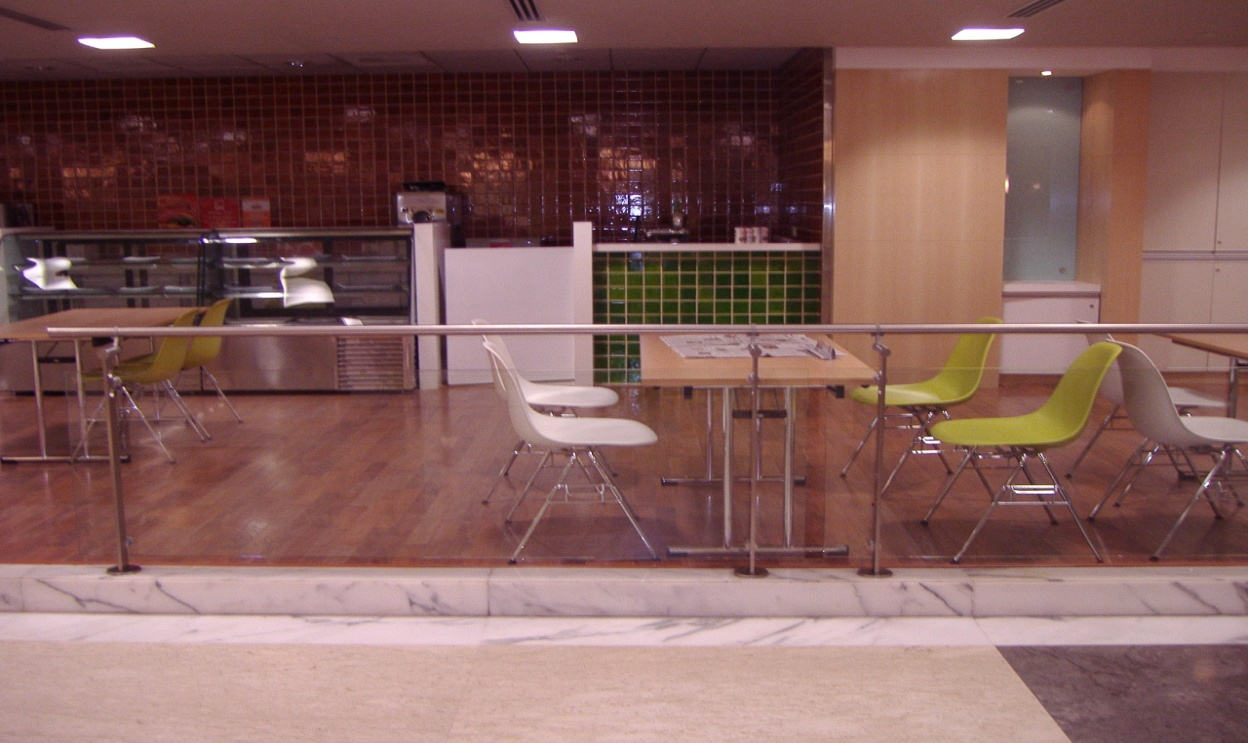

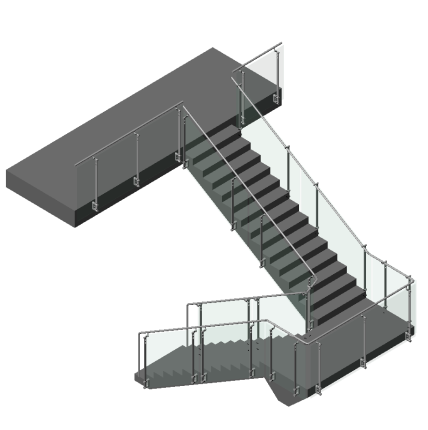

⇔ Spigot fixed handrail system

Supply and installation of stain finish stainless steel AISI 304 ss handrail and balustrade system having 38mm dia tube handrail(1.5mm gauge) connected with unified stem keys in bead blasted finish to 12X54 mm stain finish flat vertical member erected with chemical grout to be fixed on the top of stair case (Spigot Fixed) at max c/c distance of 1800mm having infill of 10-12mm toughened glass complete with all necessary bends and terminations.

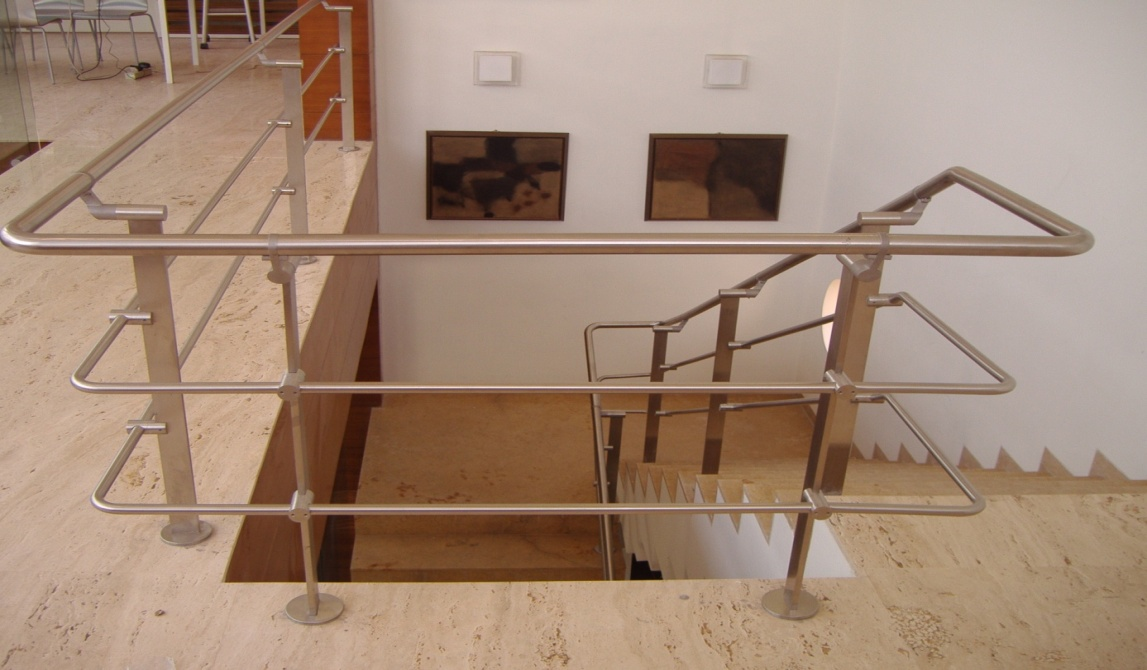

⇔ Spigot Fixed System with 2 Midrail

Supply and installation of stain finish stainless steel AISI 304 ss handrail and balustrade system having 38mm dia tube handrail(1.5mm gauge) connected with unified stem keys in bead blasted finish to 12X54 mm stain finish flat vertical member erected with chemical grout to be fixed on the top of stair case (Spigot Fixed) at max c/c distance of 1800mm with infill of three horizontal midrail of 22mm dia. complete with all necessary bends and terminations.

⇔ Wall Rail System With Secret Fixing

Supply and installation of satin finish stainless steel AISI 304 ss wall mounted system having 38mm dia tube rail with 1.5mm gauge connected with unified stem key in bead blast finish complete with all necessary bends and termination.

⇔ d line Handrail and Balustrade Programme

⇔ Totally weld free system
⇔ Pre-fabricated customized components
⇔ Higher grade of steel – anti corrosive
⇔ Simple and minimalist design – adapts to any staircase design
⇔ Uniform brushed finish
⇔ Engineered to precision – highly durable

⇔ Details of Components
⇔ Load bearing Uprights
⇔ Toprail lengths
⇔ End Terminations
⇔ Fixed Bends/Omnibend
⇔ Wall/Glass Brackets

⇔ Other Components of Handrail System ⇔ OMNI BEND
⇔ WALL MOUNTED HANDRAIL

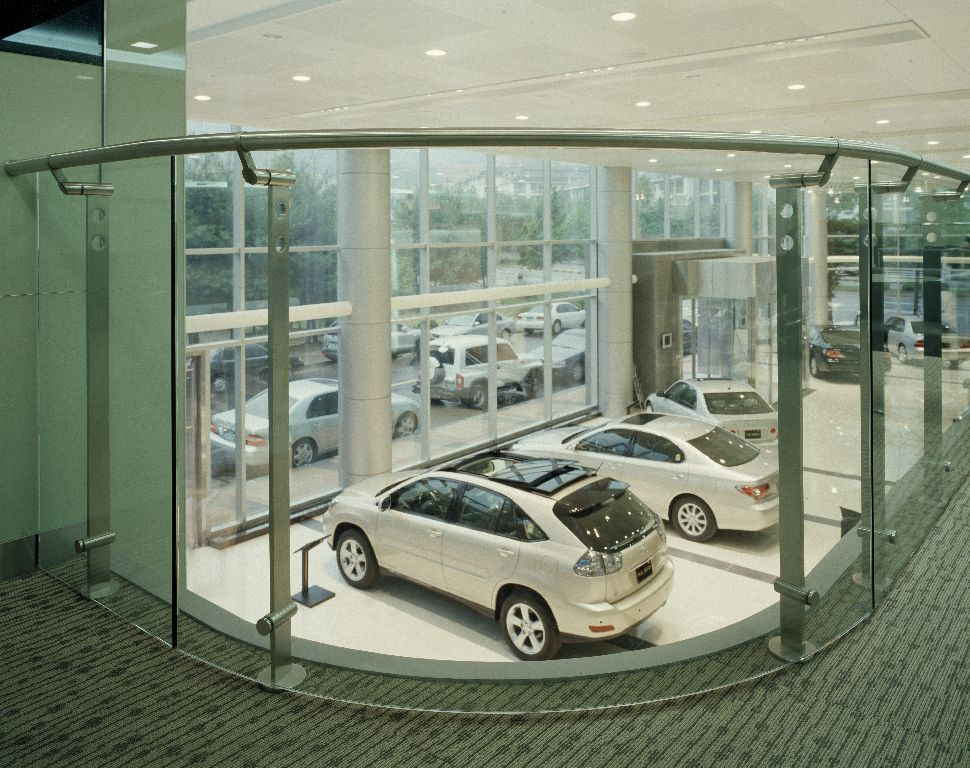

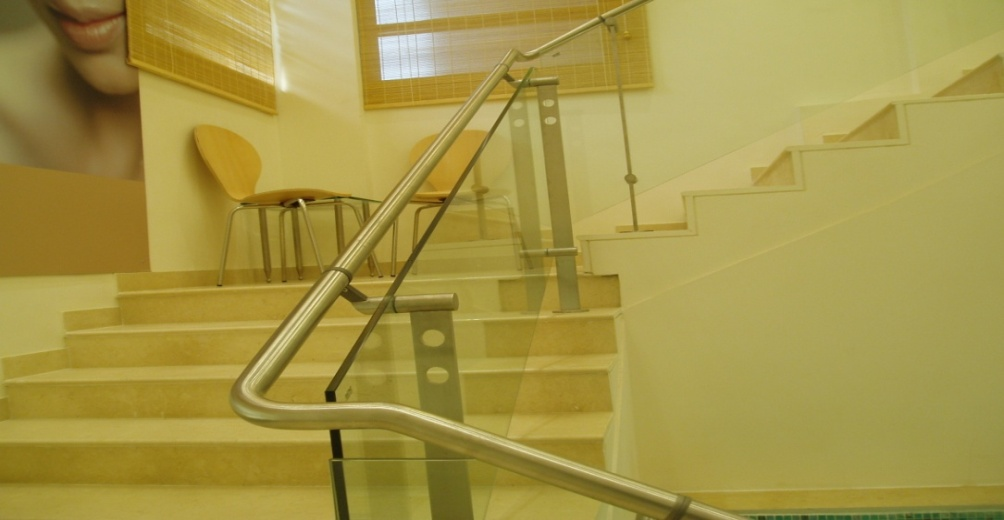

⇔ GLASS RAIL
⇔ TERMINATION
⇔ GLASS LINK

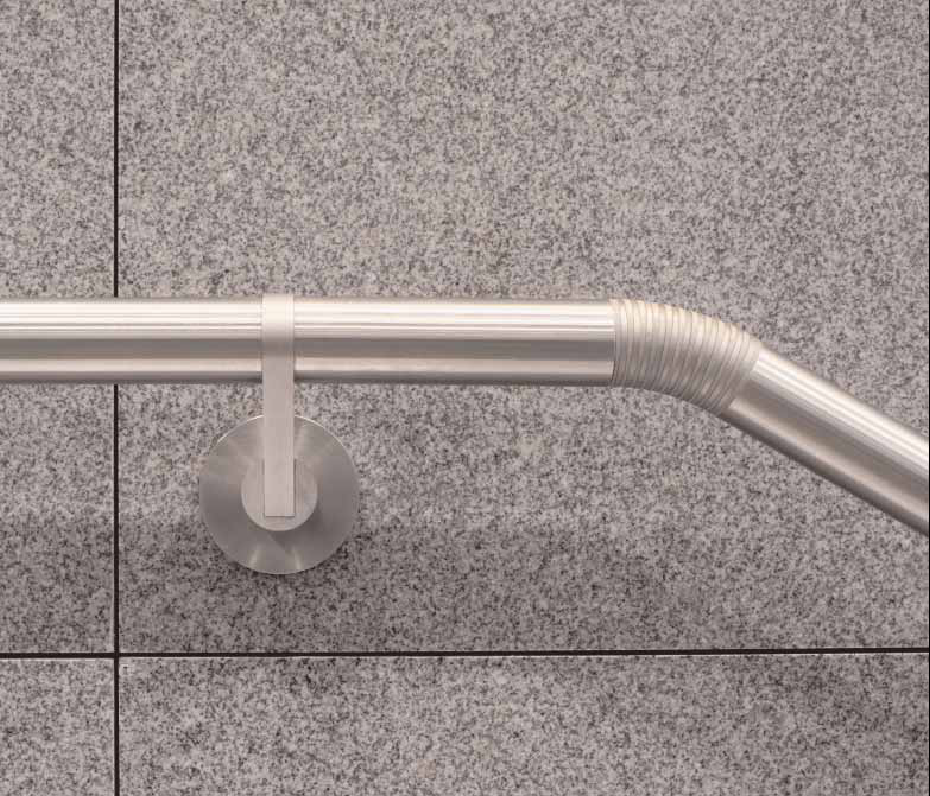

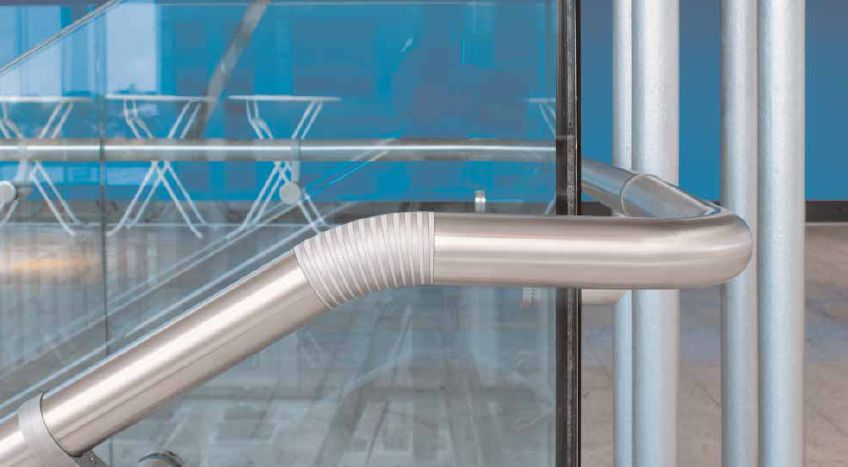

⇔ Omni Bend
A specialized component made up of a combination of steel and neoprene rings.The ability to adjust the angle (between 30 and 40 degrees) on site from a readily available component.

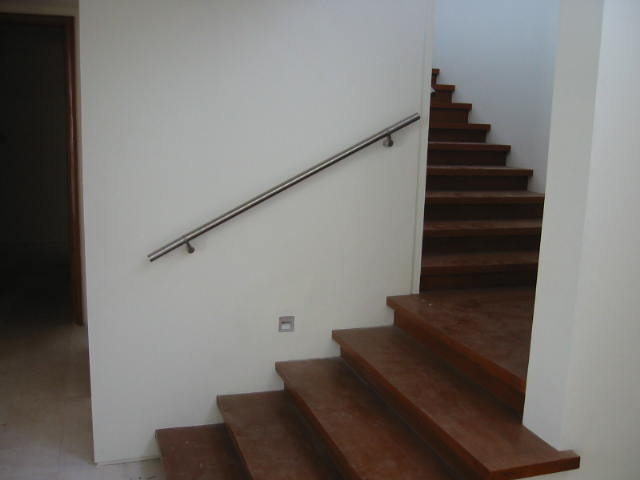

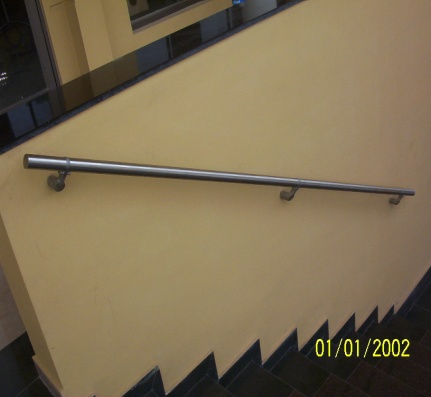

⇔ Wall Mounted Handrail.
Rosette Fixing
Secret Fixing

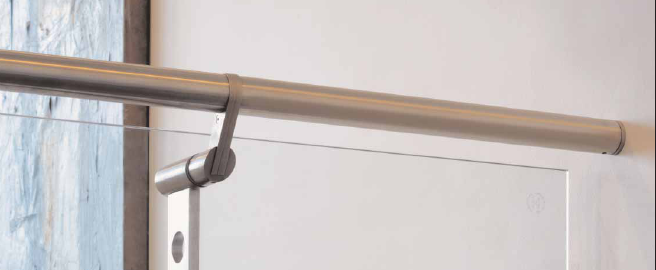

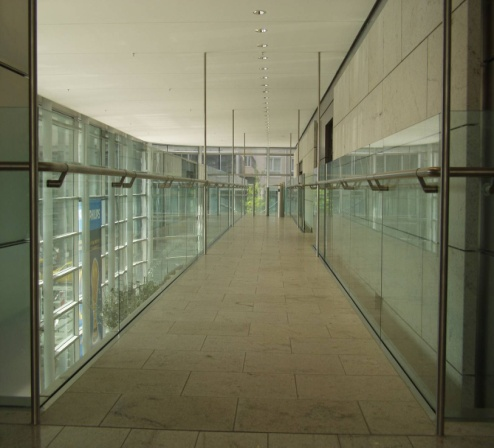

⇔ Glass Rail Short bracket: glass runs below the
handrail, providing sufficient space for the hand.

Long bracket: where glass continues above the handrail, space for the hand must be increased. Back-to-back rail: two brackets opposing each other connected by bolt through glass.

⇔ Termination
32 degree termination
Straight into wall
Straight termination
90 degree return to wall

⇔ Glass Link

upright acts as the support between 2 glass panels continuous glazing effect is maintained by minimizing the gap between 2 spider fixed panels, and also by allowing for combinations of spider panels & cantilevered uprights the spider fixing’s ability to rotate allows it to mount parallel to the angle of any staircase, resulting in fewer uprights per project.
