Centrifugal Fan
Manufacturer of a wide range of products which include dwdi centrifugal fan, inline centrifugal tube fan, ventilation centrifugal fan, centrifugal fan, backward curved centrifugal box fan and sisw centrifugal fan.
DWDI Centrifugal Fan
| Minimum Order Quantity | 1 Unit |
| Air Flow Rate/Volume Flow | Up to 200000 CFM |
| Pressure | Up to 2000 Pa |
| Motor Power | As required. |
| Wheel Diameter | Up to 1000 mm |
Specifications:
- Volume Flow: 430 m3/hr
- Fan Speed: 1450 rpm
- Motor Power: 0.6 hp
- Pressure: 130 mm
- Wheel Diameter: 200 mm
Inline Centrifugal Tube Fan
Offered by us, this Inline Centrifugal Tube Fan is installed in intermediate ceilings of various commercial buildings for ventilation purposes. In compliance with the specifications and requirements provided by the clients, these boxes can be customized. In addition to this, these zero boxes are available with us at reasonable prices.
Ventilation Centrifugal Fan
Specifications:
- Power: 0.55kw-55kw
- Air Flow: 7312-67457CMH
- Voltage: 390V/3 Phase

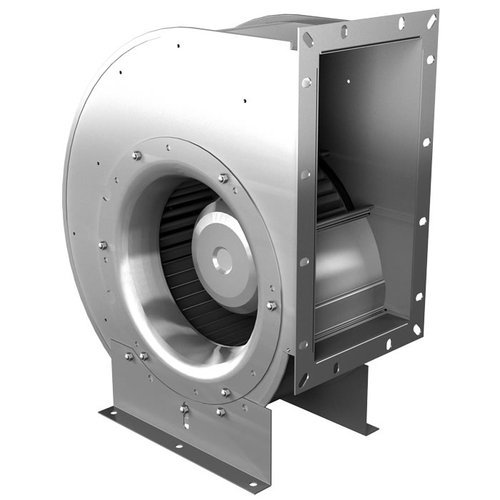

Centrifugal Fan
Specifications:
- Air Flow Rate/Volume Flow: 400 m3/hr
- Fan Speed: 1460 rpm
- Motor Power: 0.6 hp
- Pressure: 150 mm
- Wheel Diameter: 200 mm

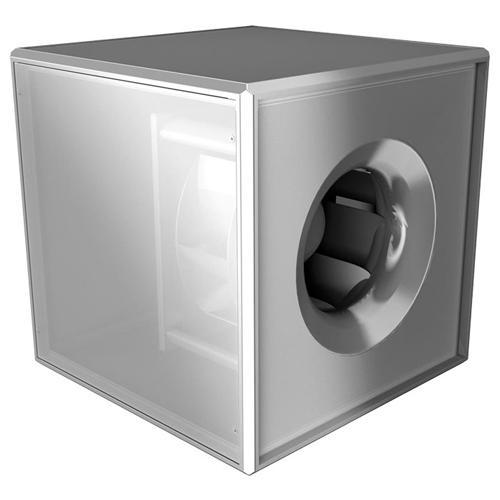

Backward Curved Centrifugal Box Fan
Specifications:
- Revolution: 400-2240rpm
- Pressure: 220-2734PA
- Size: Customized

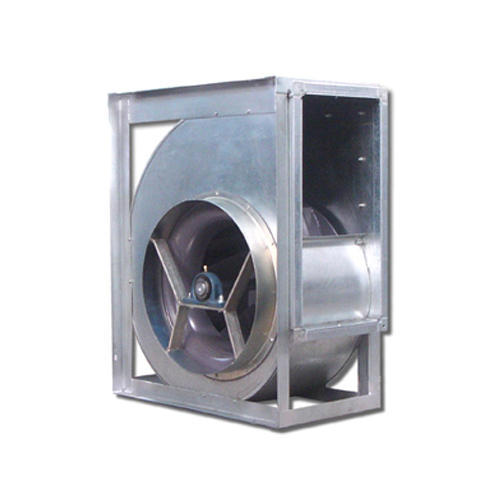

SISW Centrifugal Fan
Specifications :
- Range: 108 mm to 200 mm
- Power Supply: 3 phase/1 phase/EC
- Motor: 2 Pole/4 Pole/Speed Controllable
Centrifugal Duct Fan
| Power | .25kW - 12 kW |
| Capacity(Air Volume) | 0 CFM - 75000 CFM |
| Impeller Size | 10 in - 50 in (1270 mm) |

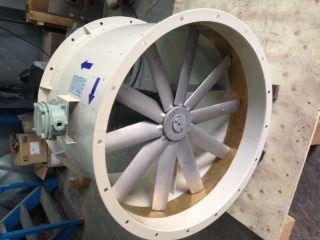

Tube Axial Fan
Product details :
| Type | Wall Mounted Fan, V-Belt Driven Units, Duct Mounted Fan |
| Power | 0.25 kW up to 65 kW |
| Capacity(Air Volume) | Up to 75000 CFM |
| Impeller Size | 10 inch up to 60 inch |
EBM Ziehl Abegg Axial fan
Properties:
- High volume flow rates, high efficiency, low acoustic emissions due to special three-dimensional blade geometry with diagonal air discharge, reduced rotational tone.
- Ideally suited for low-pressure applications in confined installation spaces. Entire series meets ErP 2015 including in AC technology.
