Profile Axial Impellers
Manufacturer of a wide range of products which include reversible profile axial impeller, fixed pitch airfoil profile axial impeller, variable airfoil profile axial impeller, aluminum sickle profile axial impeller and silent right profile axial impeller.

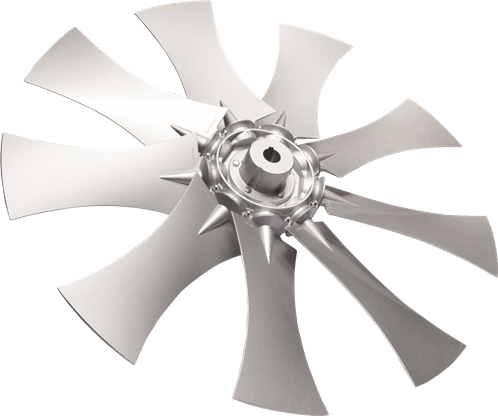

Reversible Profile Axial Impeller
Reversible Profile Axial Impeller are manufactured assembling reversible profile blades made of aluminum, with a light aluminum alloy hub. The impellers are thought to be employed in applications with high temperatures (i.e. drying rooms). The impellers are available in configurations with 5/9/12/16 blades both for clockwise and anti- clockwise rotation. Blades are available with setting angles ranging from 20° to 45° and producing a reversible air flow.

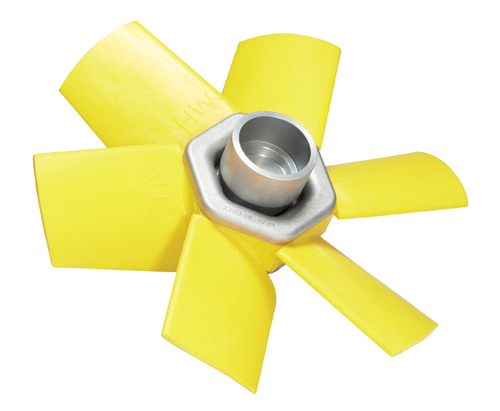

Fixed Pitch Airfoil Profile Axial Impeller
Fixed Pitch Airfoil Profile Axial Impeller are manufactured assembling airfoil profile blades made of a variety of materials, with a light aluminum alloy hub. These impellers employed in applications that require the highest rotation speeds. The impellers are available in configurations with 6/8/10/14/20 blades both for clockwise and anti- clockwise rotation. Blades are available in three models: long (L), short (P) and grande.

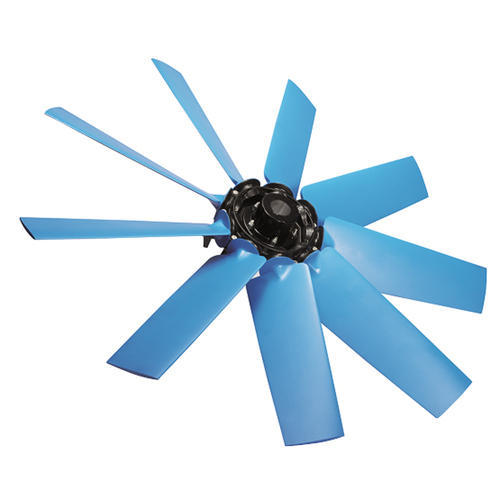

Variable Airfoil Profile Axial Impeller
Specifications:
- Variable airfoil profile axial impellers are configurable with 5/9/12/16 blades.
- Blades are available in two versions: mini (M) or big (B) with right or left setting angles ranging from 20° to 50°.

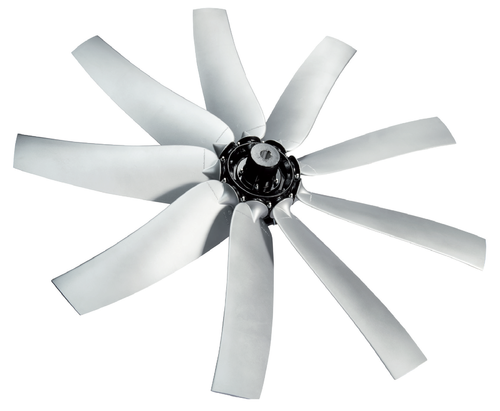

Aluminum Sickle Profile Axial Impeller
- Aluminium Axial Flow Fans with airfoil blades designed to produce higher airflow rates while ensuring high efficiency and low noise levels that can be employed in high-temperature and corrosive environments.
- Fans are customised and selected using selection software that provides all performance details such as Airflow, Static Pressure, Power, Speed, Efficiency, Noise and Size.
- Performance is assured as fans have been tested in AMCA 210/07 wind tunnel and comply with the requirements of EU Directive 2015 on Energy Efficiency.

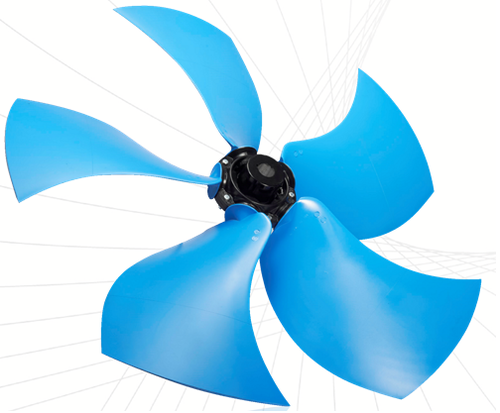

Silent Right Profile Axial Impeller
Specifications:
- Silent right profile axial impellers are configurable with 3/5/6/8/9 sickle-right blades.
- Blades are available with setting angles ranging from 20° to 38,5°.
Bifurcated Axial Flow Fan
Specifications :
- Air Flow Rate/Volume Flow: 300 m3/hr
- Fan Speed: 1450 rpm
- Motor Power: 0.7 hp
- Pressure: 100 mm
- Wheel Diameter: 200 mm
Roof Axial Flow Fan
Specifications :
- Material: Iron
- Blade Material: Stainless Steel
- Size: Customized
Tube Axial Fan
Product details :
| Type | Wall Mounted Fan, V-Belt Driven Units, Duct Mounted Fan |
| Power | 0.25 kW up to 65 kW |
| Capacity(Air Volume) | Up to 75000 CFM |
| Impeller Size | 10 inch up to 60 inch |
EBM Ziehl Abegg Axial fan
Properties:
- High volume flow rates, high efficiency, low acoustic emissions due to special three-dimensional blade geometry with diagonal air discharge, reduced rotational tone.
- Ideally suited for low-pressure applications in confined installation spaces. Entire series meets ErP 2015 including in AC technology.
