D. P. Pulveriser Industries

Gyroscreen

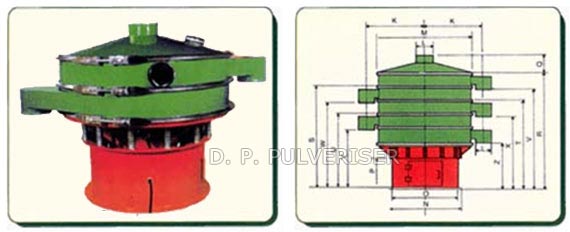

The D.P. Vibro Sifter is a circular highly efficient gyratory screen with adjustable multiplane three component mechanical vibration. The heart of Vibro Sifter is the robust specially made vibrator motor which is designed for long trouble free continuous operation. The vibrator motor has double extended shaft fitted at each end with variable eccentric weight. Motor is rigidly mounted on circular vibrating table on rugged springs. Number of interchangeable spacing frames having discharge outlets along with tensions rings fitted with screens cloth can be mounted one on top of the other, on the Vibrating table with the help of clamp rings. D.P. Vibro Sifter is the most efficient screening machine for any dry and wet sieving application.

Applications

Aspirin Abrasives Biscuit Bulk Drugs Calcined Petroleum Coke Cattle Feed Ceramic Industry a) Ceramic Slip b) Glazed Section c) Ceramic Powder d) Insulator Slip

Chemicals & Pharmaceuticals Cellulose Powder Detergent Powder Edible Oil Effluent Fertilizer Food Industry Gelatin Metal Powder / Shot & Grits Ossein Polymer Resin / Plastic Pallets / Powder Paper a) Fibre Recovery b) Black Liquor c) Milk of Lime & Coating d) Chemical

Additives Preparation Plant Paints Pharmaceuticals Refractory Sand & Glass Starch Slurry & Powder Spices Sulphur Powder Sodium Sulphate Tea Table Salt and many more

MODEL	Z	Y	X	W	V	U	T	S	R	Q	P	O	N	M	L	K	MOTOR H.P.
D.P. V.S.-600	387	501	616	730	845	635	749	863	978	114	305	451	501	622	152	400	0.5
D.P. V.S.-750	387	501	616	730	845	635	749	863	978	114	305	559	635	762	152	490	0.5
D.P. V.S.-900	422	587	701	815	929	724	838	952	1066	140	280	574	680	925	152	571	0.5
D.P. V.S.-1200	565	711	882	1054	1225	901	1073	1245	1416	209	381	831	921	1206	203	743	1.5
D.P. V.S.-1500	565	775	984	1194	1403	1016	1225	1435	1645	171	381	1010	1118	1524	203	914	1.5
D.P. V.S.-1800	568	816	1063	1311	1559	1083	1330	1570	1825	190	279	1168	1264	1803	203	1035	2
