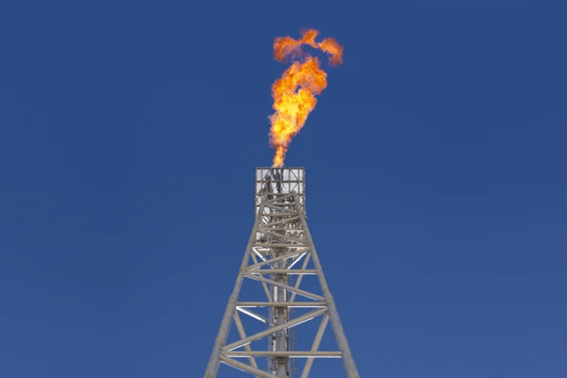

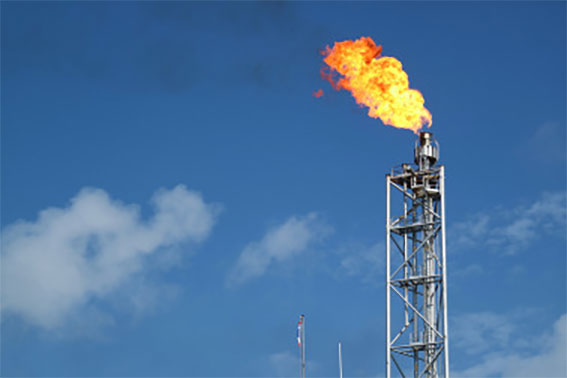

Our steam-assisted flares are used in applications where heavier waste gases need to be disposed and high-pressure steam is readily available on site. Our proprietary flare designs offer exceptional smokeless performance, lower radiation levels, and less noise than typical air-assisted flares.

This type of flare utilizes the a steam injection to be mixed with gas at the flare tip in order to reduce smoke emission and radiation levels. Steam in high temperature will convert incomplete gas product such as CO to CO2. For cold countries, steam-assisted type is suitable for freezing protection.

We offers both single-point and multi-point gas-assisted flares for smokeless burning of low- pressure, heavy hydrocarbons. Our designs deliver stable burning, high-destruction efficiency and low radiation levels wherever steam or air is unavailable.

Some gases contains composition which has low lower heating value (LHV), affects the gas is difficult to be burnt as minimum lower heating value of gas should be 200 Btu/scf. To increase the LHV, a gas injection into the flame through manifold or jets sprayer is required. For high pressure gas, its kinetic energy can be used to entrain additional air by piping it separately to the flare tip.

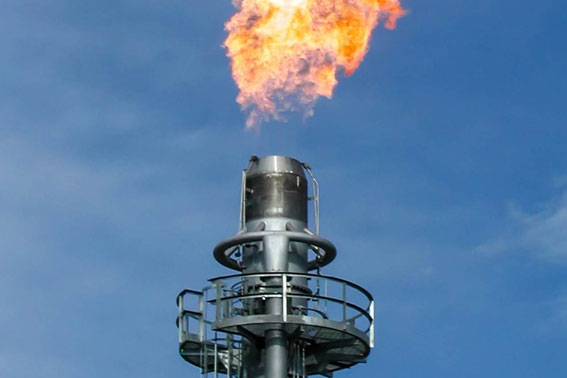

In one compact design, two types of gases which are low pressure gas and high pressure gas are burnt in a single flare tip. Designed with integrated turbulence swirl plates, it improves the mixing between high pressure gas and low pressure gas with surrounding air to create a turbulence effect inside the flame. Final goal in this process is complete combustion with smokeless flame.

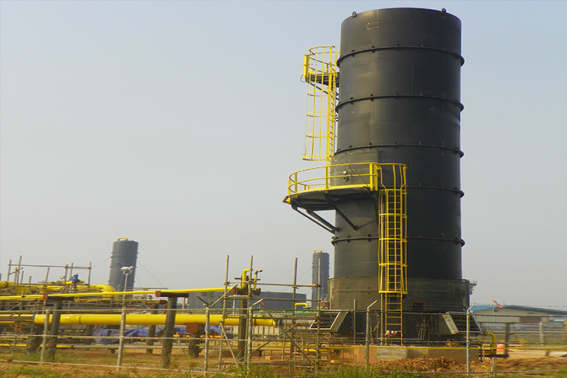

Enclosed ground flare hide its flame inside the enclosed wall which is lined with ceramic fibre refractory to greatly reduce the high temperature burning, noise and luminosity. Very suitable for facility near residential or local environmental regulations do not permit to have a visible flame or when there is no adequate space to install another type of flare.

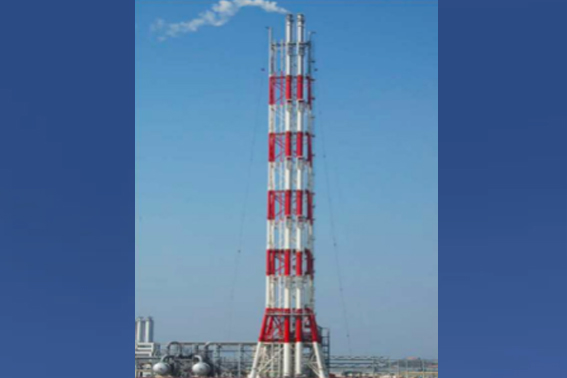

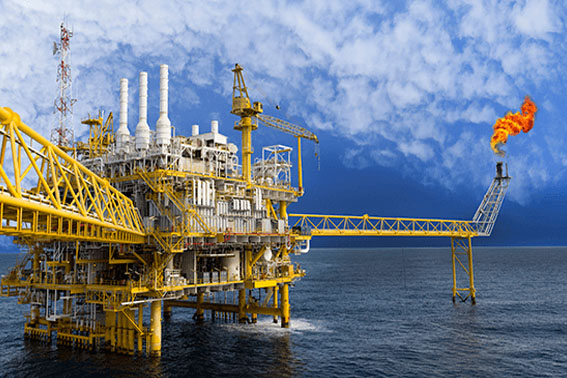

Any type of elevated flare can be applicable for offshore facilities. It considers the material of flare tip from high resistant of sour condition (corrosivity) and weather condition.

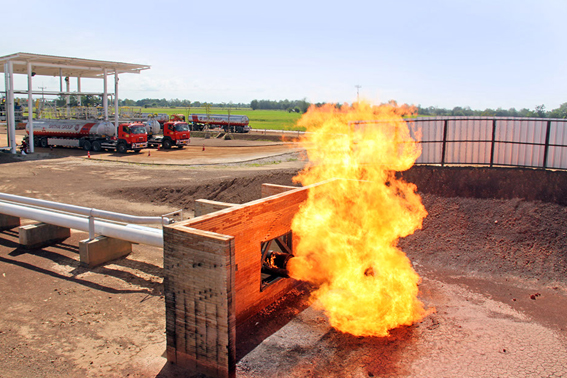

A pit flare is installed only for onshore application and generally intermittent operation. It is generally used to burn gas with some liquid content.

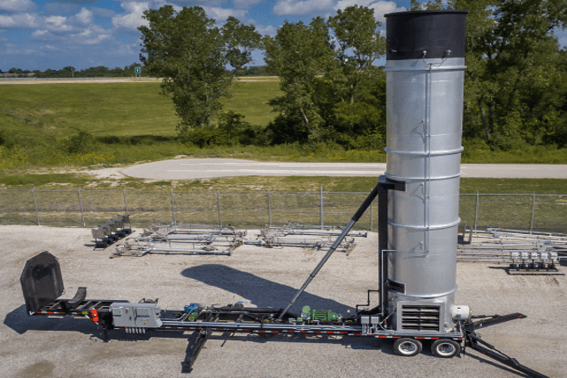

A portable flare is normally used for temporary flaring, for instance well test burner. This flare can be mobilized from one area to others. Portable flare is consist of Stack and ignition system that complete with battery and LPG bottles that mounted on a trailer. This stack can be self-supporting or guyed wire.

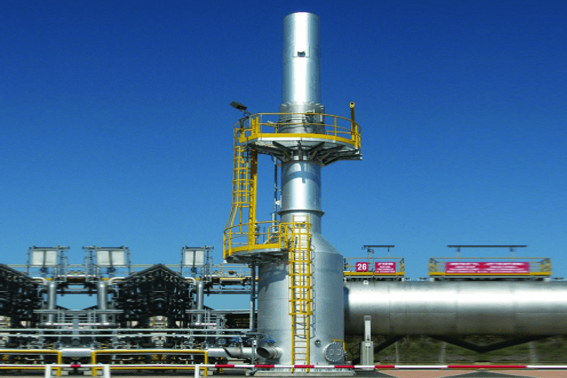

The waste gas is only vented without flaring. Some safety devices accessories are usually included for vent system such as Flame arrestor, CO2 Snuffing system and spray system with deluge valve.

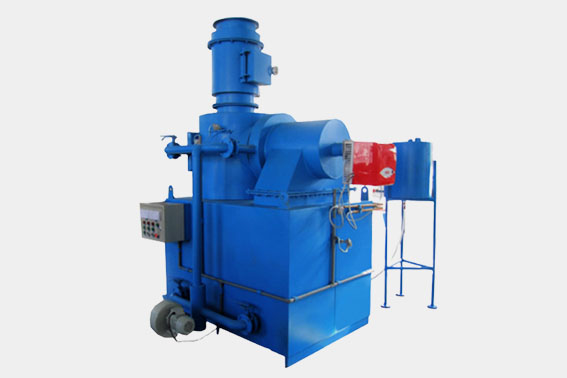

Medical Waste / Hazardous Waste incinerators are designed safely to dispose of harmful materials at high temperatures. The process ensures no harmful gases are released into the environment. Medical waste incinerators have scrubbers to clean the polluted gases and other particulate matter. Provided with two separate High-pressure burners for primary and secondary chambers for achieving temperatures of 800±500C and 1050±500C respectively to ensure complete combustion to achieve the emissions norms as per CPCB.

Capacity : 25 to 300 Kg/hr
