Ring Joint Gaskets Equatorial Engineering Pvt. Ltd. manufactures Ring Joint Gaskets in different solid metal types including soft iron, low carbon steel, stainless steel, inconel, monel and other alloys.
- Suitable for oil or gas pipeline flanges, pressure vessels, high speed joint faces
- Style R is divided into various types
- Style RX is an improvement of style R in pressure resistance.
- Style BX is a gasket with high pressure resistant up to 15,000 PSI
- Made to conform to API 6A standard
R - Oval Type : Standard ring joint gasket with oval cross section and designed for flanges with standard ring joint grooves. Available from R11 to R95.
R - Octagonal : Standard ring joint gasket with octagonal Type cross-section and designed for flanges with standard ring joint grooves. Interchangeable with oval section gaskets on modern octagonal grooved flanges. Available from R11 to R95.
RX - Type : An adaptation of the standard R type gasket and designed to fit the same groove design. It is interchangeable with standard R type gaskets. Available from RX20 to RX215.
BX - Type : Specially designed for very high pressures. All BX gaskets incorporate a pressure balance hole to ensure equalization of pressure which may get trapped in the grooves. It is only suited for API BX flanges and grooves. Available from BX150 to BX172.

Bonnet Gasket

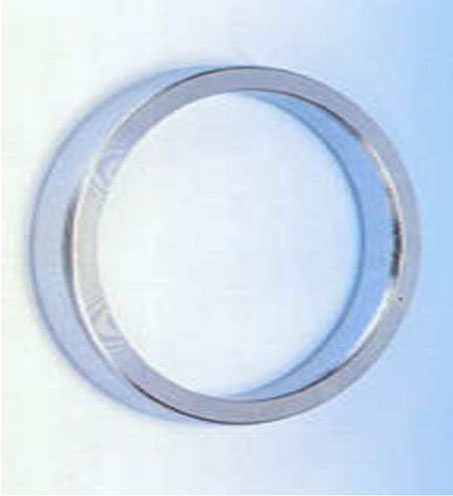

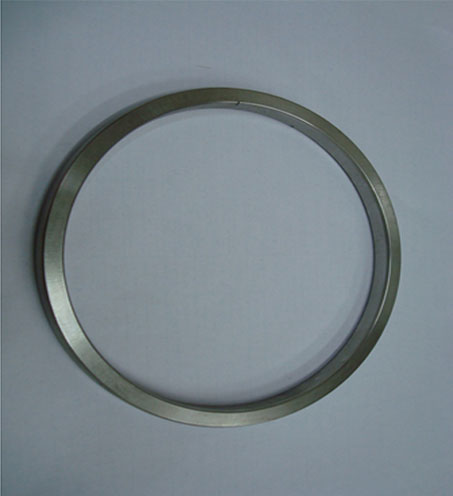

BX Ring

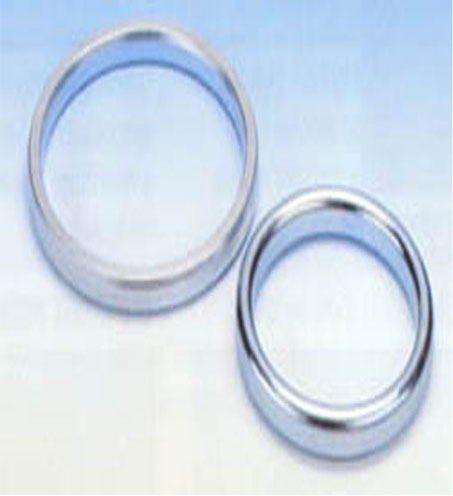

R Oval & Octa Rings

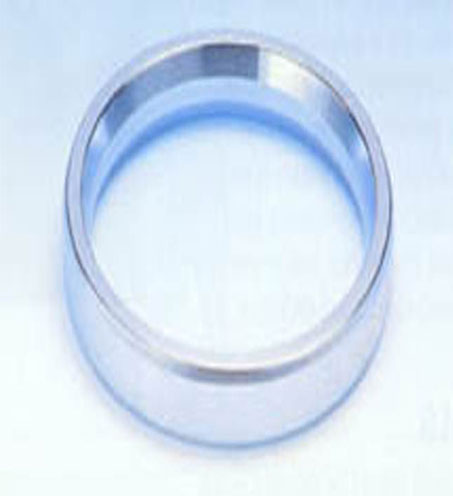

RX Ring

Flanges and Allied Products
Flanges | ||
Types Of Flanges | SORF, WNRF, BLRF, SWRF, LJFF | |
Sizes Of Flanges | NB sizes of pipe 15 nb to 1000 nb mm | |
Standards | ASA, DIN, BS, JS, IS | |
Mateiral | CS, A.105, A515, A516, SS 304, SS 316, LF1, LF2, A.182 GR F1, F2, F11 | |
Working Temperature | 0C | |
Working Pressure | kg / sq.cm. | |
Working Condition | Water, Steam, Chemical, Air, Gases etc. |
Orifice Assemblies | ||
Size | 15mm to 1000mm NB with orifice id calculation from given data. | |
Material | c.s / a 105/ ss 304 / ss 316 |
Thermowell Pockets | ||
Size | 15 npt to 25 npt | |
Length | 100 mm to 500 mm long | |
Material | c.s / a 105 / ss 304 / ss 316 with gas-cut & handware nut, bolt, washer etc. |

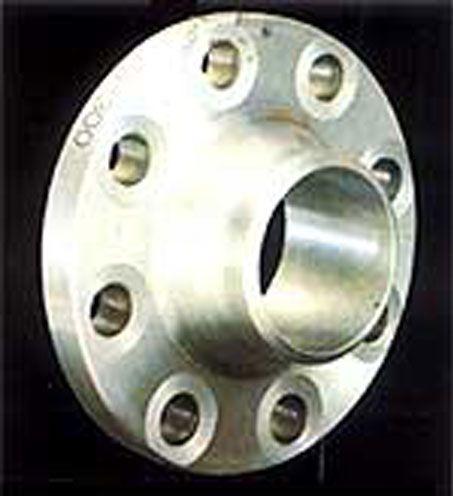

Welding Neck Flange

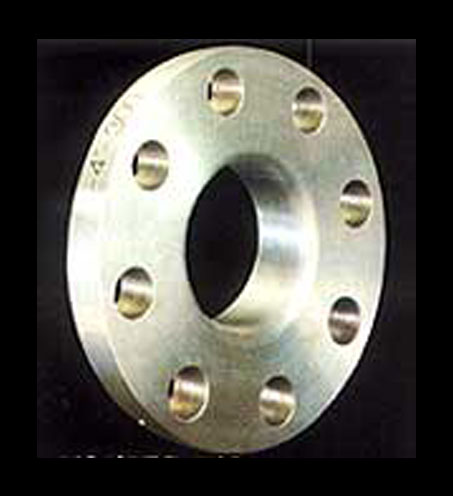

Slip-On Flange

Lap Joint Flange

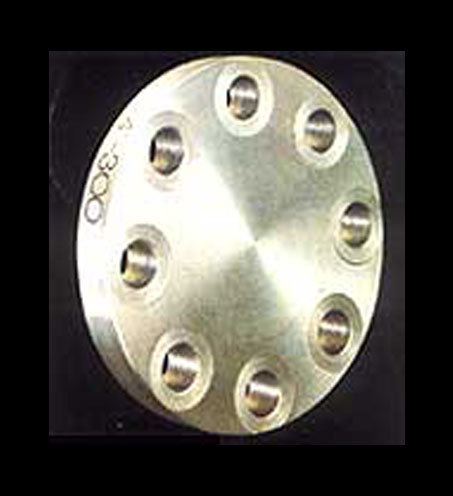

Blind Flange

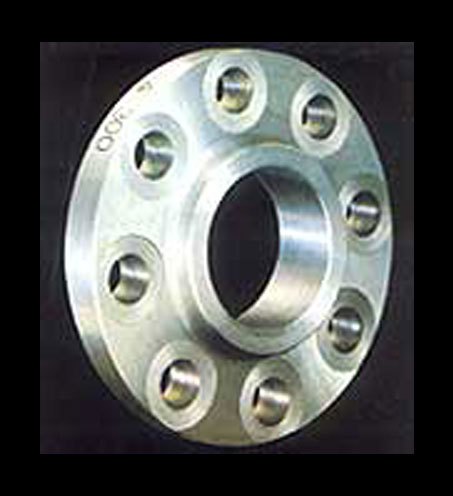

Socket Welding Flange

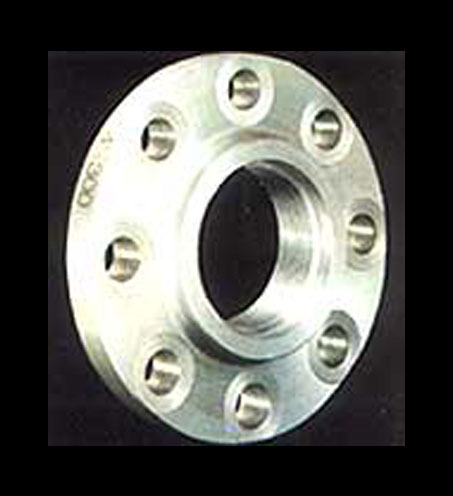

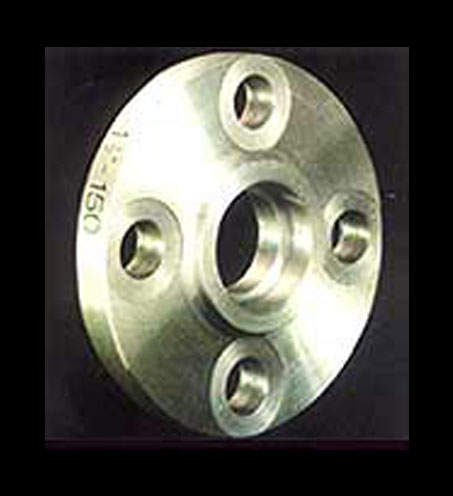

Threaded Flange
