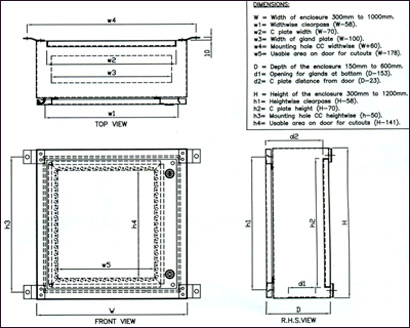

Welded Body Design ( Wall Mountable WM ) :
Features For Welded Body Design :
1) This is suitable for smaller size enclosures
2) Better ingrace protection (Upto IP-67).
Parts of enclosure :
01) |
Welded body It's body is closed from sides, rear top & bottom in 1.5/2.00 thk folded CRCA sheet |
02) |
Base It is optional |
03) |
Front single /split / partial doors Made in 2.00 thk CRCA sheet. With support frame, sheet metal special hinges, cam lock. |
04) |
Gland Plate At top or bottom in 2.00 thk CRCA |
05) |
Component mounting plate in 2.00/3.00 as per requirement. - Size (Width -55) x (Height - 55) Mounting on welded bushes at rearmost Position. |
06) |
Wall mounting bracket 4 no's wall mounting bracket (in 3.00 thk) per enclosures |
07) |
19'' Rack DIN standard 19” equipments mounting arrangement is possible. |
08) |
19"Swing frames Suitable for 19” mounting in width and height as per requirement. |
| Width | Depth | Height | Base |
| 300mm ~ 800mm ( pitch of 100mm ) | 200mm ~ 600mm ( pitch of 50mm ) | 300mm ~ 1200mm ( pitch of 100mm ) | As per requirement |
There is access from front only as sides and top are closed.
