Modular Frame Structures Design :

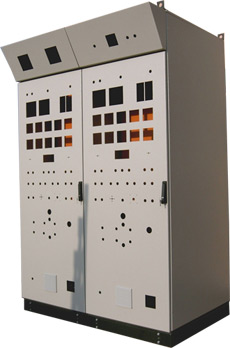

MODULAR FRAME STRUCTURE (Design : MFS)
Features :
1) Strongest design avaliable in enclosures
2) Perfect Strength to Weight ratio
3) Better ingress Protrction (Up to IP - 55)
4) Multi color Powder coating is possible.
Sub-assemblies :
01) |
Modular frame structure Made of 3.00 thk folded CRCA sheet with vertical and horizontal (depth wise) indexing holes dia 9 & dia 4.2 in 12.5mm pitch. |
02) |
Base Made in 3.00 thk folded sheet with removable front and rear covers in 2.00 thk. Base cover can be slotted for ventilation from bottom (if required). |
03) |
Door Front & rear single door / split doors / partial doors in 2.00 thk CRCA sheet. With support channels, sheet metal special hinges, 3/4 point handle lock. |
04) |
Cover Front fixed bolted cover in 2.00 thk for instrumentation panels in place of door. When door not necessary at rear screwed cover in 1.5 thk. |
05) |
Bottom gland plates in varying combination in 2.00 thk folded CRCA sheet. Slotted or perforated bottom covers in 1.5 thk (for ventilation from bottom if required). |
06) |
Side Cover Screwed side covers in 1.5 thk CRCA sheet |
07) |
Top cover in 1.5 thk CRCA bolted in lifting eye bolts itself. |
08) |
Component mounting plate in 2.00/3.00 as per requirement. - Size (Width -100) x (Height - 100) with depth wise adjustable mounting in 25 pitch. - Partial component mounting plates in any size within maximum size range. |
09) |
Inter panel separator Made in 1.5 thk when two or more enclosures joined together. |
10) |
Lifting eye bolts Hooks are used for normal weight and heavy duty angles for bigger enclosures. |
11) |
19'' Rack DIN standard 19” equipments mounting arrangement is possible. |
12) |
19"Swing frames suitable for 19” mounting in width and height as per requirement. |

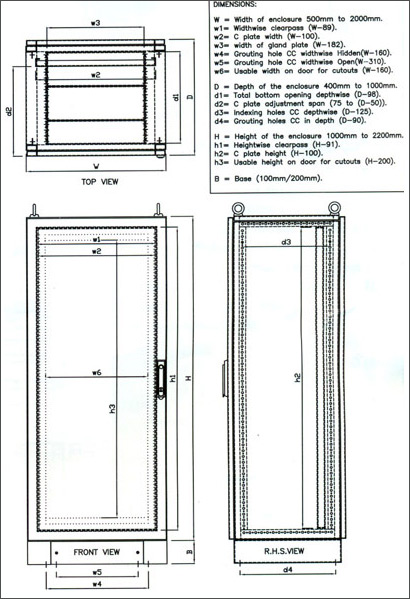

Standard Size
| Width | Depth | Height | Base |
| 500mm ~ 2000mm ( pitch of 100mm ) | 400mm ~ 1000mm ( pitch of 50mm ) | 1000mm ~ 2200mm ( pitch of 100mm ) | 75mm, 100mm 150mm and 200mm |
* Upto 1000mm width single door Can be Provide above 1000mm Split doors are recommended
* Upto 1200mm width single welded structure Can be Provide & for widh above 1000 mm two separate structures or twin welded together structure is recommended
