OxiMax Chlorine Dioxide (ClO2) Generation Systems

What we offer

OxiMax Chlorine Dioxide Generation System are state of the art technology in reactor design and Chlorine Dioxide dosing.one advantage that Chlorine Dioxide is dosed immediately after the reaction chamber. this avoids the requirement for a ClO2 storage container and consequent losses.Presser dosing of ClO2 solution is another advantage, no need for a ejector to pull the chemical through, results in lower running costs through reduced water and power. Main application

• Portable water Disinfection in water works
• Medical waste water disinfecton and municipal waste water disinfection
• Cryptosporidium and Giardia inactivation in public swimming pools
• Industrial cooling water disinfection in power plants and chemical plants
• Hotels, restaurants, family appliances and utensils disinfection
• Beverage plants, food plants pipeline, breweries and equipment disinfection
• Aquaculture water disinfection
• Livestock farms disinfection
• Industrial circulating cooling water disinfection
• Hospitals
• Chemical Manufacturers
• Spa bath
• Off-shore rigs

How does the OxiMax Chlorine Dioxide (ClO2) Generation System work?

The generation system does two chemicals sodium chlorite and hydrochloric acid through two metering pumps to reactor which produces high-purity ClO2 solution,which is than mixed with dilution water The ClO2 output can be controlled by adjusting the stroke length of chemical pumps manually or automatically controlled via 4-20 mA singal from ow residual analyzer.


Advantages of technology

Multiple security measures
Low Chemical Level Alarms with generator stop. Chemical Interrupt Alarms with generator stop.

Special reactor
Material-The reactor is made of titanium alloy material for complete chemical resistance.

Central controller
The LCD Display screen provides operational data s and menus for adjustment of set points and parameters. it is simple to operate and easy to configure and fault-find.

High quality appearance
The PVC enclosure creates clean lines and great looking system.when wall mounted, there are no plant items visible or available for operators to touch are adjust.

ClO2-highly cost-effective environment-friendly bio-oxide
Excellent alternative to chlorine bleche ozone and bromine.

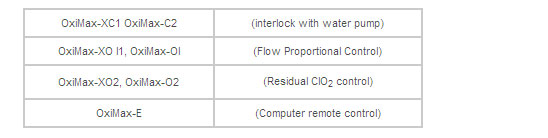

Multiple control options
Various methods of control can be utilized to achieve the desire disinfection result at the lowest cost. Multiple point dosing
By joining the generator with a dilution pipe system and dilution tanks(with level switches), one generator can be used to produce a dilute chlorine dioxide solution suitable for multiple point dosing.

Broad applicability
Chlorine dioxide can be applied to many and varied applications where disinfection is required and where chlorine is currently considered to be ineffective. Typical applications include potable water, industrial process water, cooling tower disinfection for inactivation of Legionella and bio films, thermal water storage systems and CIP sanitization in the food industry.

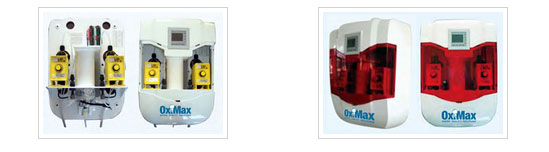

The easy to install OxiMax-X wall-mounted CI02 generator
This is a simple wall mounted generator which can be installed on the wall of any room. You can be up and running in a few hours with minimal downtime and interruption. Low capital cost means quick payback.

Customized systems available
We can design and build a system to meet your needs if standard models do not quite meet your requirements. Works over wide PH range

Works over wide PH range
