• Job holding fixture
• Pneumatics and accessories
• Air dryer system
• Tecna marposs controller
• PLC based controller panel
• Printer
• Spray gun with magnetic holder
• Ray sensor for poka yoke system
• Fabrication structure

• Data logging system incorporated
• Full colour touch screen display
• Quick test
• Pinch test
• Waveform measurement display
• Accuracy and precision validation with master leak testing
• Auto volume calculation

APPLICATION :

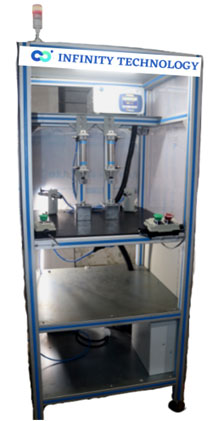

• For quick change coupling connecters
• Having 100 test program
• Accuracy 0.5%
• Having graphical representation
• Store last 20 test cycle data

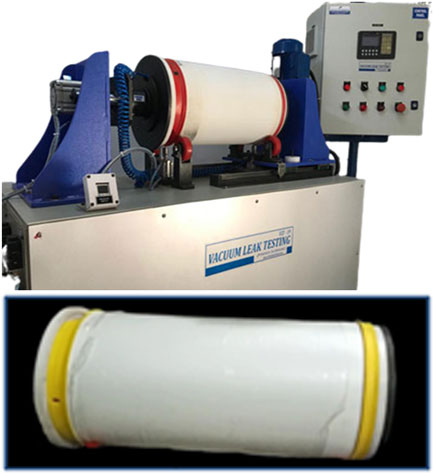

• Barrel is mounting on roller support horizontally.
• One side of barrel is fixed and another side is clamping by pneumatic mechanism.
• Sliding mechanism will be done with the help by LM rail and lead screw for variable job.
• We provide welding testing mechanism including pneumatic cylinder and roller which is providing define force on testing area(lead Joint).
• We are giving air pressure from the barrel cap up to define pressure then we gives revolving action up to one revolution to the barrel with help of gearbox motor arrangement.
• Pressure switch indicator shows the inside pressure from barrel and after one revolution if there is pressure drop alarm indicates failure in testing.

• Rigid and robust structure

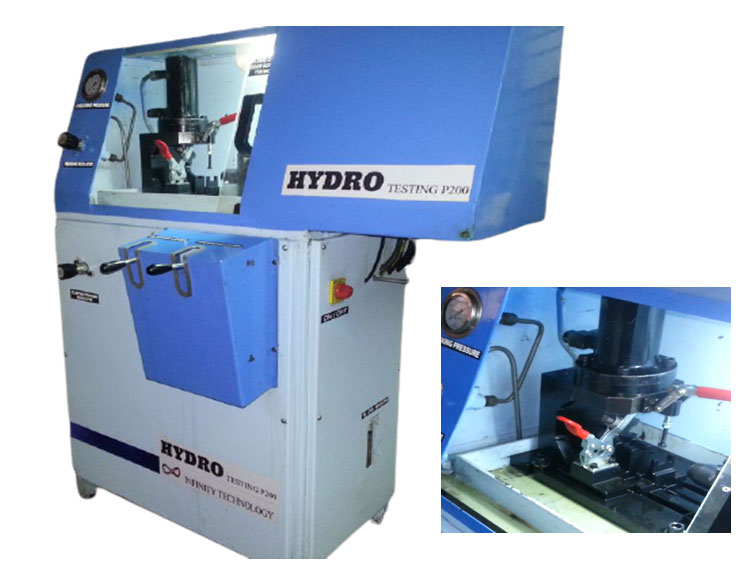

• Hydraulic power pack
• SS water tank 50 ltr tank capacity
• 2 hp motor
• Hydraulic cylinder 100 bor 100 mm strock
• Hose piping
• Fix metal tubing piping
• Job holding fixture
• Hydro air pneumatic pump
• Structure canopy
• Presser gauge, regulating valve

• Data logging system incorporated
• Full colour touch screen display
• Quick test
• Pinch test
• Waveform measurement display
• Accuracy and precision validation with master leak testing
• Auto volume calculation
