Anaerobic Adhesive Dispensing

  • Anaerobic adhesive dispenser is a semiautomatic dispensing system designed to provide precision dispensing of adhesives or other materials. It is capable of handling viscosities ranging from liquids to pastes. All contact components are constructed of inert materials to allow dispensing of the most aggressive Adhesives, Rubber Glue, low viscous grease and Oils.

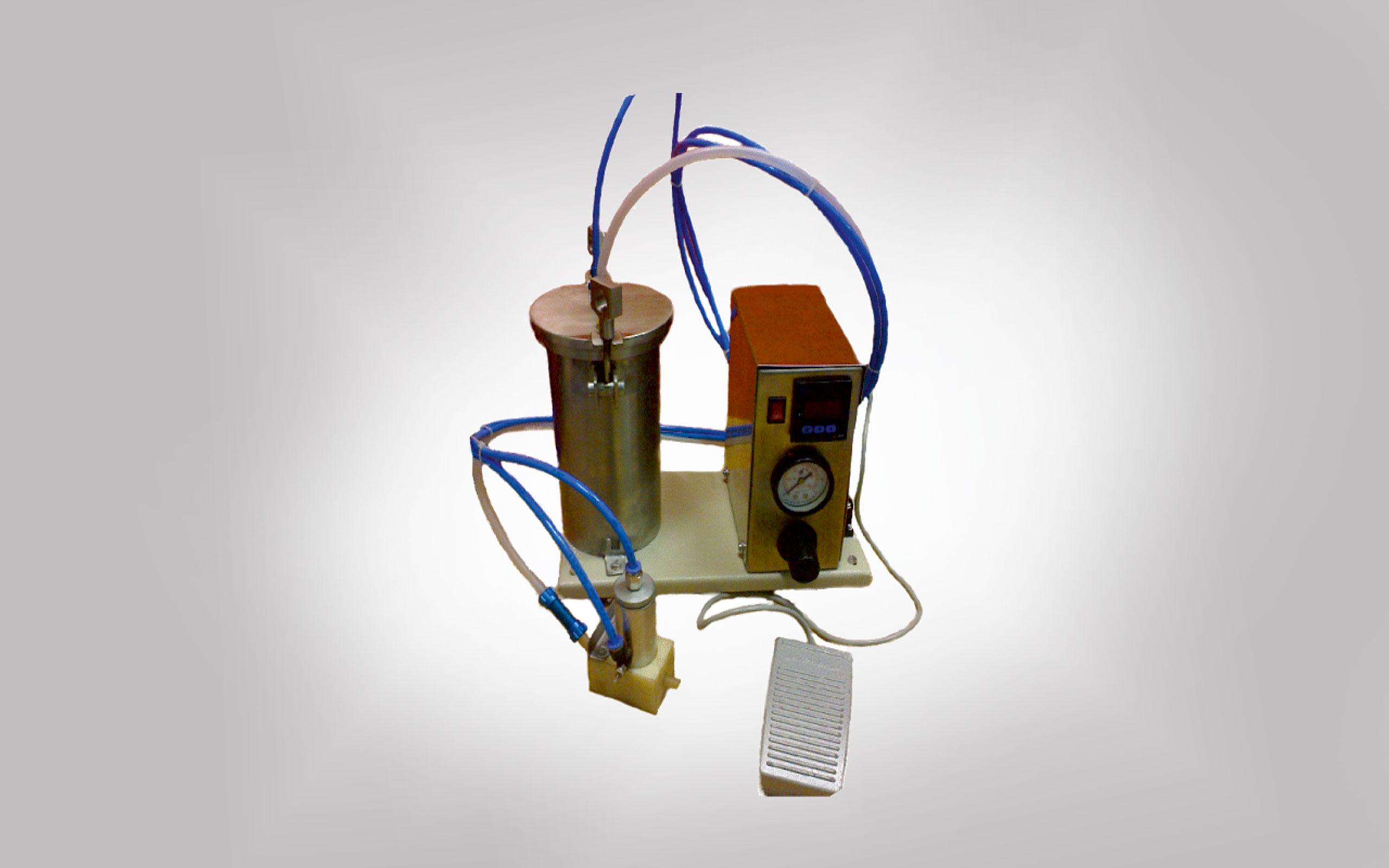

    Anaerobic Adhesive Dispenser includes a control box, housing the timer, one pressure gauge, regulator, a Mini dispensing valve, a valve stand and a pressure reservoir. A foot switch, as well as all hoses and connections are also included. The system is operated by programmable digital timer with six modes of operation, including both up and down timing. The large LCD display offers time ranges from 0.01 seconds to 9999 hours with repeat accuracy of + -0.2%

  • Features

    • Precise dispense-control of low viscosity materials using dispensing valves.
    • Easy refill with easy opening SS reservoir tanks.
    • Large, clearly marked air pressure and vacuum control knobs.
    • Dispenses the Adhesives, Rubber Glue, low viscous grease and Oils.
    • Digital timer offers time ranges from 0.01 seconds to 9999 hours.
    • Reservoirs allow drop and load refill with standard adhesive containers.
    • Precise dispensing of adhesives or other material with viscosity ranging

Specifications

  • Electrical: 230VAC
  • Air pressure (max): 5 to .7kg/cm2
  • Dispense valve working pressure: 5 to .7kg/cm2
  • Standard bottle: 250 ml
  • Time Range: 0.0001 to 9999 hrs
  • Electronics Timer: Digital, 6 different timing
  • Functions and 11 timing ranges from .01 seconds to 9999 hours
  • Features up or down counting Air Pressure: 0 to 7 kg/cm2, fully adjustable
  • Weight: 7 kg
  • Reservoir cap from liquid-to paste
