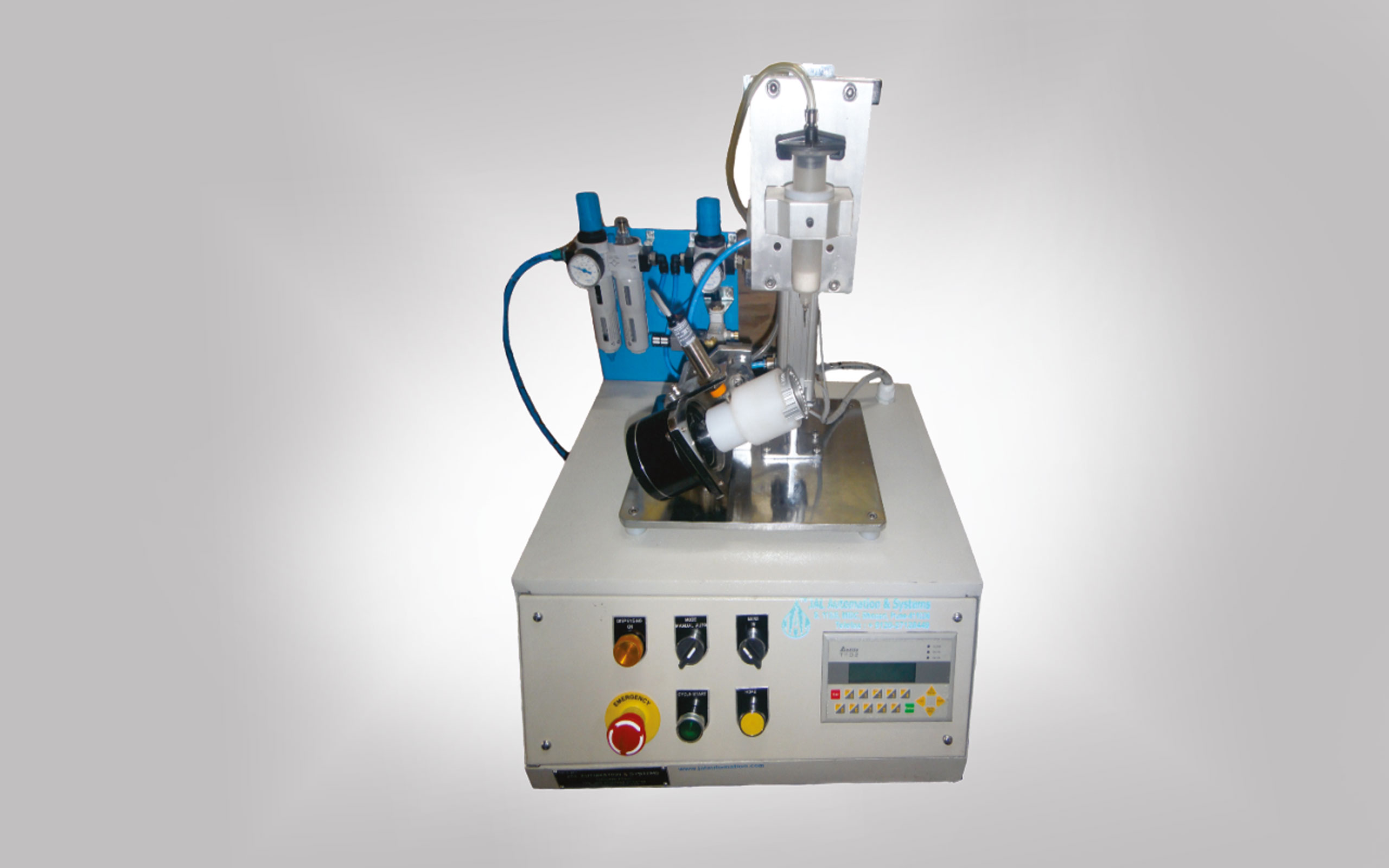

LED Glue Dispensing Machine is a semiautomatic dispensing system designed to provide precision dispensing of adhesives or other materials. It is capable of handling viscosity ranging from liquids to pastes. All contact components are constructed of inert materials to allow dispensing of the most aggressive Adhesives, Rubber Glue, low viscous grease and Oils.

LED Glue Dispensing Machine includes a control box, housing the timer, one pressure gauge and regulator, a Mini dispensing valve, a valve stand and a pressure reservoir. A foot switch, as well as all hoses and connections are also included.

The system is operated by programmable digital timer with six modes of operation, including both up and down timing. The large LCD display offers time ranges from 0.01 seconds to 9999 hours with repeat accuracy of + -0.2%

• Automatic glue dispensing with rotary indexer
• Continuous (Line) & intermingle (Dot) dispensing
• Production rate of 240 components/ Hr
• Compact in size
• Dispenses Adhesives, Rubber Glue, low viscous grease and Oils
• Digital timer offers time range 0.01 seconds to 9999 hours
• Reservoirs allow drop and load refill with standard adhesive containers
• Precise dispensing of adhesives or other material with viscosities ranging from liquid-to paste
