Industrial Reamer
Our organization is counted among the most distinguished manufacturers, suppliers and traders of Industrial Reamer. Under this category, we offer our customers a wide range of Solid Carbide Chucking Reamer, Carbide Lugged Reamer and Solid Carbide Reamers. The reamers offered by us are developed from high quality steel and are widely acclaimed for their strong construction and low maintenance cost.

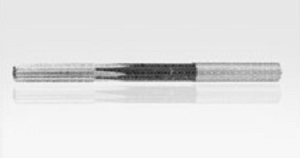

Solid Carbide Reamer
A quality range of Solid Carbide Reamers is offered to our prestigious clients. We ensure our clients to deliver a quality range of this product thereby it went through various quality measures under the strict guidelines of the professionals. We also assure our clients to deliver this range in the stipulated time frame and can be availed from the market at market leading prices.
Features:
• Sturdy construction
• Efficient performance
• Effective
Brazed Carbide Reamer
Product Details:
• Minimum Order Quantity: 10 Piece
• Size: 6mm to 8mm
• Reamer Type: Straight Flutedsizes and price will vary according to diameter and length
sizes and price will vary according to diameter and length
Additional Information:
• Pay Mode Terms: T/T (Bank Transfer),D/P
• Port of Dispatch: by courier transport
Solid Carbide Chucking Reamer
Specification
| D1 H7 | D2 H6 | l1 | l2 |
| 3,00 | 2,50 | 50 | 16 |
| 3,50 | 3,00 | 50 | 16 |
| 4,00 | 3,55 | 56 | 20 |
| 4,50 | 4,00 | 63 | 22 |
| 5,00 | 4,00 | 63 | 22 |
| 5,50 | 5,00 | 63 | 22 |
| 6,00 | 5,00 | 63 | 22 |
| 6,50 | 5,00 | 63 | 22 |
| 7,00 | 6,30 | 71 | 25 |
| 8,00 | 6,30 | 71 | 25 |
| 9,00 | 8,00 | 71 | 25 |
| 10,00 | 8,00 | 71 | 25 |
| 11,00 | 10,00 | 75 | 25 |
| 12,00 | 10,00 | 75 | 25 |
| 13,00 | 10,00 | 75 | 25 |
| 14,00 | 12,50 | 90 | 32 |
In order to fulfill the changing demands of our clients, we are offering Solid Carbide Chucking Reamer. The offered reamers are manufactured by the experts following industry standards. These are widely used to enlarge or finish a hole that has already been drilled. We offer these solid carbide chucking reamers to the clients at market-leading prices.Features:
• Straight flute
• Unequal divisions
• Right hand cutting
Grade:
• K10 Micro-fine
Applications:
• Reaming of difficult materials & of very high precision holes
All dimensions in mm
Carbide Lugged Reamer
Feature:
Standard Tolerance = H8
Straight Unequally Indexed Flutes
Carbide Lug Length = Flute Length
Body - Alloy Steel Hardened
Grade:
K 05 / K10 Microfine
Application:
Can achieve 150% higher speeds & 2/4 times higher feeds as compared to conventional HHS reamers. Results in accurate dimensional control, superior surface finish & higher productivity Preferred for high tensile & high abrasive material where other types of reamers do not give consistent performance Ideal for usage on conventional as well as CNC machines.
