End Mill Cutter
We are offering our customers with an unmatched range of Milling Products that are in demand throughout the market for their optimum quality, long performance life, reliability and dimensional accuracy. These Milling Products can be availed at industrial leading prices.

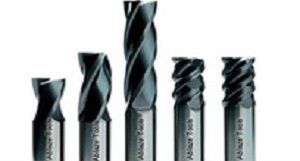

Solid Carbide End Mill
To furnish the diverse requirements of our clients in the best possible manner we are involved in offering an extensive range of Solid Carbide End Mill.
Tapper End Mill

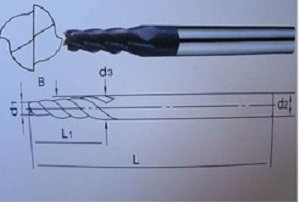

Specifications:
| D1 H10 | D2 H6 | l1 | l2 | l3 |
| 4 | 6 | 57 | 8 | 36 |
| 4,5 | 6 | 57 | 8 | 36 |
| 5 | 6 | 57 | 10 | 36 |
| 6 | 6 | 57 | 10 | 36 |
| 7 | 8 | 63 | 13 | 36 |
| 8 | 8 | 63 | 16 | 36 |
| 9 | 10 | 72 | 16 | 40 |
| 10 | 10 | 72 | 19 | 40 |
| 12 | 12 | 83 | 22 | 45 |
| 14 | 14 | 83 | 22 | 45 |
| 16 | 16 | 92 | 26 | 48 |
| 18 | 18 | 92 | 26 | 48 |
| 20 | 20 | 104 | 32 | 50 |
The range of Tapper End Mills are available in different material specifications and we make sure that these End Mills are absolutely free from defects and faults. These End Mills Noses are widely available in various specifications and dimensions.Features:
• Reliable
• Anti-corrosive
• Durability.
Solid Carbide End Mill
Features:
• Square End
• 4 Flute
• 30 degree Right hand Helix
• Right Hand Cutting
• Center Cutting
Grade:
• K10 Microfine
• P30 on request
• TiAln / TIN Coating - on request
Applications :
• For milling of Cast Iron, Steel, Steel Casting etc, non ferrous material & for universal Material
Solid Carbide End Mill
Quality range of Solid Carbide End Mill is offered by us. These products are reckoned amongst the clients for catering high end technology and techniques. Also, our range is manufacture in accordance to comply with the requirements of the clients. Besides, these products are reckoned for their sturdiness and durability. Together with durability, our range ensures high strength and reliability.
Features:
• Efficient
• Effective
• Reliable
Industrial End Mill
Quality range of Solid Carbide End Mill is offered by us. These products are reckoned amongst the clients for catering high end technology and techniques. Also, our range is manufacture in accordance to comply with the requirements of the clients.
Besides, these products are reckoned for their sturdiness and durability. Together with durability, our range ensures high strength and reliability.
Description
Material | Type | VC (m/min) | Feed Rate f/tooth | Coating | Coolant |
Low alloy Steel upto | Standard Length | 120 | 0.05 | TiAlN/TiN | Soluble |
700N/mm 2 | Long | 90 | 0.04 | TiAlN/TiN | Soluble |
High Alloy steels upto | Standard Length | 120 | 0.04 | TiAlN/TiN | Soluble |
900N/mm 2 | Long | 90 | 0.03 | TiAlN/TiN | Soluble |
High Alloy steels above | Standard Length | 100 | 0.03 | TiAlN/TiN | Soluble |
900N/mm 2 | Long | 80 | 0.02 | TiAlN/TiN | Soluble |
Tool Steel/Ball Bearing | Standard Length | 60 - 100 | 0.02 | TiAlN/TiN | Soluble |
steel | Long | 60-100 | 0.02 | TiAlN/TiN | Soluble |
Stainless/Heat resistance | Standard Length | 45 -60 | 0.02 | TiAlN | Oil |
