Our Portfolio

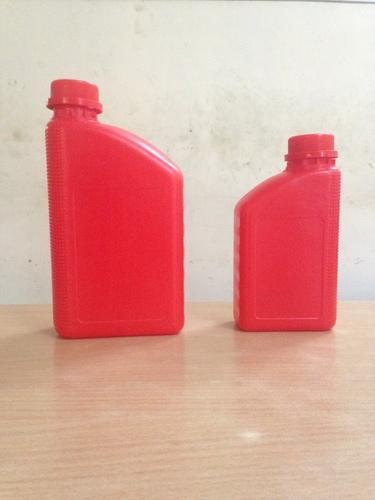

1 LTRS TO 5 LTRS

Size Outer diameter Height Thickness Weight Brimful Neck
5 Ltrs Pesticide 300 + 2 200 x 142 (L X W) 1.0 (min) 300 + 2 gm 5600 ID mm + 0.5 OD mm + 0.5
Parameter Specification (in mm)
100 ml 250 ml 500 ml 1 Ltrs 5 Ltrs
Height (mm) 112.0 + 2 118 + 2 172 + 2 200 + 2 300 + 2
Outer Diameter (mm) 43.0 + 1 68 + 1 78 + 1 97 + 1 200 x 142
Thickness (mm) 1.0 (min) 1.0 (min) 1.0 (min) 1.0 (min) 1.0 (min)
Weight (grm) 20.0 + 2 gm 45.0 + 2 gm 65.0 + 2 gm 100 + 2 gm 300 + 2 gm
Brimful capacity (ml) 120 (MIN.) 300 560 1100 5600
Printing Details Plain Plain Plain Plain Plain
Colour White White White White White
Neck 27.00 18 18 18 31
ID mm + 0.5
OD mm + 0.5		 36.00 29 29 29 38

5 LTRS MAHAVIR SHAPE JERRYCAN

Size Height Length Width Mouth Dia
5 Ltrs Jerrycan 300 mm 183 mm 140 mm 38 mm

JAR / RIP JAR / BARNI

Height Outer Diameter Brimful capacity Neck Inner Diameter Tare Weight
132 mm + 2% 114 mm + 2% 1030 ml + 30 ml 111.5 + 2% 100 gm + 5%

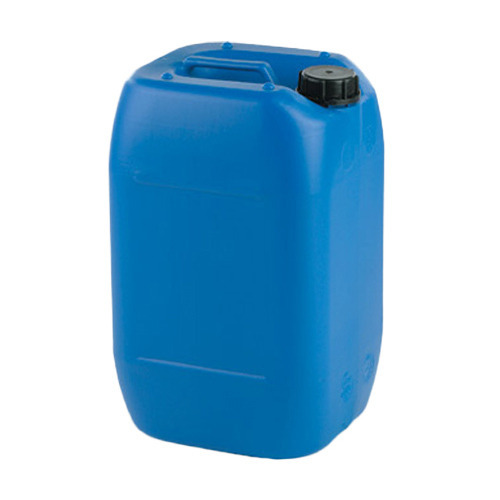

JERRYCAN

Size Mouth Dia Height Width Length / Breadth
10 Ltrs 25 mm 331 mm 269
20 Ltrs 50 mm 467 mm 350 mm 195 mm
35 Ltrs 50 mm 502 mm 385 mm 252 mm

POLYCAN

Size Mouth Dia Height Width Length / Breadth
10 Ltrs 45 mm 292 mm 215 mm 203 mm
15 Ltrs 45 mm 350 mm 280 mm 255 mm
20 Ltrs 45 mm 405 mm 251 mm 281 mm
25 Ltrs 45 mm 410 mm 285 mm 260 mm
30 Ltrs 45 mm 445 mm 330 mm 267 mm
35 Ltrs 45 mm 478 mm 335 mm 293 mm

W/M / N/M / RKT

Size Mouth Dia Height Length / Width
20 Ltrs W/M 150 mm 380 mm 310 mm
50 Ltrs RKT 50 mm 570 mm 400 mm
50 Ltrs N/M 50 / 25 mm 530 mm 395 mm
50 Ltrs W/M 195 mm / 150 mm 530 mm 395 mm
100 Ltrs N/M 50 / 25 mm 700 mm 475 mm
100 Ltrs N/M 195 mm 700 mm 475 mm

FULL OPEN TOP

Size Mouth Dia Height Diameter
10 Ltrs 203 mm 356 mm 228 mm
20 Ltrs 250 mm 390 mm 305 mm
25 Ltrs 250 mm 465 mm 305 mm
30 Ltrs 250 mm 525 mm 320 mm
40 Ltrs 250 mm 560 mm 360 mm
50 Ltrs 331 mm 578 mm 372 mm
60 Ltrs 350 mm 675 mm 380 mm
65 Ltrs 350 mm 655 mm 420 mm
80 Ltrs 350 mm 755 mm 415 mm
120 Ltrs 426 mm 853.44 mm 518 mm

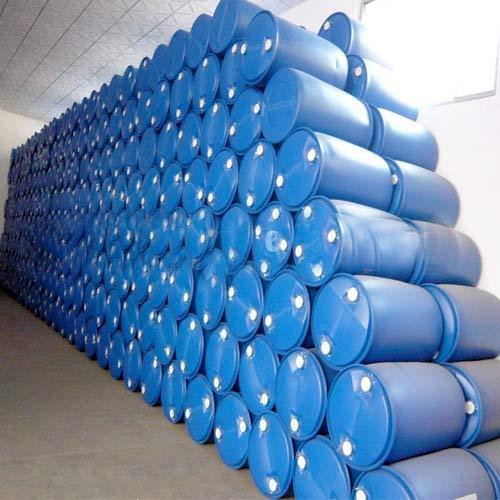

210 LTRS BARRELS

Size Mouth Dia Height Length / Width
205 Ltrs 55 mm 875 mm 580 mm
210 Ltrs 55 mm 910 mm 580 mm
220 Ltrs 55 mm 940 mm 580 mm
235 / 240 Ltrs 55 mm 1035 mm 580 mm
