Servo Drives

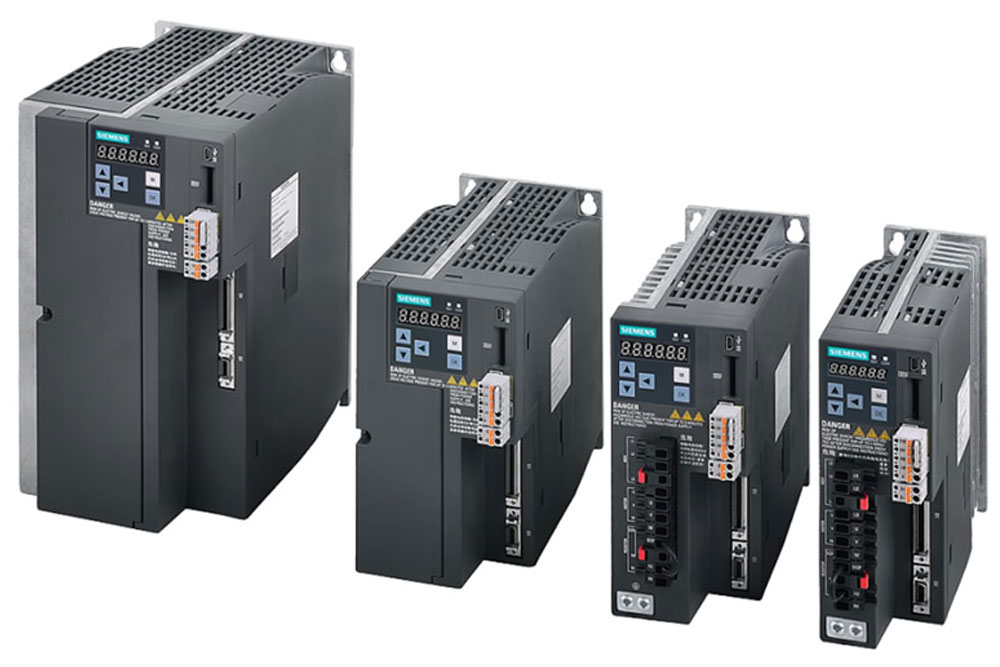

V90 Drive

The servo drive system comprises the basic SINAMICS V90 servo converter and SIMOTICS S-1FL6 servomotor. The system features eight converter frame sizes and seven motor shaft heights to cover a performance range from 0.05 kW to 7.0 kW for operation in single-phase and three-phase networks. Can be simply integrated via PTI, PROFINET, USS, Modbus RTU. The SINAMICS V90 servo drive system enables a wide range of simple Motion Control tasks to be implemented cost-efficiently and conveniently with the focus being on dynamic motion and processing.

SINAMICS V90 Servo Drive System – An Overview of its Strengths

  • Optimized servo performance
  • Cost effective
  • Easy to use
  • Reliable operation
  • With SIMATIC controllers - a strong team in the TIA Portal

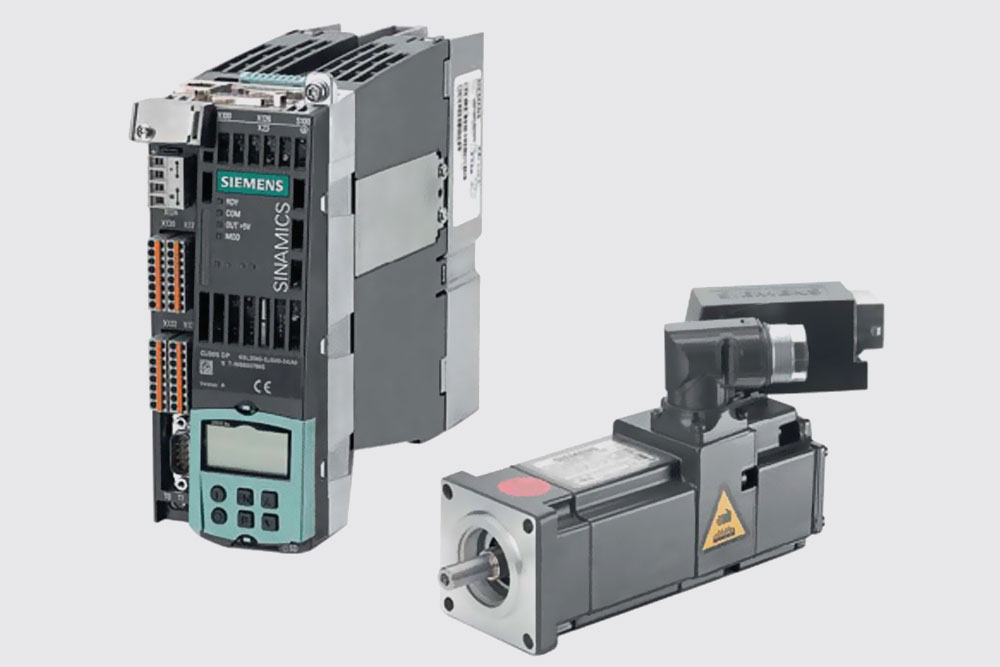

S110 Drive

The SINAMICS S110 with its built-in basic positioning system is ideal when you need to position machines axes simply, quickly, and accurately. While the positioning drive relieves the higher-level machine control system of the task, this flexible drive actually offers much more. As an alternative to a basic positioning system, the drive can be assigned set values of speed or position using analog input or a field bus interface, such as PROFIBUS, CAN, PROFINET. Additionally, the positioning drive can control a wide range of built-in safety functions with on-board safety terminals without intricate additional circuits. As a modular single-axis drive with servo functionality, SINAMICS S110 covers a power range from 0.15 HP (1-ph AC 230V) to 125 HP (3-ph AC 480V).

The SINAMICS S110 can be used to position both synchronous servomotors and induction motors.


SINAMICS S110 Typical Applications :-

Handling equipment

  • Automatic assembly machines
  • Medical technology, such as examination tables or patient beds
  • Feeders and delivery devices
  • Tracking mechanisms, such as solar panels
  • Tool changers
  • Stacking units
  • Pick-and-place tasks

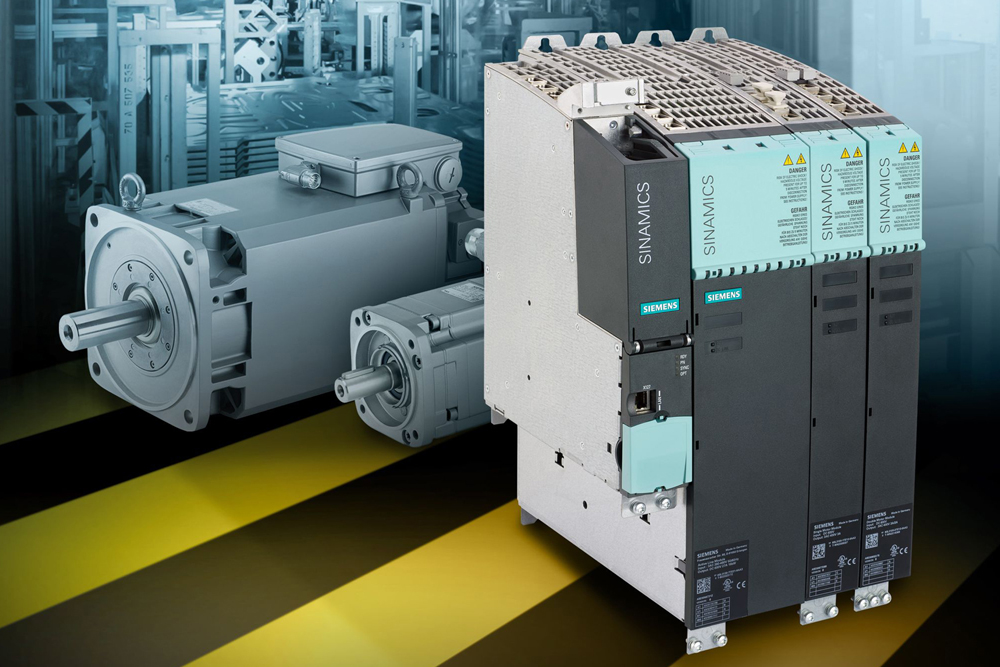

S120 Drive


For single-axis drives, the line infeed and the power supply of the motor are combined in one device – the Power Module. For single-axis applications, the closed-loop drive control is handled by a special Control Unit (e.g. CU310-2) mounted on the Power Module; for multi-axis applications, using a Control Unit (e.g. CU 320-2) coupled via DRIVE-CLiQ. In the latter case, instead of the Control Unit, a CU adapter is mounted on the Power Module.

AC-Drives are each equipped with a CU310-2 Control Unit for coupling to a higher-level control. It offers functions from a basic speed controller up to extensive positioning functions. CU310-2 DP with PROFIBUS DP connection or CU310-2 PN with integrated PROFINET interface are available.

Drive-related inputs/outputs in the Control Unit can be simply logically combined using BICO technology. As a consequence, the highest possible degree of decoupling between the drive and higherlevel control system can be achieved. For AC-Drives, when required, an additional encoder and drive-related I/O can be connected via DRIVE-CLiQ The drive is connected to a multi-axis Control Unit, e.g. CU320-2, using the CU adapter CUA31 via the DRIVE-CLiQ interface. This Control Unit then handles the drive functions for the AC-Drive. In this configuration, SINAMICS S120 AC-Drives can also be used in mixed operation with SINAMICS S120 multi-axis devices. This facilitates maximum flexibility when using SINAMICS S120 devices. In comparison to the CUA31, the CUA32 also has an integrated HTL/TTL encoder interface to connect an external encoder.
