DESCRIPTION

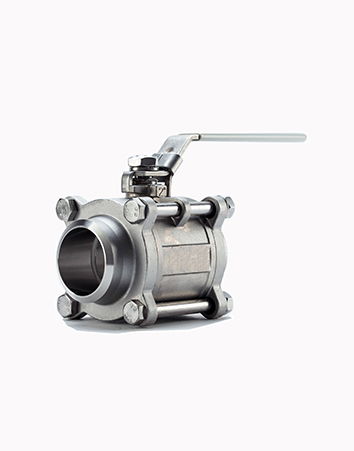

Kumars Three Piece Ball Valve have been designed for long life economic operation & above all safety. this sealing system is virtually maintenance free but if the necessity arises then it can be easily re-tightened during service.



DETAILS

Size 1/2 to 2
Pressure Class 800
Type 3 Piece
Valve type Floating Designs


STANDARDS

Design Standard BS5351/ ISO 10434/ API 6D
Inspection Standard API598
Face To face MFG.STANDARD
End Connection FLANGED END AS PER ASME B16.5 BUTT WELD AS PER ASME B16.25 SOCKET WELD AS PER ASME B16.11 SCREWED AS PER ASME B1.20.1


MATERIAL

Body ASTM A105 / ASTM A216Gr.WCB / ASTM A351GRCF8 / ASTM A351Gr.CF8M / ASTM A182F304 / ASTM A182F316 / ASTM A351GRCF3M /ASTM A351GRCF8
Ball ASTM A276 TYPE 410 /AISI304 /AISI316 / AISI316L / MONNEL ALLOY 20 /HAST-ALLOY
Stem ASTM A276 TYPE 410 /AISI304/ AISI316 /AISI316L/ MONNEL ALLOY 20/ HAST-ALLOY
Seat PTFE/RPTFE/GRAFOIL
Gland Packing PTFE/RPTFE/GRAFOIL

TEST PRESSURE

Class Hydraulic Body KgCm2 (PSIG) Hydraulic Seat Back Seat KgCm2(PSIG) Seat Air KgCm2(PSIG)
800 210 (2986) 153 (2176) 7 (100)
1500 396 (5632) 291 (4138) 7 (100)
2500 660 (9387) 484 (6884) 7 (100)

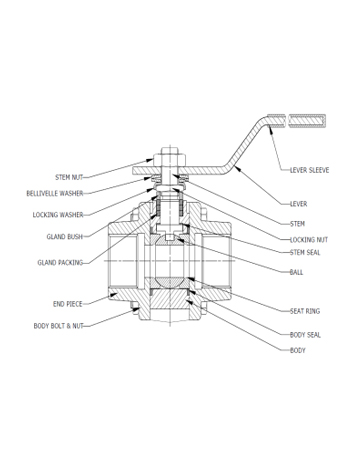

THREE PIECE BALL VALVE BILL OF MATERIAL

Partname Material Specification Qty
Body ASTM A105 /ASTM A182 F316L 1
End Piece ASTM A105 /ASTM A182 F316L 2
Ball ASTMA182Gr.F316 / ASTMA182Gr.F304 1
Seat PTFE / RPTFE 2
Body Seal PTFE /RPTFE 2
Stem Seal PTFE / RPTFE 1
Gland Packing PTFE 3
Stem ASTMA276 TYPE SS316 1
Gland Bush ASTMA276 TYPE SS316 1
Stem Nut ASTMA194Gr.2H 1
Body EC Bolt ASTM A193 GR.B8M 1
Body EC Nut ASTMA194Gr.8M 1
Lever MILDSTEEL + ENP 1
Lever Sleeve PVC 1
Belleville Washer Spring Steel 2
Locking Washer MS 1
Lock nut ASTM A194Gr.2H 1

DIMENSION CHART

Three Piece
Ball valve
800
Size L H ø'W' Wt.(Approx.)(KG)
Inch mm FB FB FB FB
1/2 15 66.5 58 115 1.74
3/4 20 75 86 130 3.12
1 25 96.6 108 163 3.5
1 1/2 40 115 130 180 4.5
2 50 125 144 200 7.5

Special requirements

Special material ,customer specific design & internal parts provide as per requirement & on request.
Note: -Due to continues developments we reserve the right to change the parameters with out prior notice
