MATERIAL
| Body |
ASTM A105N/ ASTM A350 LF2 / ASTM A182 F11-CL2/ ASTM A182 F22- CL3/ ASTM A F91/ ASTM A182 304L/ ASTM A182 F316L |
| Plug |
ASTM A217 GR.CA15 / ASTM A276 TYPE 410/ ASTM A217 GR CF8M/ SS316/ ASTMA217GR.CF8 SS304 |
| Seat |
ASTM A276 TYPE 410/ SS316/SS304/ASTM AA276 TYPE 410 + ST6 |
| Gland Packing |
INCONEL BREADED RING WITH CORROSION INHIBITOR + MOLDED GRAPHITE RING |
TEST PRESSURE
| Class |
Hydraulic Body
KgCm2 (PSIG) |
Hydraulic Seat
Back Seat KgCm2(PSIG) |
Seat Air
KgCm2(PSIG) |
| 2500 |
660 (9387) |
484 (6884) |
7 (100) |

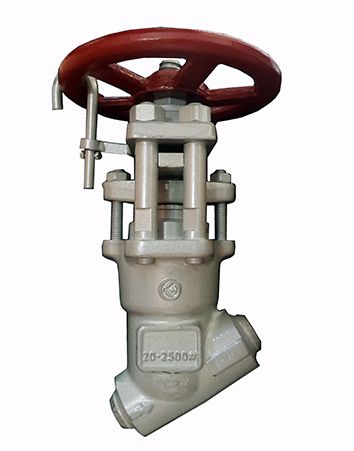

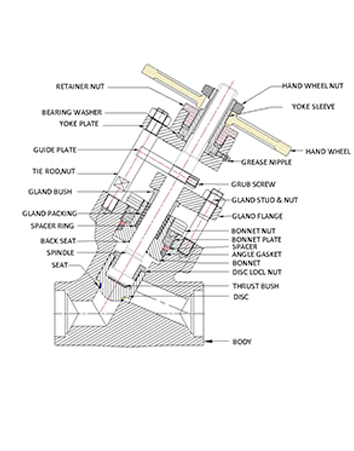

FORGED Y-Type Globe VALVE BILL OF MATERIAL
| SL No. |
Part Name |
Material Specification |
Qty |
|---|
| 1 |
Body |
ASTM A105N |
1 |
| 2 |
Bonnet |
ASTM A105N |
1 |
| 3 |
Plug Disc |
ASTMA276SS410ASTMA217Gr.CA15 |
1 |
| 4 |
Disc Lock Nut |
INTEGRAL+ST6 |
1 |
| 5 |
Spindle(Stem) |
ASTMA276 TYPE 410 |
1 |
| 6 |
Gland Bush |
ASTMA276 TYPE 410 |
1 |
| 7 |
Gland Packing |
INCONEL BRAIDED GR.RINGS WITH CORROSION INHIBITOR + MOLDED GRAPHITE RINGS |
7-8 |
| 8 |
Gland Flange |
ASTM A105 |
1 |
| 9 |
Spacer |
ASTM A276 TYPE 410 |
1 |
| 10 |
Gland Stud & Nut |
A193 Gr.B7 A194 Gr.2H + Zn PLATED |
2 Set |
| 11 |
Bonnet Plate |
ASTM A276 TYPE 410 |
1 |
| 12 |
Thrust Bush |
ASTM A276 TYPE 410 |
1 |
| 13 |
Spacer Ring |
ASTM A276 TYPE 410 |
1 |
| 14 |
Angle Gasket |
HIGH PURITY GRAPHITE |
1 |
| 15 |
Bonnet Bush |
INTEGRAL + ST6 |
1 |
| 16 |
Seat |
INTEGRAL + ST6 |
1 |
| 17 |
Bonnet Nut |
ASTM A276 TYPE 410 |
1 |
| 18 |
Guide Plate |
EN8 + Zn PLATED |
1 |
| 19 |
Grub Screw |
MS |
2 |
| 20 |
Tierod Nut |
ASTM 193Gr.B16 ASTM A194 GR.7 |
4 Set |
| 21 |
Yoke Plate |
ASTM A182 F22 CL-3 |
1 |
| 22 |
Grease Nipple |
SS |
1 |
| 23 |
Bearing Washer |
BEARING STEEL BRASS |
1 |
| 24 |
Yoke Sleeve |
SS416 |
1 |
| 25 |
Retainernut |
ASTM A276 TYPE 410 |
1 |
| 26 |
Hand Wheel |
CARBON STEEL |
1 |
| 27 |
Hand Wheelnut |
A 194 Gr.2HAISI1020 |
1 |
DIMENSION CHART
Y-TYPE
GLOBE VALVE
1500 |
Size |
L |
H |
ø'W' |
Wt. |
|
|
Close |
|
Approx.(Kg) |
| Inch |
mm |
FB |
FB |
FB |
FB |
| 1/2 |
15 |
120 |
238.0 |
150.0 |
10.00 |
| 3/4 |
20 |
120 |
238.0 |
150.0 |
10.02 |
| 1 |
25 |
140 |
263 |
230 |
16.00 |
| 1 1/2 |
40 |
222 |
372 |
250 |
32.90 |
| 2 |
50 |
222 |
372 |
250 |
32.90 |
Y-TYPE
GLOBE VALVE
2500 |
Size |
L |
H |
ø'W' |
Wt. |
|
|
Close |
|
Approx.(Kg) |
| Inch |
mm |
FB |
FB |
FB |
FB |
| 1/2 |
15 |
120.0 |
238.0 |
150.0 |
10.00 |
| 3/4 |
20 |
120.0 |
238.0 |
150.0 |
10.20 |
| 1 |
25 |
140.0 |
263.0 |
230.0 |
16.00 |
| 1 1/2 |
40 |
222.0 |
345.0 |
250.0 |
32.90 |
| 2 |
50 |
222.0 |
370.0 |
250.0 |
32.90 |
Special requirements
Special material ,customer specific design & internal parts provide as per requirement & on request.
Note: -Due to continues developments we reserve the right to change the parameters with out prior notice
