Pliant Bellows are manufactured using state of the art machines. The formed bellows are manufactured mainly by 2 types of processes.

HYDRO FORMING

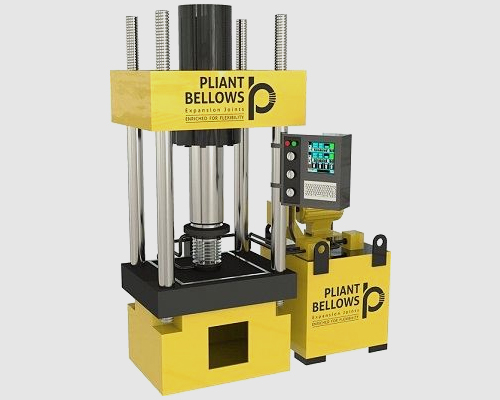

The hydroforming machine is designed by US Designers and has been manufactured to international quality standards.
Bellows formed by hydroforming process are uniform in structure with adequate dimensional accuracy.
In a single step, corrugations are formed on an entire metal bellow, which increases the productivity considerably.
The properties achieved by the hydroforming process are far superior as compared to mechanically drawn bellows.
Metal bellows can be manufactured with a single ply or multiple plies with excellent flexibility, pressure tightness, and little wall thickness reduction.

Technical Specification:

Diameter Range	mm	15 - 600
Ply Thickness	mm	0.2- 4
Tube Length	mm	up to 1000
Internal Pressure	mm	up to 340
Total Power	HP	25
Forming Time	sec	<60

MECHANICAL EXPANDER

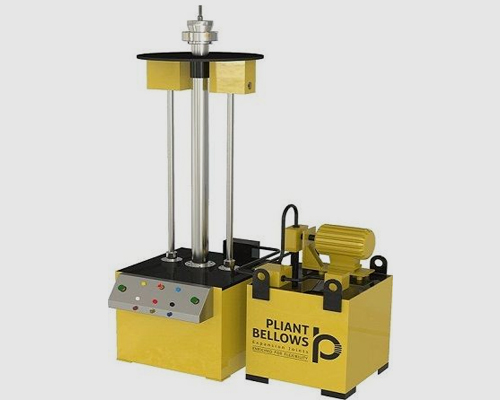

Metal bellows with diameters ranging from 90 mm to 1500 mm (New Machine is in development for bellows up to 6000 mm) can be processed on our Mechanical punch forming machine (also known as Mechanical Expander) which is also designed by US Designers.
Single corrugation on the bellow is being formed mechanically.
It’s a two-step forming process, the first step is to form the tube into convoluted shape and the second step is the re-rolling process.
The convolutions are punched individually thus eliminating thinning of bellow material.
Metal bellows can be manufactured with a single ply or multiple plies. Internal and external diameters can be aligned as per customer’s requirement.

Technical Specification:

Diameter Range	mm	90 - 1500
Ply Thickness	mm	<3 (Single Ply), 5 Plies (1mm/ply)
Tube Length	mm	<1500
Total Power	HP	7.5
Forming Time/ convolution	sec	<60

TESTING CAN BE CARRIED OUT LIKE:

Radiography test
Fatigue test
Helium leak detection testing
Pressure leak test

SALIENT FEATURES:

Company uses EJMA based software along with our professional designers for bellow designing.
Traceability of each bellow is maintained throughout the procurement to dispatch process.
The organization is ISO 9001:2008 certified.
High level of employee training.

Using the latest technology available in computerized bellows design analysis to EJMA guidelines, as well as a full complement of PLC controlled bellows forming equipment; we can provide design, drafting and fabrication of finished expansion joints of unlimited complexity.
