CNC Tool Storage System
CNC Tool Storage System is based on the standard of having safe and sound solutions for tool storage. The storage and ease of access of tools appreciably affects the cost-effectiveness of sophisticated machine tools, making exact storage and safe transport in-dispensable. This storage system depends upon a system of tool holders that are designed for cylindrical and conical machine tools. Huge capacity carts are available for storage and transport. Also available are an assortment of drawer cabinets, tool carriers, machine cabinets and roller shutter cabinets to accommodate your tool storage requirements.

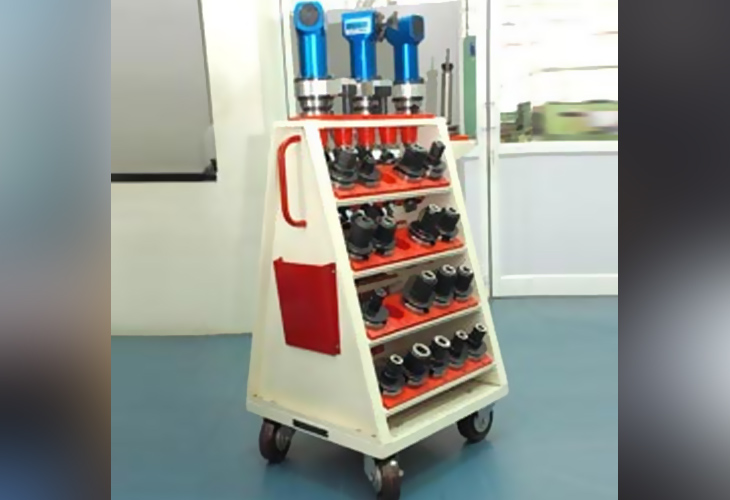

A Type CNC Trolley
A Type cnc trolley is specially designed to transport the tool holders. Manufactured using steel sheet with A-Type design, this trolley ensures easy accessibility of cutting tools. This trolley possesses taper of 31 for easy access and both side accessibility to carry maximum no. of tool holders. The standard level of this trolley is 9 nos and the handles are fixed for easy moving.
Features:
- Long-lasting
- Rugged performance
- Durable
- Calibration
- Resistance against environment
Specifications:
| Dimensions | 640 mm L x 620 mm W x 1115 mm H |
| Load Capacity | Upto 700 Kg. |
| Finish | Powder coating (Ivory Glossy). |
| MD-HP1 with Fibre Castor, Wheel 2 nos. Swivel & 2 Nos. fixed, of Dia 150 mm, to achieve smooth running on any floor. | |
Industrial Material Handling Trolley
Industrial Material Handling Trolley is extensively used for movement of gunny- bags, heavy materials, corrugated boxes, crates etc. in stores, factories and warehouses. These heavy platform trolleys are manufactured in tubular pipes, platform of sheet metal with castor wheel. The offered assortment of trolley finds extensive applications industries such as refineries, construction companies, cement industry, pharmaceutical companies, fertilizer companies, textile industry etc and different other Industries, and in any other transporting usage.
Specifications:
- Material: Mild Steel
- Color: Deep Blue & Golden Yellow
- Brand: Metafold
- Load Capacity (Kg): 200-500
- Feature: High Strength

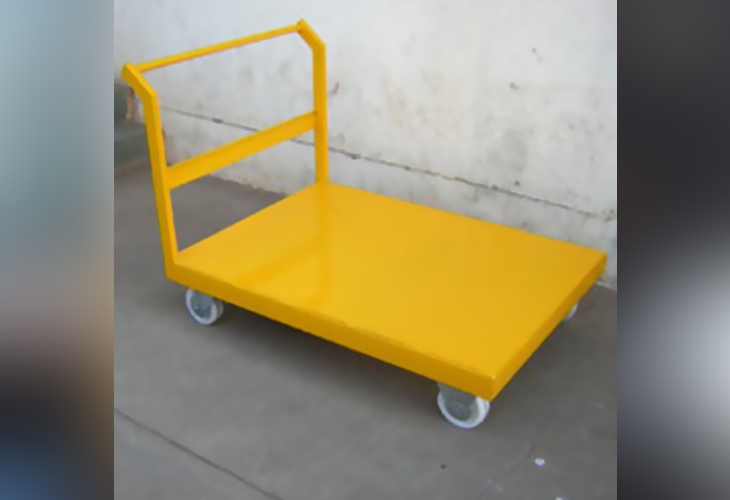

Platform Trolley
Dimension (mm) :
- 855 L x 615 D
- 855 L x 615 D
- 1275 L x 815 D
Load Capacity :
- 200, 500 kg UDL
Wheel :
- Ø100 x 35 for 200 kg.
- Ø100 x 50 for 500 kg.
Finish :
- Powder Coating-RAL-1003
Specification
- Size: Customized
- Finish: Powder Coating-RAL-1003
- Brand: Metafold
Raised Platform Trolley
Dimension (mm) :
- 960 L x 710 D
- 1160 L x760 D
- 1360 L x 910 D
Load Capacity :
- 200, 500 kg UDL
Wheel :
- Ø100 x 35 for 200 kg.
- Ø100 x 40 for 500 kg.
Finish :
- Powder Coating-RAL-1015
Specifications:
- Size: Customized
- Finish: Powder Coating-RAL-1015
- Brand: Metafold

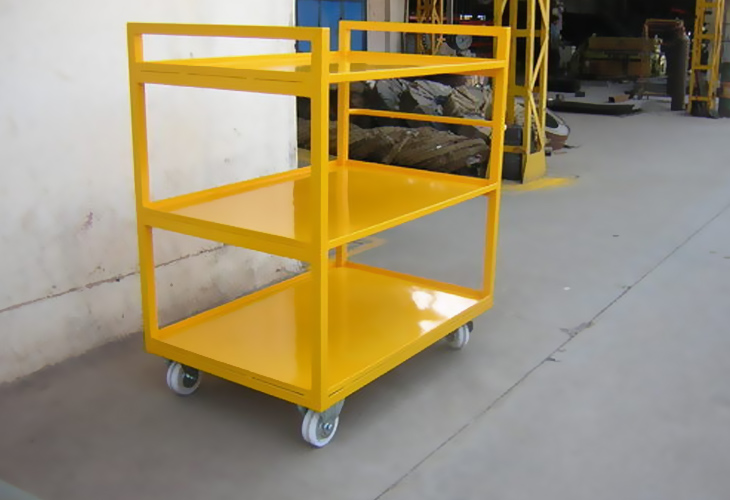

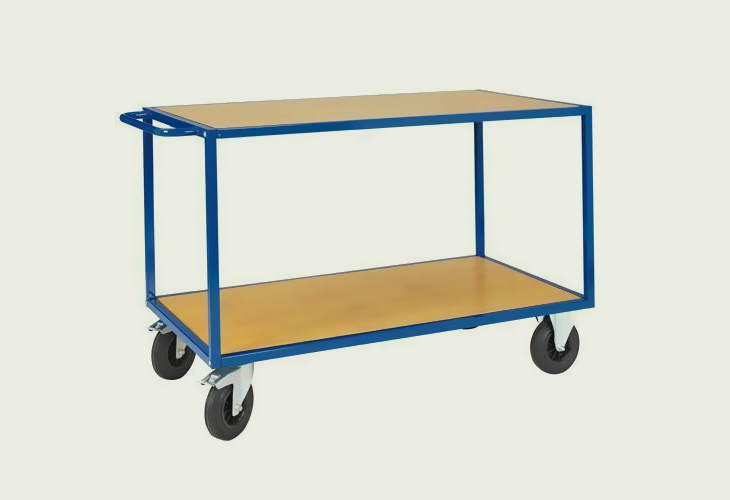

Table Trolley
Dimension (mm) :
- 850 L x 650 D
- 1050 L x 650 D
- 1200 L x 650 D
Load Capacity :
- 200, 500 kg UDL
Wheel :
- Ø100 x 35
- Ø150 x 40
Finish :
- Powder Coating-RAL-1015
Specifications:
- Capacity: 200, 500 kg UDL
- Finish: Powder Coating-RAL-1015
- Brand: Metafold

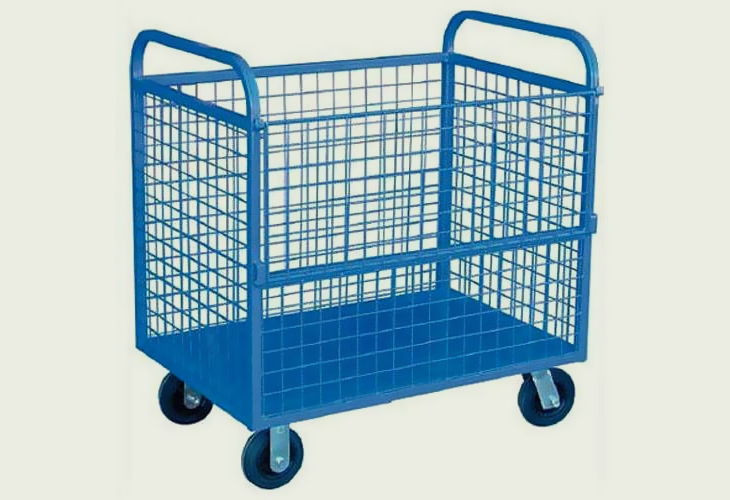

Raised Wire-Mesh Trolley
Dimension (mm) :
- 800 L x 500 D
- 1000 L x 650 D
- 1250 L x 650 D
Load Capacity :
- 200, 500 kg UDL
Wheel :
- Ø100 x 35
- Ø150 x 40
Finish :
- Powder Coating-RAL-1003
Specifications:
- Capacity: 200, 500 kg UDL
- Finish: Powder Coating-RAL-1003
- Brand: Metafold

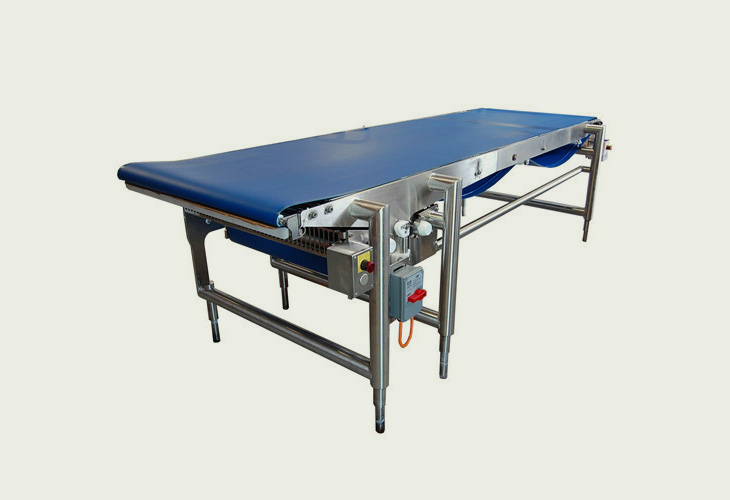

Flat Belt Conveyor Systems
Are durable and reliable components used in automated distribution and warehousing. In combination with computer controlled pallet handling equipment this allows for more efficient retail, wholesale, and manufacturing distribution. It is considered a labour saving system that allows large volumes to move rapidly through a process, allowing companies to ship or receive higher volumes with smaller storage space and with less labour expense.
Features:
- Slider Bed Material - Stainless Steel Which Reduces Belt Friction.
- Increases Belt Life.
- Consumes Less Power.
- Aesthetically Clean Look.
Specifications:
- Material: Aluminium
- Type: Flexible Conveyors, Vertical Conveyors, Spiral Conveyors, Vibrating Conveyors, Pneumatic Conveyors
- Brand: Metafold

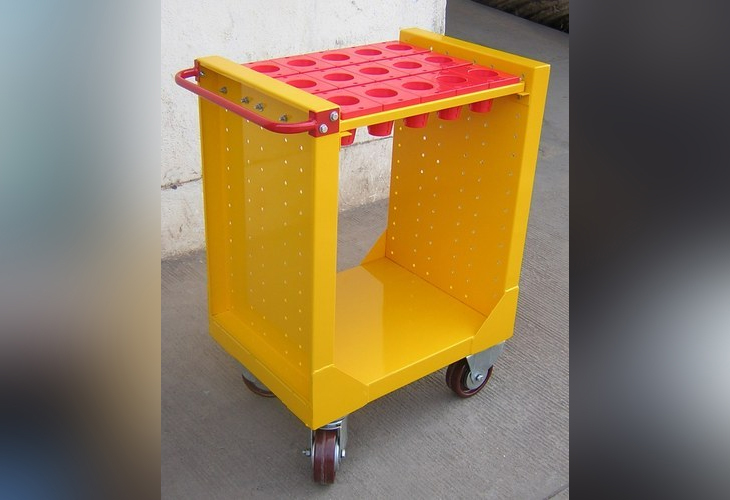

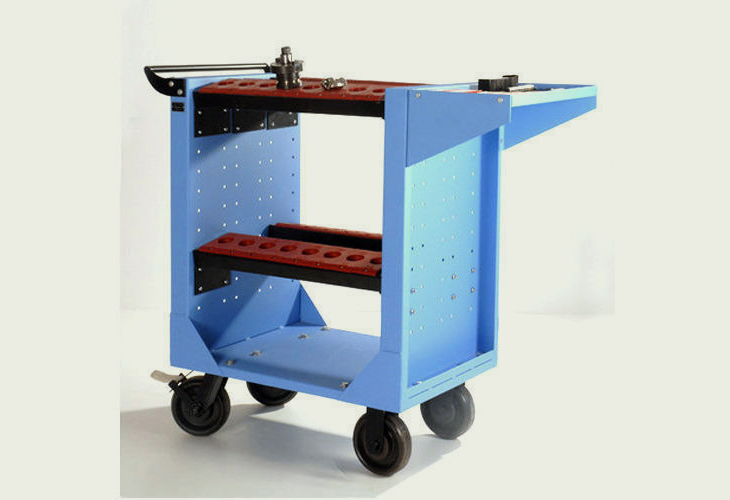

Square Type Trolley
Manufactured using steel with Square Type Trolley designed for easy accessibility of cutting tools. This type of trolley has the taper of 10 for simple access2 levels on base and both side convenience to bear maximum no. of tool holder. Clients can avail this trolley in different specifications depending upon their precise requirements.
Features:
- Ease of Installation
- Rust free
- Uniformity
- Corrosion Protection
- Flexible in nature
- Durable in nature
Specifications
- Standard level is maximum 5 nos.(1 nos tool holder bracket either side of + 3 no tool holder bracket on top).
- MD-HP1 with fibre caster, wheel 2 nos. swivel & 2 nos. fixed of Dia 150 mm, to achive smooth running on any floor.
- Handles are fixed to easy moving. Dimension: 680 mm L 485 mm W 975 mm H
- Load capacity:up to 700 kg
- Finish: Powder coating (lvory Glossy)
Perforated A Type Trolley
Application :
- Storage & Transportation of Various Tools
Load Capacity :
- 500 kg UDL max.
Size (mm) :
- 1000 x 600 x 1900
Wheel :
- Castor, MD PU Ø150 x 40 W, 2 Fix, 1 Sw & 1 Sw with Brk
Finish :
- Powder Coating. Structure-RAL 5015.
Specifications:
- Finish: Powder Coating. Structure-RAL 5015
- Capacity: 500 kg UDL max
- Brand: Metafold

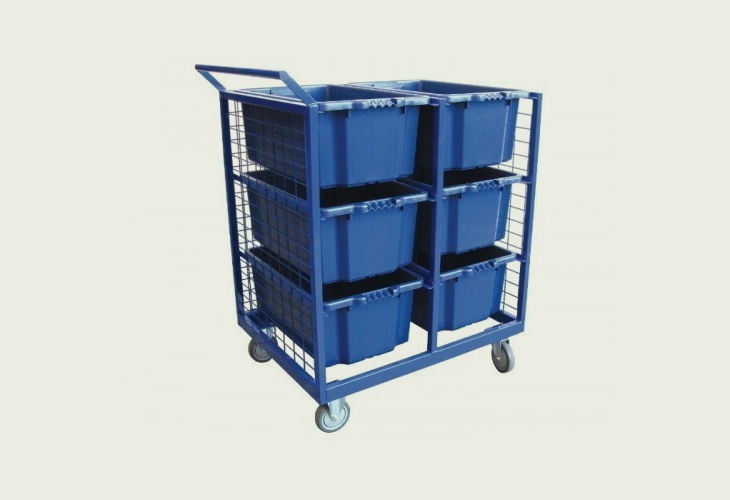

Bin Trolley
Dimension (mm) :
- 425 L x 325 D
- 625 L x 425 D
- 625 L x 425 D
Load Capacity :
- 200 kg UDL
Wheel :
- Ø100 x 35
Finish :
- Powder Coating-RAL-5015
Specification
- Material: Stainless Steel, Mild Steel
- Color: Any
- Brand: Metafold

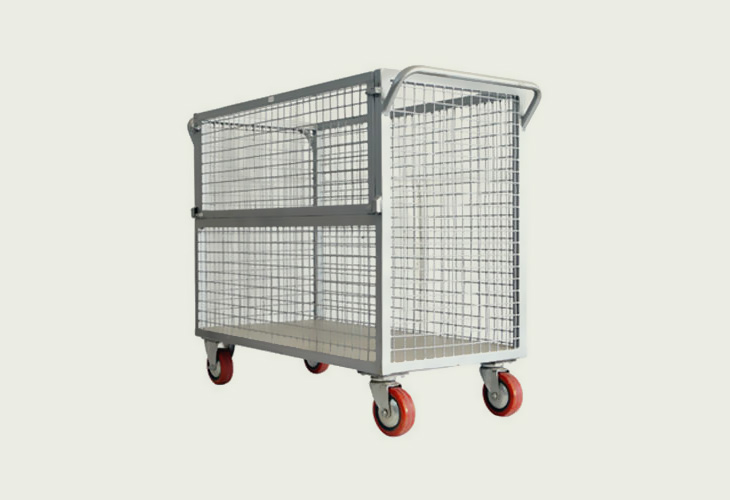

Scrap Wire-Mesh Trolley
Dimension (mm) :
- 900 L x 600 D
- 1200 L x 650 D
- 1360 L x 910 D
Load Capacity :
- 200, 500 kg UDL
Wheel :
- Ø100 x 35, Ø150 x 40
Finish :
- Powder Coating-RAL-1003
Specifications:
- Capacity: 200, 500 kg UDL
- Brand: Metafold
CNC Tool Holder Rack
CNC Tool Holder Rack is manufactured using quality tested steel sheet with triangle-type designed. The racks have taper of 31 for easy access on every level and one side accessibility to carry to holders. This racks helps in organizing different tools in a proper manner and ensures easy accessibility of the tools. Further, these are easily fitted into brackets by screw and are apt for cylindrical shanks.
Features:
- Durability
- Low maintenance
- Rigid construction
- Can carry heavy loads
- Sturdy and strong
- Attractive designs
- Exceptional finish
- Easy to operate and install
Specifications
- Made of steel sheet with Tringle – type designed
- Taper of 310 for easy access on every level
- One side accessibility to carry tool holders
- Standard level is maximum 7 nos
- Dimensions : 640 mm Lx640 mm Wx1660mm H
- Load Capacity: upto 700 kg.
- Finish : Powder Coating (ivory Glossy)
Specifications:
| Product Code | Model Name | Total Qty (No.s) |
|---|---|---|
| MEPL / 00433 | CNC Tool Holder Rack BT 30 | 70 |
| MEPL / 00217 | CNC Tool Holder Rack BT 40 | 56 |
| MEPL / 00218 | C CNC Tool Holder Rack BT 50 | 35 |
| MEPL / 01731 | CNC Tool Holder Rack HSK 63 | 49 |

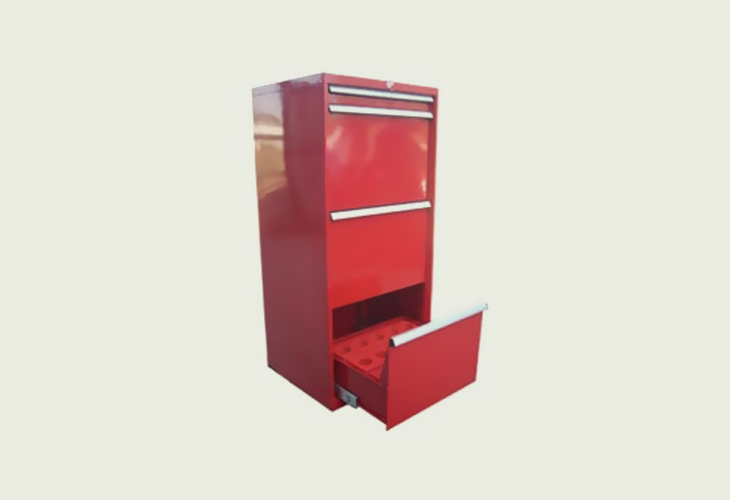

CNC Tool Cabinet
CNC Tool Cabinet System saves more than 50% in wasted labor and allows vital tools to be accurately housed, promptly accessible and safely stored. This cabinet helps in reducing stock loss and amplifies shelf life of tools by keeping stocks secure and clean. Safety in every feature our tool cabinet is outfitted with an exceptional entitled device with central locking. Offered at competitive prices, these cabinets are in extensive demand across the nation.
Features:
- Durability
- Low maintenance
- Rigid construction
- Can carry heavy loads
- Sturdy and strong
- Attractive designs
- Exceptional finish
- Easy to operate and install
Specifications
- SPO – Standard Pull out load Carrying capacity of drawer – 80 kgs. Of UDL
- FPO – Full Pull Out Load Carrying capacity of Drawer – 150 kg.s. Of UDL
- Standard : Drawer Height FPO 425 mm in 3 nos. and SPO 75mm in 1 no
- Drawer : FPO 425 carries tool cabinet Drawer insert which is kept in drawer
- CNC Tool Cabinet includes a central locking system, by a strip lock.
- Finish : Powder Coating / Ivory Glossy
- Power Coating / Cabinet – Deep Blue / Drawers – Ivory Glossy (Metafold Standard)
- Dimension : 670 mm L x 600 mm W x 1450 mm H
40 Series Bottom Shelf Roll Cabinet
Application :
- Storage & Transportation of Machine Tools,
- High value items, Components, Hardware Files, Folders.
Dimension :
- 570 L x 610 D x 810 H (mm).
Features:
- Drawer usable - 460 L x 490 W (mm).
- Top tray 25 mm edge fold all sides.
- Rubber sheet 6 mm black colour on top.
- Handle for easy movement.
- Central locking system of all drawers.
- Castor wheel MD Dia 100 x 35 W, 2 Fix , 1 Sw & 1 Sw on Brk.
Finish :
- Powder Coating.
- Cabinet-RAL 5015.
- Drawers & Partitions-RAL 9001.
Specifications :
- Design Type: Customized
- Brand: Metafold
- Finish: Powder Coating
