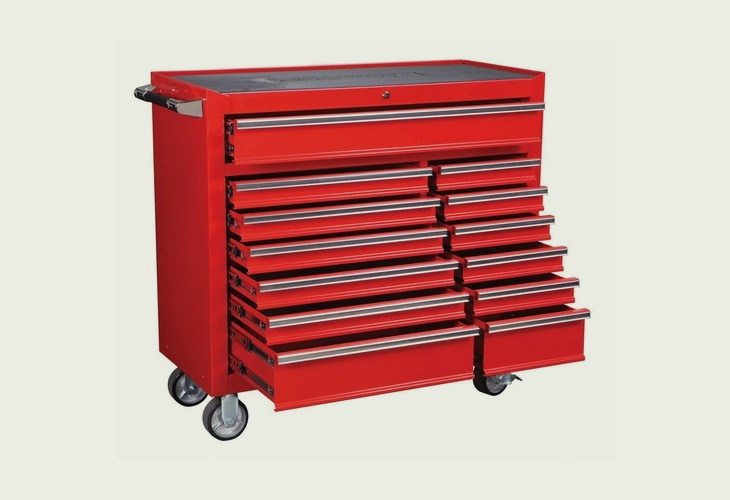

Roll Cabinet
We are providing robust built Roll Cabinet, which is suitable for heavy duty usage. It is especially preferred for shop floors and is built from quality stainless steel metal with double wall construction side panels. Further, the cabinet has welded joints for better rigidity. The roll cabinet has full pullout drawers for extra accessibility and comes with quick release smooth running ball bearing drawers.
These Cabinets are basically used on shop floor the roll cabinets are manufactured using steel sheet with double wall constructed side panels and welded joints that adds sturdiness to the structure. The drawers run on ball bearings and can be pull out fully for easy accessibility with perfect provision of locking arrangements.
Perfo Panel Stand
Application :
- Storage of Various Tools.
Size (mm) :
- Length : 900, 1200.
- Depth : 457, 610.
- Height : 1500.
Finish :
- Powder Coating.
- Structure-RAL 5015.
Specifications :
- Storage Details: Open Storage, Closed Storage
- Primary Material: Solid Wood, Iron, Stainless Steel
- Brand: Metafold
Single & Double Door Machine Side Cabinet
Applications :
- Storage of Machine Tools, High value items
- Components, Hardware Files, Folders
Dimension :
- Machine Side Cabinet : Double Door
- 950 L x 500 W x 950 H (mm).
Specification :
- Double Door with Lock & key.
- Load Capacity: 60 Kg UDL/shelf
- 6mm black color rubber sheet on top surface
- Single drawer of 150 mm height.
- Ground clearance is 150mm
Finish :
- Powder Coating.
- Cabinet & Middle shelf-RAL 5015.
- Drawer, Hinge door-RAL 9001.
Specification :
- Dimension: 500 L x 500 W x 950 H (mm)
- Door: Double Door
- Size: Customized
Perfo & Tube Light Table With Tool Cabinet
Features :
- Load Capacity : 500 / 1000 kg. UDL.
- Length : 1500, 1800, 2000
- Depth : 600, 700
- Height : 850
- Top Thickness (mm) : 36, 48
- Perfo Panel Size (mm) : 610 H x 20 mm Thk.
- Tool Cabinet (mm) : 560 L x 600 W x 800 H
- Bench Vise : 4 Inch or 6 Inch
- 4 Inch Tube Light Fitting
- Surface Box
- Finish : Powder Coating
Specifications:
- Brand: Metafold
- Size: Customized
- Design Type: Customized

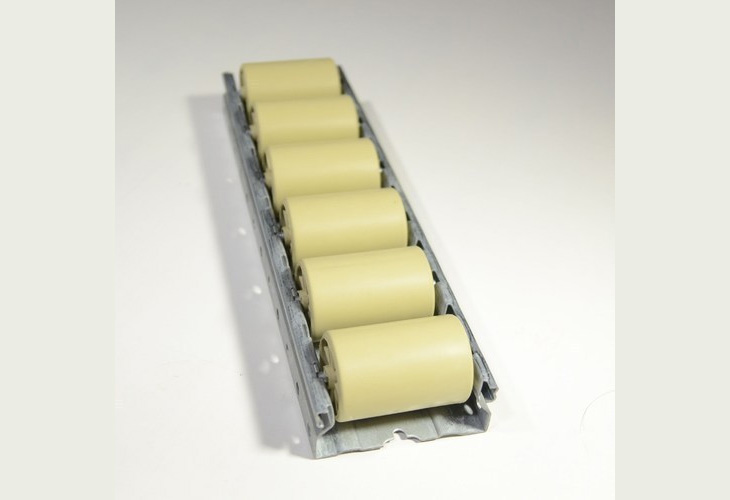

U Track with Plain Wheel
Features :
- Minimum wear and tear provides a better long life
- Small wheel pitches give outstanding uniform distributed loads
- Least friction executes smoothly travelling on stored area
- Wheel riveting with tracks carries out strengthening the load capacities
- High precision construction methods ensure customer satisfaction
Specifications:
- Track Length: 1000, 1250, 1500, 2000 mm
- Track Pitch: 60 & 80 mm
- Ball Bearing: Double, Single
- Brand: Metafold
- Load Capacity: 50 Kg
- Surface Finish: Powder Coating

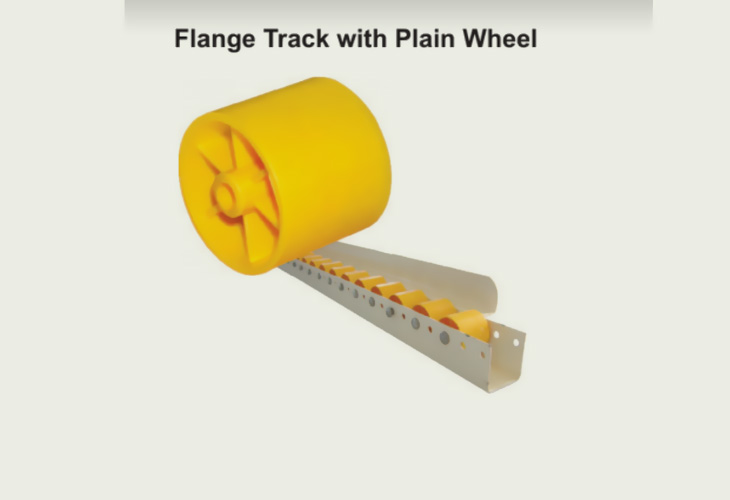

Flange Track with Plain Wheel
Features :
- Track Length (mm) : 1000, 1250, 1500, 2000
- Load Capacity : 10 Kg
- Track Pitch : 34 & 51 mm
- Wheel Material / Colour : Derlin / Mango
- Finish : Powder Coating
- RAL-9001
Specifications:
- Brand: Metafold
- Capacity: 10 Kg
- Finish: Powder Coating
