Tapping Saddles

Tapping Saddles are used for installation of air valves on an existing pipeline without asking for an air Tee. A suitable hole is drilled on the barrel of the pipe over which the saddle is fixed. This arrangement is absolutely leak proof and saves on the cost of one air valve tee and one collar coupling. To achieve good performance the branch size should be ¼ th or less than the main Pipe. Tapping Saddles are manufactured as per the requirement of Customer's to suit different types of Pipe.


Dismantling Joint

Understanding the varied need of our client's , we engage in manufacturing an supplying an illustrative Dismantling Joint. It provides the necessary gap between the adjacent piping and Valves to dismantle the existing line. With its high usability and tested quality, it is highly sought among our clientele.

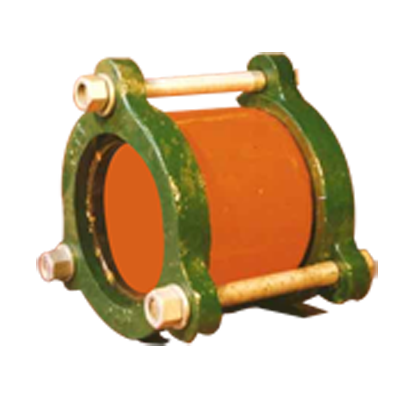

Flexible Collar Couplings
C.I. Jiffy™ Flexible Collar Couplings suitable for joining two plain ends of pipes. It has multiple uses – joins pipes, reverses directions of pipeline, bridges gap in a pipeline. Sizes available from 80 mm to 1000 mm dia.


Patch Clamps

Jiffy™ M.S. Patch Claps are used for repair of longitudinal cracks in DI /CI Pipes. The Clamps has a Rubber Tray which in cases longitudinal cracks for instantaneous repair. Sizes available from 80 mm to 750 mm dia.

Split Collar Cuplin
Design : As per registered Copyright Designs.Material of Construction : In DI (Ductile Iron) as incorporated in ISO & Indian Standards.Material of Sealing Rubber Gaskets : EPDM Polymer - Type 3 of IS: 5382/1985.Hydraulic Testing : As incorporated in Indian Standards / as required by the client.


Flat Rubber Gasket
We offer Flat Rubber Gasket. National-Gaskets offers several flat gaskets, both asbestos containing and asbestos-free, for a wide variety of applications. The types of Gaskets material used depends upon operational stresses and design features, such as the medium to be sealed, operating temperature, internal pressure, assembling conditions and the desired sealing quality. Wherever necessary, appropriate surface treatment and screen printed profiles are provided to enhance seal ability.

Electromagnetic Full Bore Flow Meter
We are instrumental in offering our clients with an immaculate array of Electromagnetic Flow Meter. These meters are stringently tested on varied set parameters to ensure that these are free from defects and flaws. Moreover, these meters can be availed at industry leading prices from us.

D.I. Fitting

D.I Fittings Flexible Collar Couplings Copyright No. A-60379/2001

Flexible Couplings are used to join two spigot ends in a pipeline.It has multiple uses – joins pipes, reverses direction of pipeline, bridges gap in a pipeline.These couplings are available in sizes from 80 mm to 1000 mm dia.

D.I Fittings Leak Repair Clamps Copyright No.A-60377/2001

Vibration due to heavy vechicular traffic, soil movement or improperly fixed rubber gasket can cause a leak at the the Socket and Spigot Joint in a pipeline. C.I Leak Repair Clamp can now permanently seal such leaks in Socket / Spigot Joints of CI/DI/PSC Pipes.Leak Repair Clamps are manufactured as per the requirment of Customer to suit different types of Pipes in the range 80mm to 1500 mm dia.

D.I Fittings Dismanting Joint Copyright No A-60386/2001

Dismantling Joint (Also available in M.S) is an ideal joint for use in Pump House Installations. They are immense help in creating enough space for easy and convenient removal / relacement of the flanged fittings for periodic maintaince.They also insulate the pipeline from pump vibrations. These Dismantling Joints are available in sizes from 80 mm to 1000 mm dia.

D.I Fittings Split Collar Cuplin

C.I Split Collars are very useful to repair of both longitudinal and circumferential cracks on a pipeline without interrupting the supply of water. The available range is from 80 mm to 1000 mm dia.

D.I Fittings Socket Tailpiece (Flanged Adapter) Copyright No A-60378/2001

C.I Jiffy Flanged Socket Tailpieces are used to connect Flanged Fittings to the plain end (spigot end) of D.I / C.I / A.C / M.S. Pipes. These adapters are ideal for connecting VALVES, WATER METERS, PUMPS etc. in your pipelines. These Tailpieces are available in sizes from 80mm to 1000 mm dia.
