Lifting Chain :

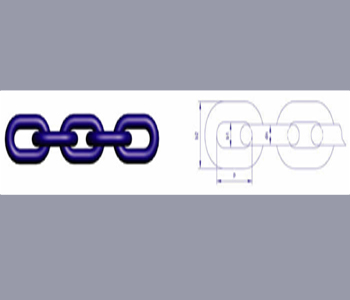

| Dn | Inside Lenght (p) | Width | Working Load Limit | ||||
| Size | Allowed Torelance | Ultimate Torelance | Max,Inside Length | Min,Inside Length | Inside Width (b1) | Outside Width (b2) | |
| 6 | ±0.24 | 18 | 18.5 | 17.5 | 7.8 | 22.2 | 1.12 |
| 7 | ±0.28 | 21 | 21.6 | 20.4 | 9.1 | 25.9 | 1.5 |
| 8 | ±0.32 | 24 | 24.7 | 23.3 | 10.4 | 29.6 | 2 |
| 10 | ±0.4 | 30 | 30.9 | 29.1 | 13 | 37 | 3.15 |
| 13 | ±0.52 | 39 | 40.2 | 37.8 | 16.9 | 48.1 | 5.3 |
| 16 | ±0.64 | 48 | 49.4 | 46.6 | 20.8 | 59.2 | 8 |
| 18 | ±0.9 | 54 | 55.6 | 52.4 | 23.4 | 66.6 | 10 |
| 19 | ±1 | 57 | 58.7 | 55.3 | 24.7 | 70.3 | 11.2 |
| 20 | ±1 | 60 | 61.8 | 58.2 | 26 | 74 | 12.5 |
| 22 | ±1.1 | 66 | 68 | 64 | 28.6 | 81.4 | 15 |
| 23 | ±1.2 | 69 | 71.1 | 66.9 | 29.9 | 85.1 | 16 |
| 25 | ±1.3 | 75 | 77.3 | 72.8 | 32.5 | 92.5 | 20 |
| 26 | ±1.3 | 78 | 80.3 | 75.7 | 33.8 | 96.2 | 21.2 |
| 28 | ±1.4 | 84 | 86.5 | 81.5 | 36.4 | 104 | 25 |
| 32 | ±1.6 | 96 | 98.9 | 93.1 | 41.6 | 118 | 31.5 |
