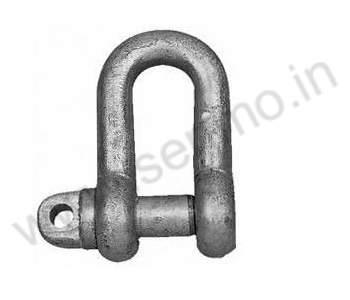

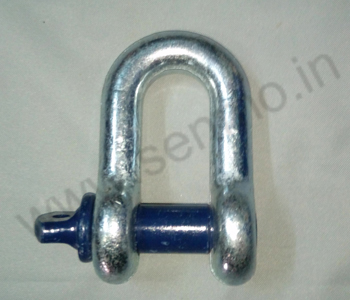

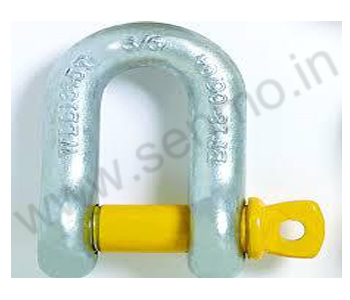

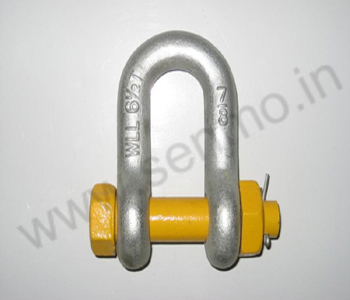

Shackle

Working load S6 grade: 1t-55t T8 grade is high quality structural alloy steel; The maximum testing load is 2times of the working load,the minimum breaking load is 4 times of working load. The products in accordance with the technical requirements and testing methods of ISO2415-2004.

WLL W D d E P S L Self Weight
1 17 12 9.5 23 9.5 32 52.5 0.13
1.5 19 14 11 27 11 36.5 62 0.2
2 20.5 16 13 30 13 41.5 70.5 0.27
3.25 27 20 16 38 16 51 88 0.57
4.75 32 22 19 46 20.5 60.5 102.5 0.99
6.5 36.5 27 22.5 53 24.5 71.5 121 1.57
8.5 43 30 25.5 60.5 25.5 81 139 2.3
9.5 46 33 29 68.5 32 91 153 3.42
12 51.5 36 32 76 35 100 168.5 4.48
13.5 57 39 35 84 38 111 184.5 6.46
17 60.5 42 38 92 41 122 199 7.65
25 73 52 44.5 106.5 54 146 237 12.48
35 82.5 60 51 122 51 171.5 271 18.63
55 105 72 66.5 144.5 66.5 203 341 36.02
