The pin and wedge system is simple and fast, allowing unskilled labor to be quickly trained in the use of the equipment. Standard pins and wedges increase efficiency in any application, while pecial applications such as laydown, corner, and radius applications are made simpler with WTF specialty pins and wedges.

Straight Wedge

Wedges are used with pins to tighten adjoining concrete forms. Securing the tie and concrete form in place. Typical connection with pin and straight wedge

Straight Wedge

Wedges are used with pins to tighten adjoining concrete forms. Securing the tie and concrete form in place. Typical connection with pin and straight wedge

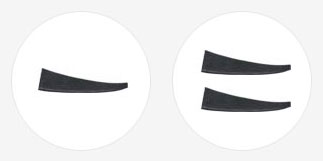

Curved Wedge

Curved wedges have the same function as straight wedges but the curved shape allows for easy insertion and less risk of damage to face of concrete form.

Flathead Pin

The flathead pin is used when pinning through a single rail or when placing concrete against an existing wall. Also used in laydown applications, such as 36" x 96" panel, to pour a 36" tall concrete wall. For smooth wall applications ONLY!

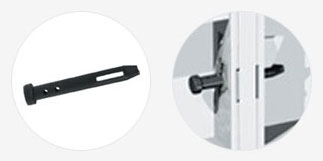

Combination Filler Pin with Head

This pin passes completely through 2" aluminum fillers and connects adjoining panels with a wedge. To convert to either 1" or 1½" filler simply insert duplex nail in the appropriate hole.
Combination with head - 1", 1½", 2"

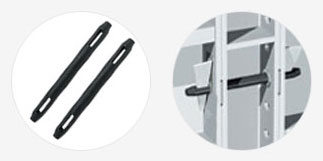

Straight Filler Pin

These pins pass through appropriate size fillers and are connected to adjoining panels with wedges.

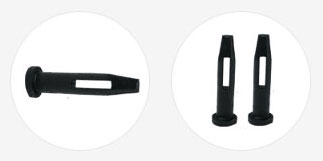

Pax Pin

Pax pin is slightly longer than our standard pin. Used with pax forms and special applications.
