New Technology
Evaporator without a Condenser, Spray Pond & Cooling Tower
SSP PVT LIMITED has developed an evaporator, where no condenser, a spray pond & a cooling tower is required. This technology will save lot of energy and shall also save cost in terms of recurring expenditure & infrastructure.
SSP is striving hard to bring tomorrows technology today. It’s only possible because of SSP’s in depth knowledge about the Evaporation Technology.

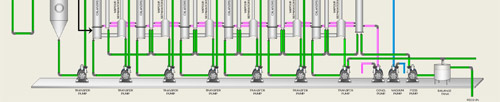

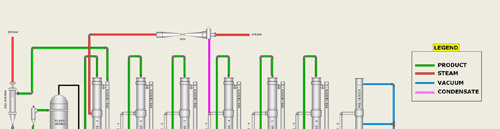

Flow diagram of six effect evaporator |

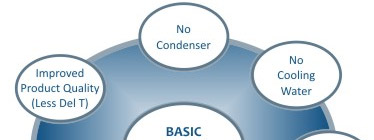

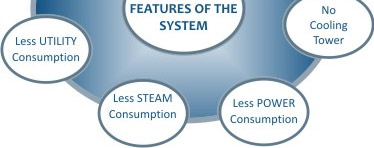

Innovation - Evaporator without Condenser |
Technical Specification
MILK POWDER PLANT (SMP)- CAPACITY 1 TPH POWDER OUTPUT | ||
EVAPORATOR | ||
EVAPORATOR FEED RATE | 12,936 | KG/HR |
INITIAL TOTAL SOLIDS | 7.5 | % |
FINAL SOLIDS | 45 | % |
CONCENTRATE OUTPUT | 2156 | KG/HR |
WATER EVAPORATION | 10,780 | KG/HR |
DRYER | ||
FEED RATE | 2156 | KG/HR |
INITIAL SOLIDS | 45 | % |
FINAL MOISTURE IN POWDER | 3 | % |
POWDER OUTPUT | 1000 | KG/HR |
Utility Comparisons | ||
DETAILS | 5 Effect Evaporator (Conventional) | 6 Effect Evaporator (Modified) |
Water Evaporation (kg/hr) | 10,780 | 10,780 |
Steam Consumption at TVR (kg/hr) | 1600 | 1263 |
Cooling Water circulation for Condenser (m3/hr) | 80 | Nil |
Power | ||
For Main Plant | 45 | 45 |
For Cooling tower and cooling water pump | 20 | Nil |
Total Power (kW) | 65 | 45 |
