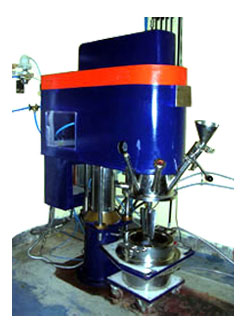

Planetary Mixer

For the processing of sensitive & hazardous heterogeneous compositions containing low to medium viscosity resins/binders & various dried particulate fillers having different particle size ( less than 1 micron to 300 micron) under high vacuum. Intimate mixing of these ingredients is must to ensure uniform mix. End of Mix viscosity to these compositions may vary from 50 poises to 80000 poises at 25°C. For removal of moisture & occluded gas / air from high viscosity composition, application of high vacuum of 0.1 mm of Hg is necessary during mixing. For very viscous compositions initial circulation of hot water through mixer jacket is essential and to avoid sudden rise in viscosity after addition of curing agents cold water circulation through jacket is required. The Planetary mixer unit consist of a Mixer, bowl with trolley, hydraulic drive unit, remotely operated control system with PLC & SCADA along with power back up system for PLC & close circuit camera & color Monitor for remote viewing, during Mixer Operation.

The Planetary mixer machine is basically mixing assembly wherein the agitation pattern is of a planetary nature. If offers optimum output as these are installed with gearbox, variable speeds with electronic control. Further, our range can be customized as required by our clients. The blade movement and up-down movement is done through hydraulic system, so that electrical contact is avoided. CCTV is provided to see the operation in remote working PLC along with SCADA operates the full system from a safe distance.

We offer wide range of planetary mixers for Defense industry which are manufactured in different specifications and capacities. With excellent deaeration, these planetary mixers prevent the paste from becoming lumpy. With robust construction and durability, these planetary mixers are widely used for mixing, degassing and kneading viscous and heat sensitive pastes. We also offer tailor made requirements. The speed of planetary mixers ranges from 1rpm to 100 rpm. We can obtain products containing solids Upto 85% in the final mixture.

Material of Construction (MOC) Offered : - CS (IS 2062 Gr A/B, SA 516 Gr 60/70, BQ), SS 316, SS 304, SS 316 L, SS 304 L. SS 310, MONEL, INCONEL, TITANIUM, HASTALLOY, ETC.
