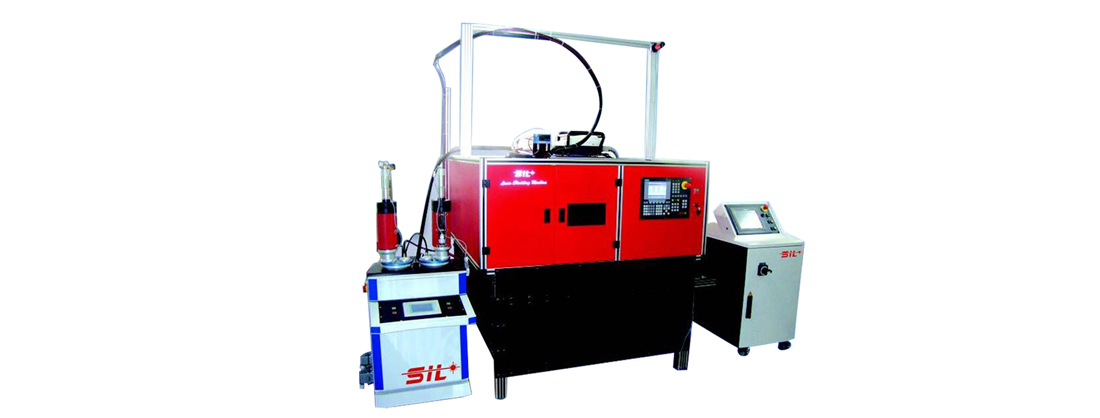

Laser Cladding Machine

Suresh Indu lasers, Pvt, ltd, Pune manufacturer of industrial laser system, has manufactured laser cladding System probably first in India. With 2.8 KW fiber coupled Diode laser and a coaxial powder-feeding nozzle for Porosity free and near crack free nickel based coatings with high content of globular tungsten carbide (WC) are applied to metal surface. The process reduces the operational cost of conventional CO2 systems by at least factor of three and lowers investment cost by utilising smaller laser systems. Our laser cladding system is extremely compact size, ease to operate, high wall plug efficiency; lower investment and running for laser cladding, especially in an industrial environment.

Laser Cladding Principle:

Metal Surface-enhancing process performed by applying a powdered metal material on to the base surface, with a laser bond with minimal dilution, nominal melting and small Heat affecting zone.

Features

  • High bonding Strength
  • Low Dilution
  • Metal and ceramic coating materials
  • 50m to 2mm coating thickness
  • High repeatability low heat affected zone HAZ

Specifications

Laser
Laser Type Diode Laser
Wavelength 808 / 940nm +-10nm
Laser Power 2.8 kW
Power range 300 – 2800 W
Min-Spot Size 0.8 x 1.3mm
Shortest focal length 66mm
Working Distance 42mm
Fiber Coupling 1.5mm dia. 0.35 NA
Powder Feeder
Controller Siemens
Area flow measurement for optical control Dual variable
Powder delivery Unit Dual Driven
Container volume 1.5 ltr
Disk With groove 2 Nos
Mixer 2 Nos
Flow meters 2 Nos
Heating Jackets 2 Nos
Table
X 1000mm
Y 1000mm
Z 100mm
Accuracy 50um
Repeatability 25um
Optional Chiller unit- Di-Humidifier laser goggles- UPS.
