Resolution |
± 0.03/300 mm |
Repeatability |
± 0.02 mm |
Lathe structure |
Cast steel with stand/ Welding steel structure |
X, Y working accuracy |
|
X, Y, Z Structure |
Ball screw and linear rails/ Rack pinion, ball screw linear rails |
Table |
T,slot/ vacuum bed/ water bed |
Linear guide |
Hg 20 for X, Y, Z |
CNC spindle |
2.2 KW, 3.5 KW, 4.5 KW, 6.0 KW, 9 KW, 12 KW air cooling/ water cooling spindle |
Max. speed |
0,24000 rpm |
Max. working speed |
0,18000 rpm |
Max. consume power |
3.6 KW/ 3.6 KW/ 5.4 KW/ 7.2 KW |
Spindle speed |
0,18000 rpm/ 0,24000 rpm |
Working mode |
Stepper |
Command code |
G code (*nc, *mmg, *plt, *cnc) |
Operating system |
NC studio or DSP control system |
Interface |
Printer port 50 pins or USB |
Working voltage |
AC 220V, 50/60 Hz, single phase / AC 220V/ 380V, 50/60 Hz, 3 phase |
Dust Collector |
With dust collector hood/ 2.2 KW, dual bags, 220V, 1 ph |
Memory |
128 MB ( or flash drive ) |
Optional 1 |

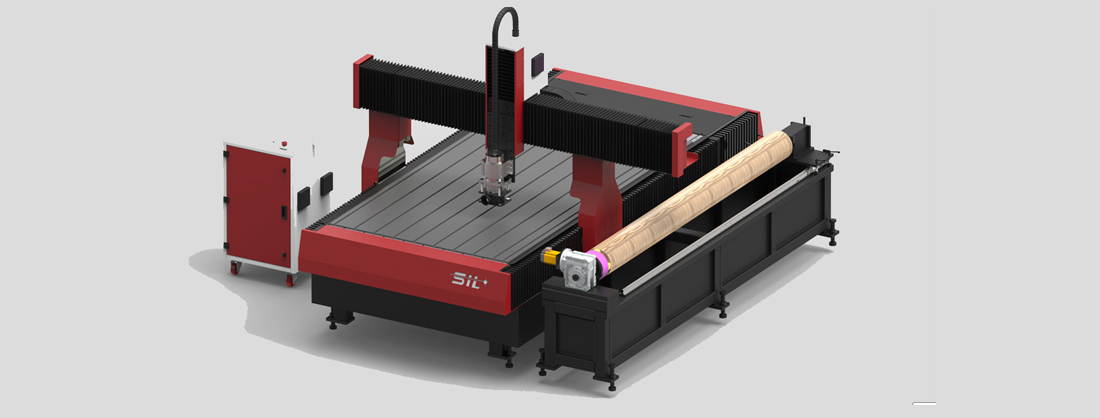

Rotary attachment, diameter 125 mm, length 1300 mm |
Optional 2 |
Original artcam software |
Optional 3 |
Vacuum absorption/ water bed with T, slot table |
