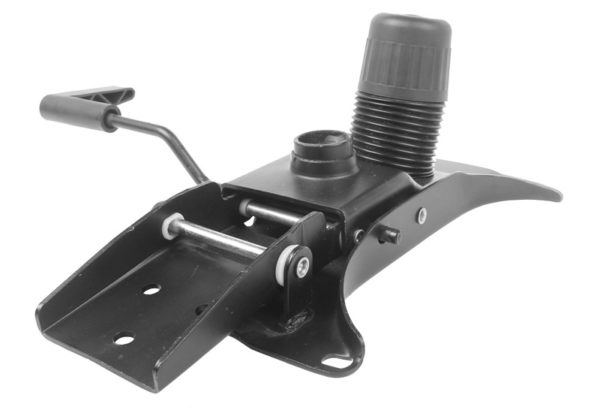

10 x 6 Synchro
Part Name : 10×6 Synchro
Part No. : 0IS02APC01
Description : Synchro mechanism with extra length to cover more area of seat ply giving maximum support.
Initial seat angle of 3 degrees. Full recline angle of seat 19 degrees and back 25 degrees.
Centre Tilt Synchro mechanism with Synchro ratio of 1 : 1.25 ensures ergonomical working.
Common lever provided for locking and up/down adjustment. Makes chair usage easy and uncomplicated.
Horizontal movement of the lever to engage and disengage lock at upright position.
Rotational movement of the lever to operate gas spring and adjust chair height to user specification.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.

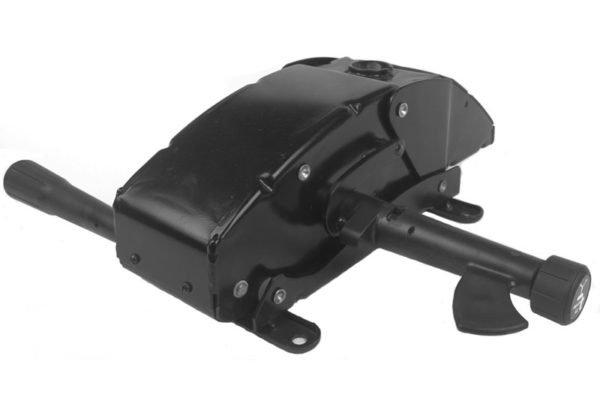

4 Bar
Part Name : 4 Bar Mechanism
Part No. : 0FB01APC01
Description : 4bar is a four-link mechanism with four revolute joints, designed and developed entirely in-house. Its functionality, comfort and several innovative features make it suitable for us in medium and high end office chairs.
- Quick and low torque tension adjustment, Ergonomically located on the side,with minimum & maximum indicator.
- 6 position tilt-limiter with anti-shock function.
- Highly ergonomicalsynchronous tiltingfunction with backward sliding seat, which maintains distance between the back and seat avoiding shirt pull.
- up to 20° of backrest movement
- Height adjustment and swivel function
- very well balanced synchronized behavior (2:1 ratio)
Self-explanatory and ergonomically located paddles for all mechanism operations.

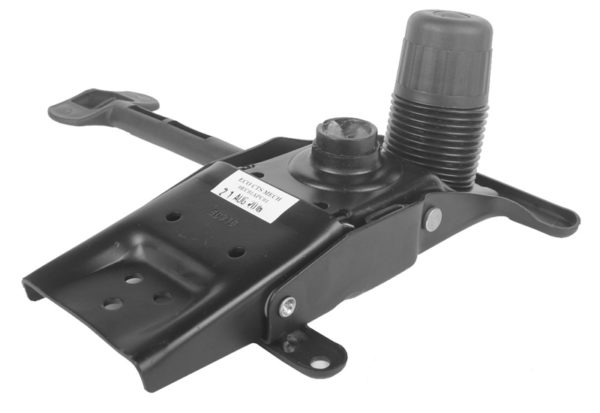

Eco CTS
Part Name : Eco CTS Mechanism
Part No. : 0EC01APC01
Description : Synchro mechanism designed and developed completely In-house by Surya's team of dedicated engineers.
Initial seat angle of 3 degrees. Full recline angle of seat 10 degrees and back 22 degrees.
Centre Tilt Synchro mechanism with Synchro ratio of 1 : 2 ensures ergonomical working and maximum comfort.
Common lever provided for locking and up/down adjustment. Makes chair usage easy and uncomplicated.
Horizontal movement of the lever to engage and disengage lock at upright position.
Rotational movement of the lever to operate gas spring and adjust chair height to user specification.
Full length plastic knob provided to cover lever bar giving better aesthetical appeal to the mechanism.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.

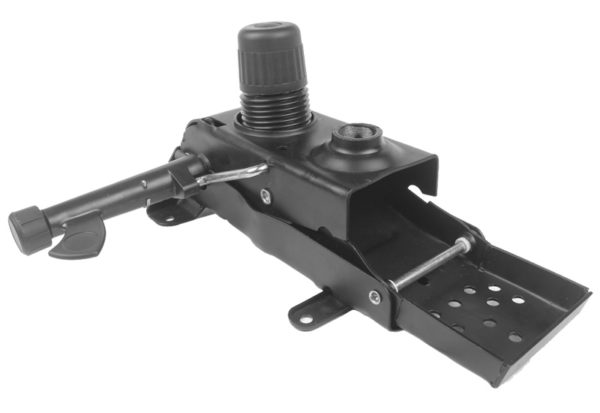

KTS
Part Name : KTS Mechanism
Part No. : SD0KY000
Description : Synchro mechanism designed and developed completely In-house by Surya's team of dedicated engineers.
Initial seat angle of 2 degrees. Full recline angle of seat 11.5 degrees and back 21 degrees.
Synchro mechanism with Synchro ratio of 1 : 2 ensures ergonomical working and maximum comfort.
"Knee Tilt" feature helps user keep his/her feet firmly on the ground even in full recline position providing enhanced stability.
Common lever provided for locking and up/down adjustment. Makes chair usage easy and uncomplicated.
Rotational movement of knob at the end of lever to engage and disengage lock at four different positions.
Rotational movement of the lever paddle to operate gas spring and adjust chair height to user specification.
Full length plastic knob provided to cover lever bar giving better aesthetical appeal to the mechanism.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.

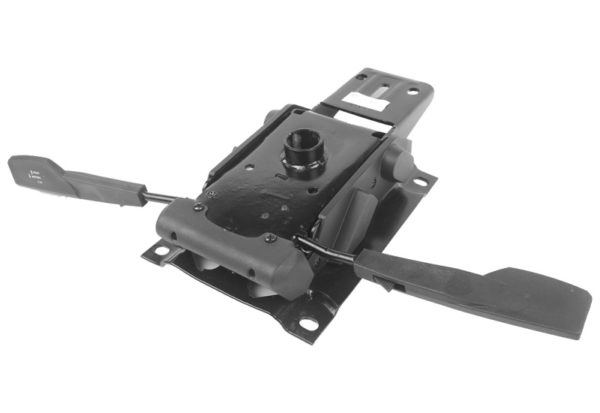

Self Weight Adjusting Mechanism
Part Name : Self Weight Adjusting Mechanism
Part No. : 0SA01APC01
Description : Due to self weight adjusting feature, this mechanism is most suitable for chairs which are used round the clock by different users.
Initial seat angle of 1 degrees. Full recline angle of 20 degrees, with certain amount of backward seat slide.
Horizontal front back movement of lever paddle to engage and disengage lock at four different positions.
Vertical up/down movement of lever paddle to operate gas spring and adjust chair height to user specification.
Full length plastic knob provided to cover lever bar giving better aesthetical appeal to the mechanism.
Spring tention adjustment not required since mechanism adjusts itself as per the user weight, by transferring force applied for back recline to lift seat of the user.
This helps avoid bulky spring protruding outside of the mechanism. Gives a very sleek and compact look to the mechanism.

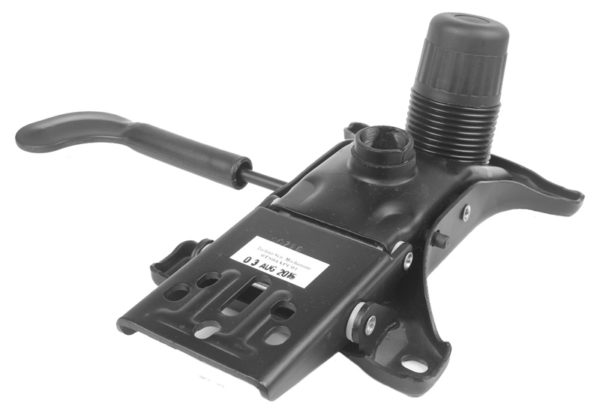

Techno Synchro
Part Name : Techno Synchro
Part No. : 0TS01APC02
Description : Initial seat angle of 3 degrees. Full recline angle of seat 11 degrees and back 25 degrees.
Centre Tilt Synchro mechanism with Synchro ratio of 1 : 2 ensures ergonomical working and maximum comfort.
Common lever provided for locking and up/down adjustment. Makes chair usage easy and uncomplicated.
Horizontal movement of the lever to engage and disengage lock at upright position.
Rotational movement of the lever to operate gas spring and adjust chair height to user specification.
Full length plastic knob provided to cover lever bar giving better aesthetical appeal to the mechanism.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.
