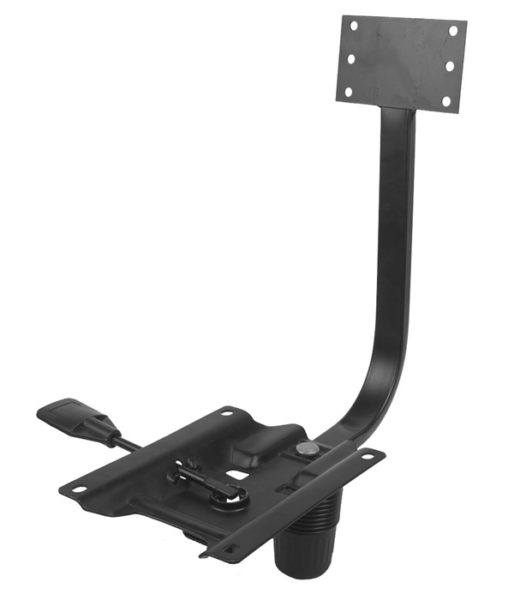

Apple Pushback with Spine
Part Name : Apple Push Back with Spine
Part No. : 0AP02APC01
Description : Push Back mechanism with compact design for maximum economic benefit.
Initial seat angle of 0 degrees and Full recline angle of 30 degrees ensures ergonomical working.
Mechanism provided without locking lever as a low cost task chair mechanism
Up/down movement of Gas Spring lever to operate gas spring and adjust chair height to user specification.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.
Back connecting spine made out of rectangular tube gives maximum value for money.
Available with extra back mounting plate to accommodate any plastic molded imported back.

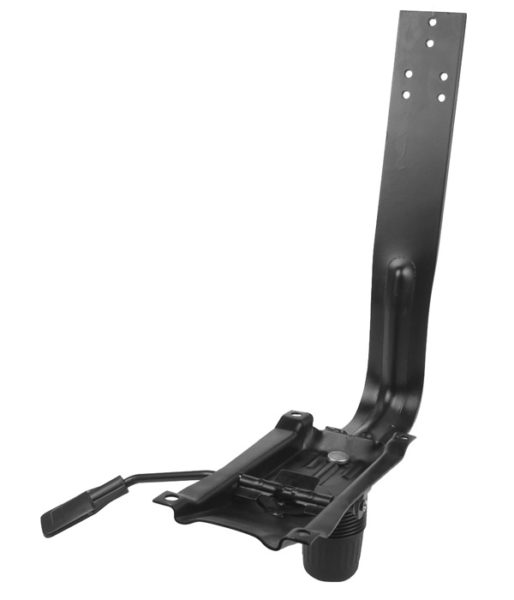

Eco Back Tilt with Spine
Part Name : Eco Back Tilt with Spine
Part No. : AD0BE000
Description : Push Back mechanism with compact design for maximum economic benefit.
Initial seat angle of 3 degrees and Full recline angle of 20 degrees ensures ergonomical working.
Horizontal movement of Locking lever to engage and disengage lock at upright position.
Rotational movement of Gas Spring lever to operate gas spring and adjust chair height to user specification.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.
Integrated back connecting spine built into mechanism. Suitable for local supply and not for long distance deliveries.
Available with extra back mounting plate to accommodate any plastic molded imported back.

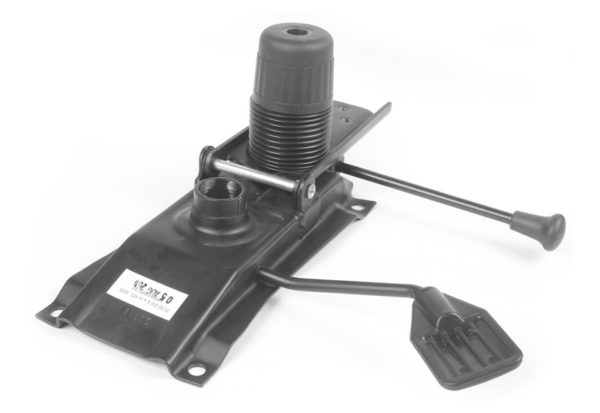

Sleek Push Back Mechanism
Part Name : Sleek Push Back Mechanism
Part No. : 0PB01APC01
Description : Push Back mechanism with compact design to give maximize economic benefit.
Initial seat angle of 3 degrees and Full recline angle of 20 degrees ensures ergonomical working.
Horizontal movement of Locking lever to engage and disengage lock at upright position.
Rotational movement of Gas Spring lever to operate gas spring and adjust chair height to user specification.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.

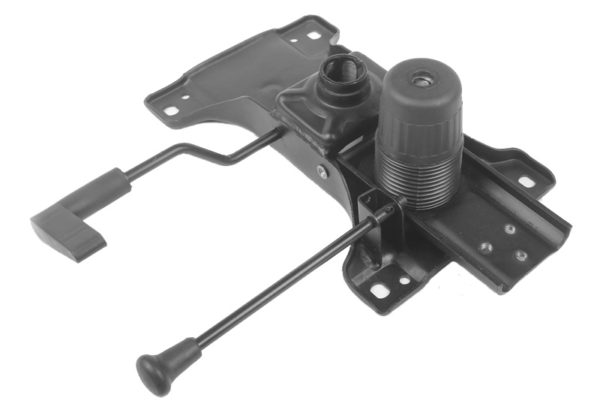

Smart Push Back
Part Name : Smart Push Back Mechanism
Part No. : 0PB04APC01
Description : Push Back mechanism with extra length to cover more area of seat ply giving maximum support.
Initial seat angle of 3 degrees and Full recline angle of 19 degrees ensures ergonomical working.
Horizontal movement of Locking lever to engage and disengage lock at upright position.
Rotational movement of Gas Spring lever to operate gas spring and adjust chair height to user specification.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.

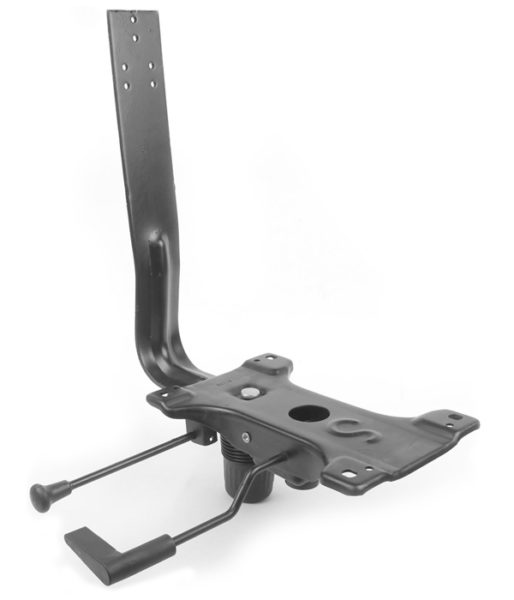

Smart Push Back with Spine
Part Name : Smart Push Back with Spine
Part No. : AD0BE003
Description : Push Back mechanism with extra length to cover more area of seat ply giving maximum support.
Initial seat angle of 3 degrees and Full recline angle of 20 degrees ensures ergonomical working.
Horizontal movement of Locking lever to engage and disengage lock at upright position.
Rotational movement of Gas Spring lever to operate gas spring and adjust chair height to user specification.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.
Integrated back connecting spine built into mechanism. Suitable for local supply and not for long distance deliveries.
Available with extra back mounting plate to accommodate any plastic molded imported back.
