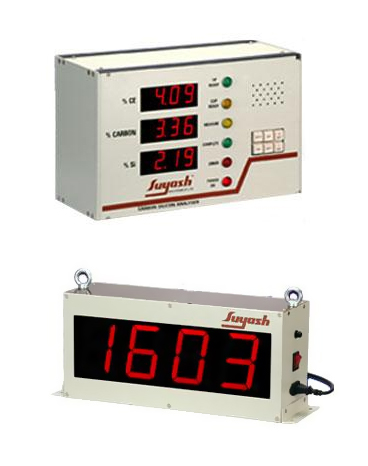

CARBON SILICON ANALYSER
CARBON SILICON ANALYSER
SUYASH CARBON SILICON ANALYSER DOES NOT NEED FREQUENT CALIBRATION. OPERATES FROM -20 °C to 55 °C.
Specifications :
- Very accurate , fast process using latest microprocessor. Analysis within 75 seconds.When used with Suyash Patented Supercups, give readings in 45 to 55 seconds.
- 3 separate digital displays for %C.E. , %C, %Si.
- Suitable for Grey Iron, S.G. Iron (Ductile Iron) and Malleable Iron.
- User friendly. No special training essential.
- Built-in Data storage capacity up to 96 records.
- Self diagnosis for various Errors during the process.
- Optional printer attachment for collective printed data.
- Practically maintenance free.
- Computer interfacing using serial port for transfer of readings to computer ( Optional ).
Carbon Silicon analyzer Models and specifications
| MODEL 3 | ONLINE | STEEL | ||
|---|---|---|---|---|
| Accuracy |
|
|
|
|
| Recommended Use | C.I/S.G/M.C.I | C.I/S.G/M.C.I | Steel C.I/S.G/M.C.I | |
| Temp Measurements With Tips | Provided | Provided | Provided | |
| Number Of Channels | 3 | 3 | 3 | |
| Graphical PC Interface | -- | Provided | -- | |
| Data Transfer to Computers | Provided | Provided | Provided | |
| 4" Jumbo Display | Optional | Optional | Optional | |
| Processing Time | 50 Sec | 50 Sec | 30 Sec for steel 2 to 50 Sec for CI/SG/MCI | |
| Printing | Parallel Port | From computer | Serial & Parallel Port | |
| Operating Range | -20 to +55 °C | -20 to +55 °C | -20 to +55 °C | |
| Voltage STD/ optional | 200 to 260 V/ 110V | 200 to 260 V/ 110V | 200 to 260 V/ 110V | |
| Frequency | 50 / 60 Hz, ± 2% | 50 / 60 Hz, ± 2% | 50 / 60 Hz, ± 2% | |
| Display | 25mm LED Hi Glow Type | 25mm LED Hi Glow Type | 25mm LED Hi Glow Type | |
| Memory | 96 Readings | 96 Readings | 96 Readings | |
