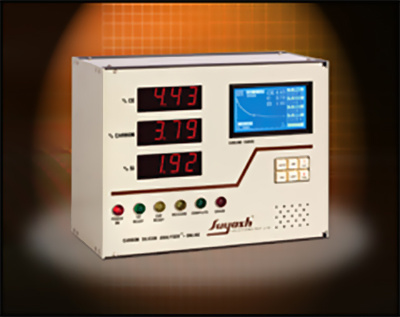

Suyash ONLINE SG Iron

Salient Features :

• Actual cooling curve is stored.
• Job-wise parameters and target values are stored and used.
• Existing equipments can be upgraded to ONLINE.
• Colour codes for different types of metals for convenience.

Features with CE cups :

• Nodularity
• Nodule Count
• Secondary shrinkage
• Solidification mode of treated metal : Hypo-Eutectic, Eutectic, Hyper-Eutectic or their combination is detected. Carbides detection
• Residual Magnesium detection

Features with Carbon cup :

• Can analyse composition of very high CE values.
• Target levels for each job to alert the operator.
• Job, Heat / Melt number, Iron type are stored for data analysis.
• Job wise charge calculation can be seen.
• Facility to feed composition of Steel, Pig iron, returns etc to calculate charge mix.
• Recommended alloy addition from results of Spectrometer / Carbon Silicon Analyser is displayed.

Suyash ONLINE Cast Iron

Salient Features :

• Job name, heat number, Iron type stored with curve for data analysis.
• Various target levels are set for each job to alert the operator.
• Detects several points on cooling curve to understand behaviour of solidification.

Features with CE cups :

• Prediction of microstructure (type A, c, D/E)
• Undercooling and Recalescence
• Eutectic Cell Count
• Degree of saturation
• Shrinkage tendency
• Chilling tendency
• Innoculation factor

Features with Carbon cup :

• Job wise charge calculation can be seen.
• Facility to feed composition of Steel, Pig iron, returns etc in order to calculate suitable charge mix.
• Complete log sheet is maintained.
• Recommended additions are displayed after cup is poured.
• Micro shrinkage tendency is predicted by detection of low melting point alloys like phosphide eutectic etc.
• Hardness and Tensile strength of unalloyed cast iron.
