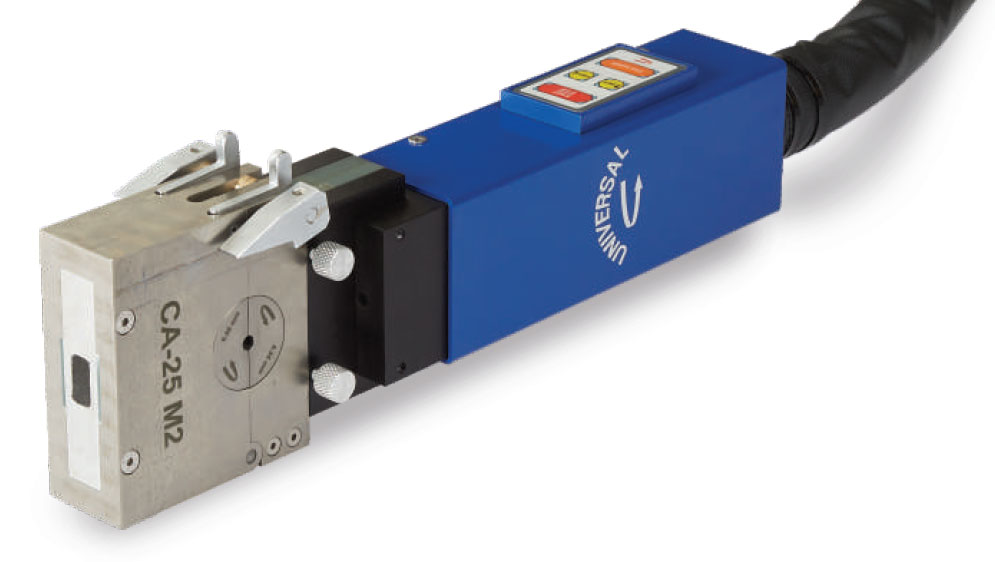

Orbital Welding Closed Arc Weld Head CA-25 M2

Technical Specification
Description Unit CA 25
Diameter of Work Piece mm 6 to 25.4
Speed Range Rot/min 0.4 to 4
Power Watts 25
Weight Kg 3
Cable Length Mtr 8

Features

  • Ideal for tube and micro fitting
  • Removable clamping systems
  • Compact design to permit use in situations where access is limited
  • Shielded-gas chamber to prevent OD discoloration
  • Quick Change Collets Systems
  • Welding on actual position
  • Simple & Rugged Design
  • DC Motor with Encoder

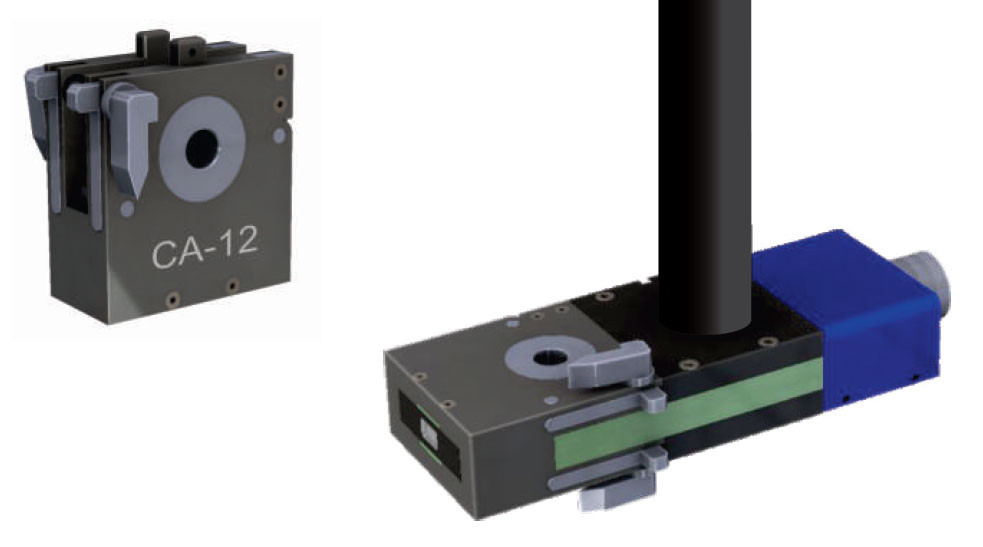

Orbital Welding Closed Arc Weld Head CA-12

Technical Specification
Description Unit CA 12
Diameter of Work Piece mm 3 to 12.7
Speed Range Rot/min 1.6 to 16
Power Watts 25
Weight Kg 2
Cable Length Mtr 8

Features

  • Ideal for tube and micro fitting
  • Removable clamping systems
  • Compact design to permit use in situations where access is limited
  • Shielded-gas chamber to prevent OD discoloration
  • Quick Change Collets Systems
  • Welding on actual position
  • Simple & Rugged Design
