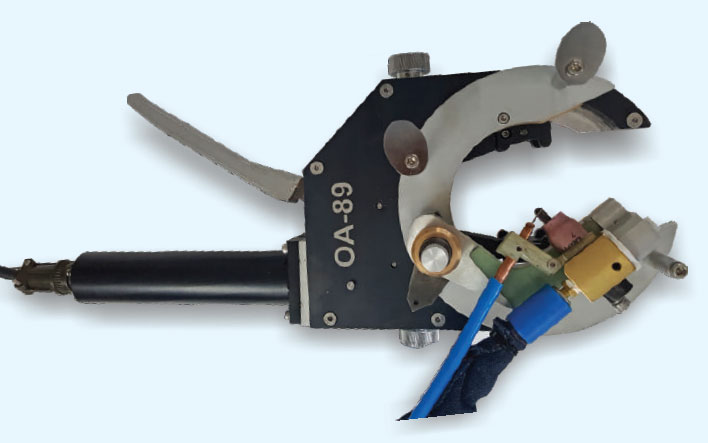

Open Arc Weld Head OA-89

Technical Specification
Tube Diameter 25 mm to 77 mm
Welding current 200 A
Welding Process GTAW with filler wire
Tungsten Dia 1.6 / 2.4 / 3.2 mm
Weight 6 kg
Cable length 8 mtr
Welding position Horizontal / Vertical
Wire Diameter 0.8, 1.2 mm

Features

  • Compact Design
  • With & without cold wire feeder unit
  • water cooled torch for continuous operation
  • Infinitely variable clamps with self centering
  • Mechanical AVC for adjusting ovality of the pipes
  • Can be used without filler and with filler wire
  • Weld head can be easily centered to te pipe with centering knob
  • Torch sevelling possible for welding Flanges
