GCU - 104
GCU - 104
Description :

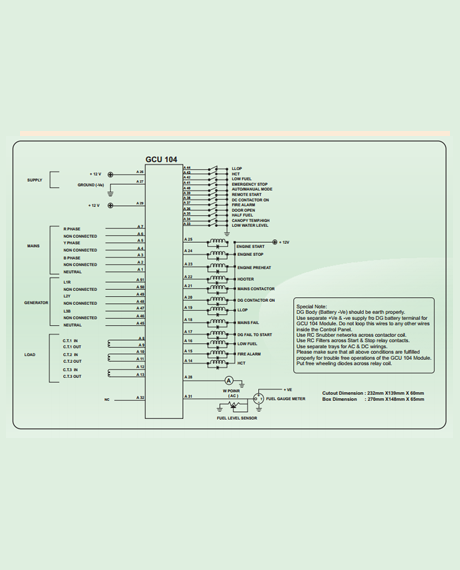

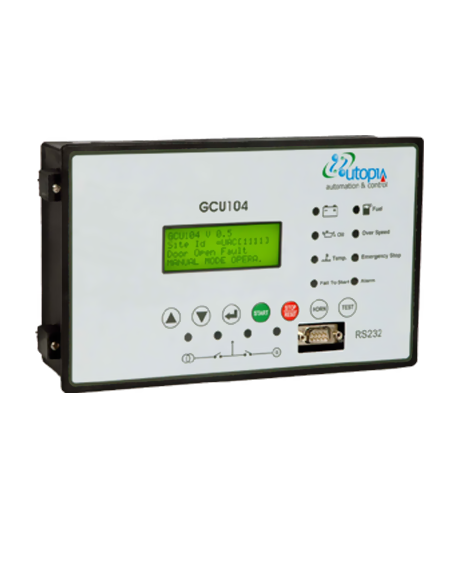

GCU-104 is a 3-phase Automatic / Manual Generator controller module including protection for (STANDBY) GEN-SETS. It uses an advanced single chip microcomputer for an easy and trouble free GEN-SET control in case of mains power failures. If mains fail (over / under voltage, loss of mains voltage), GCU-104 initiates an automatic GEN-SET start cycle including load transfer to the generator by switching the generator contactors. After the main is restored the load will be automatically transferred back to mains and the GENSET will stop after a cool down time. During all cycles, generator is fully protected against malfunction. All alarms occurring at abnormal GEN-SET conditions are computed and displayed either by LED or by LCD display and if necessary the GEN-SET gets stopped.
Values of over/under voltage, frequency and overload current, cooling down time is programmable. The GCU-104 has 30 powerful programmable parameters to fit the program flow to customer needs.
Download BrochureSpecifications :-
- SUPPLY- 8V to 16 V
- CURRENTTRANSFORMER- 5 Amp.
- VAC INPUTS RATINGS- 90 - 300 V @ 50Hz
- VAC MAXIMUM OVER VOLTAGE -600 V
- SOLID STATE OUTPUT -500 mA
- DIGITALINPUTS -16V Dcmax/Engine Ground
- WEIGHT -800 gms
- OPERATING TEMPRATURE -0 to 70 degree Cent.
- DISPLAY ACCURACY + / - 2% of F.S.D.
- WARRANTY -1 Year.
Features :
- Display of Generator Phase 1,2,3 Voltages
- Display of Mains Phase 1,2,3 Voltages.
- Display Load Current Phase 1,2,3.
- Display of Date & time, load Current.
- Display of Mains & DG KWH
- Display of Power Factor of R, Y, B
- Display of DG Log data, Fault log data , KWH Log Register.
- 30 programmable parameters.( Programming Protected with Password )
- Current transformer ratio programmable.
- Site Code & Site ID is Programmable.
- 12 Digital inputs, 12 relay outputs.
- Relay outputs for mains and generator contactor.
- Total Mains, DG run hours counter.
- Display of load current.
- Service Due message provision.
- TCP/ IP Protocol for Measuring & Monitoring the Parameters.
Control & Fault inputs with front panel visual indication :
- Mains supply ON
- Mains contactor ON
- DG supply ON
- DG contactor ON
- Battery low voltage
- Low oil pressure
- Generator fail to start
- Low fuel level
- Generator over speed fault
- Emergency Stop
- Alarm indication
