GCU - 107
GCU - 107
Description :

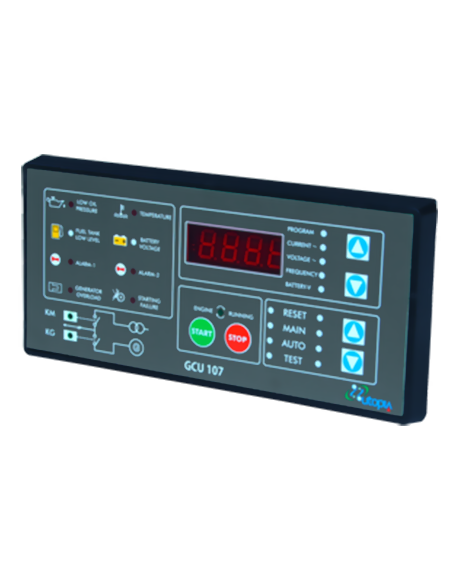

GCU 107 provides inexpensive A.M.F and generating set control & monitoring with digital accuracy. This microprocessor based controller includes 6 push buttons, 24 LED lamps, 4-digit display, 6 relay outputs, 8 digital inputs, 5 analogue inputs, 37 programmable parameters, Hour-Meter, Digital Calibration, LED Alarm Indications
Download BrochureSpecifications :-
DC Supply:
Battery plant: 12V-30VDC / 250mA Max Reverse Polarity Protected
Mains / Generator Input Voltage Range:
24 Vac up to 500Vac
Operating Temperature Range / Humidity:
30°C to +70°C / 0-95% non condensing

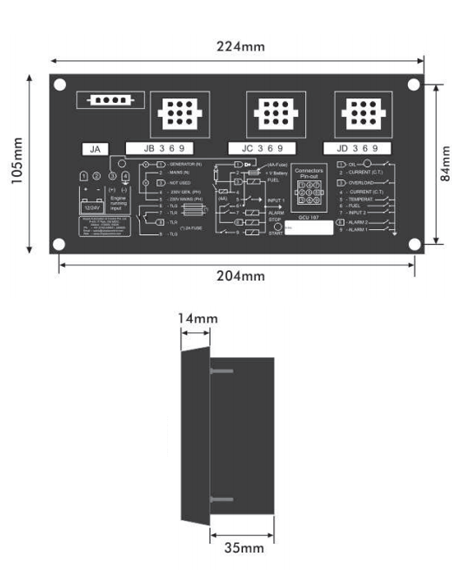

DIN Size / Cut Out:
DIN 492X96 ( Double Size 96X96 )/ 190mm X 93mm
AC Relay Outputs:
8 Amps / 250Vac ( external 1A Fuses are required )
Shipping Weight / Box Dimensions:
350Gr. / 245mm X 135mm X 60mm
