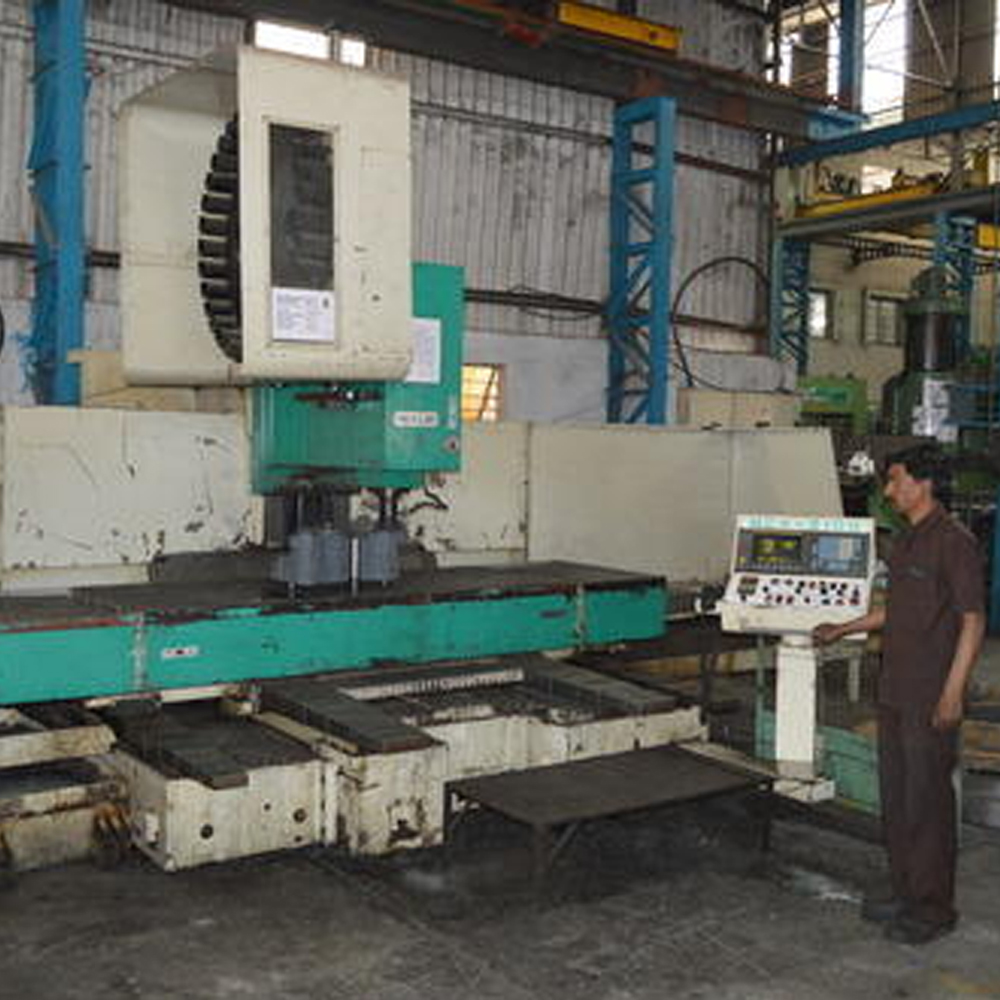

Vertical Machining Centers
Specifications:
- Model - HB 3150A.
- Year of Mfg. - 7. 2007.
- Controller- Fanuc 18i-MB.
- Longitudinal (X Axis) Travel- 3000 mm.
- Cross (Y Axis) Travel - 1500 mm.
- Vertical (Z Axis) Travel -1070 mm
- Dist from Spindle End to Table - 110 -1180 mm.
- Dist from Spindle Center to Column - 347 mm.
- Rapid Traverse (X,Y,Z axes) - 10000mm/min.
- Cutting Feed Rate (X,Y,Z axes) 1-5000mm/min.
- Table Working Surface - 3100 x 1740 mm.
- Max. Table Load - 8000 kg.
- Spindle Taper - BT50.
- Tool Storage Capacity - 40.
- Spindle Speed(Gear) 4000/6000 rpm.
- Spindle Speed(Pulley) 6000/8000 rpm.
- Spindle Drive Motor (30 min. rating) Fanuc- A18=22kW.
- X,Y,Z Axis Motors (Fanuc) - X - A30; Y- A30; Z-A22.
- Max. Tool Weight - 20 kg.
- Max Tool Size(ø x L )- 125ø x 350.
- Tool Selection - Random.
- Tool Change Time – 8 Sec.
- Tool Shank - BT50.
- Pull Stud - P50T-1.
- Air Pressure - 6.5 kg/cm2.
- Electrical Power Consumption- 50 KVA.
- machine Weight - 33500 kg.
- Floor Space – 10100 x 5700 x 5110 mm.

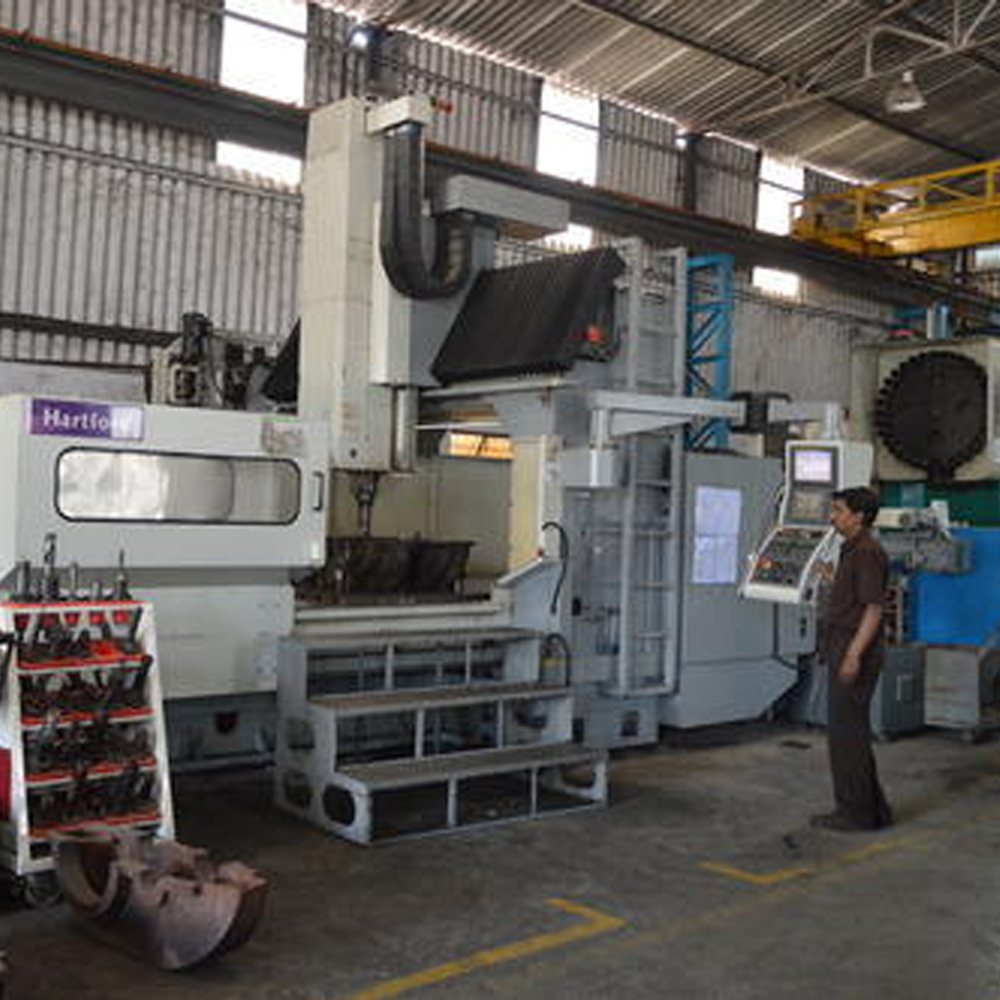

Vertical Machining Centers
Specifications:
- Spindle Speeds 35 – 3,500rpm.
- Spindle Taper BT50.
- Spindle Power 22kW.
- Table Size 2,301mm x 800mm.
- Table Load 3,000Kg.
- Spindle Nose to Table Top 198mm – 960mm.
- Extended X Axis 2,200mm.
- Extended Y Axis 851mm.
- Extended Z Axis 760mm.
- Rapids X/Y 10,000mm/min.
- Rapids Z 8,000mm/min.
- Feed Rates 1 – 4,000mm/min.
- 32 ATC
- Maximum Tool Weight 15Kg.
- Maximum Length 350mm.
- Approximate Dimensions 6,100mm x 3,863mm x 3,770mm.
- Complete with
- Through Spindle Coolant.
- Swarf Conveyor.
