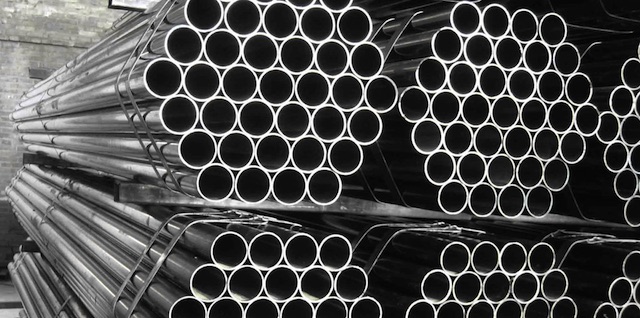

MS ERW PIPES
MS ERW PIPES / BLACK PIPES are formed from low – carbon mild steel on Automatic Tube mill by high Frequency Induction Welding process.
End Uses
Transmission of water
Size
Outside diameter : from 9.85 mm (1/8″) to 115 mm (4″) Wall thickness : 1.8 mm to 5.4 mm Length : 3 to 6 meters
Pipe End
Plain, Screwed and Socketed
Surface Finish
Black (Self – colored), outside mill protective coating
Product Standards
IS – 1239 (Part – 1) : 1990 , equivalent BS – 1387, ATSM A53 Grade A, and/or IS – 10577:1982
Packaging
Bare Bundles
Inspection
Mill’s certificate or inspection by an independent organization, as authorized by the customer.
Tests Performed
Chemical test, Mechanical test, Hydrostatic test, Other as required by the standards
| NOMINAL BORE(NB) | Class | Outside | Diameter | Thickness | SWG | |
| mm | inches | – | mm | mm | mm | – |
| 6 | (1/8″) | L | 9.85 | 9.65 | 1.8 | 15 |
| M | 9.85 | 9.65 | 2.25 | 13 | ||
| 8 | (1/4″) | L | 13.35 | 13.1 | 1.8 | 15 |
| M | 13.6 | 13.1 | 2.28 | 13 | ||
| H | 13.6 | 13.1 | 2.9 | 11 | ||
| 10 | (3/8″) | L | 16.85 | 16.6 | 1.8 | 15 |
| M | 17.1 | 16.6 | 2.25 | 13 | ||
| H | 17.1 | 16.6 | 2.9 | 11 | ||
| 15 | (1/2″) | L | 21.4 | 21 | 2 | 14 |
| M | 21.8 | 21 | 2.6 | 12 | ||
| H | 21.8 | 21 | 3.2 | 10 | ||
| 20 | (3/4″) | L | 26.9 | 26.4 | 2.3 | 13 |
| M | 27.3 | 26.5 | 2.6 | 12 | ||
| H | 27.3 | 26.5 | 3.2 | 10 | ||
| 25 | (1″) | L | 33.8 | 33.2 | 2.6 | 12 |
| M | 34.2 | 33.3 | 3.2 | 10 | ||
| H | 34.2 | 33.3 | 4 | 8 | ||
| 32 | (11/4″) | L | 42.5 | 41.9 | 2.6 | 12 |
| M | 42.9 | 42 | 3.2 | 10 | ||
| H | 42.9 | 42 | 4 | 8 | ||
| 40 | (11/2″) | L | 48.4 | 47.8 | 2.9 | 11 |
| M | 48.8 | 47.9 | 3.2 | 10 | ||
| H | 48.8 | 47.9 | 4 | 8 | ||
| 50 | (2″) | L | 60.2 | 59.6 | 2.9 | 11 |
| M | 60.8 | 59.7 | 3.6 | 9 | ||
| H | 60.8 | 59.7 | 4.5 | 7 | ||
| 65 | (21/2″) | L | 76 | 75.2 | 3.2 | 10 |
| M | 76.6 | 75.3 | 3.6 | 9 | ||
| H | 76.6 | 75.3 | 4.5 | 7 | ||
| 80 | (3″) | L | 88.7 | 87.9 | 3.2 | 10 |
| M | 89.5 | 88 | 4 | 8 | ||
| H | 89.5 | 88 | 4.8 | 6 | ||
| 100 | (4″) | L | 113.9 | 113 | 3.6 | 9 |
| M | 115 | 113.1 | 4.5 | 7 | ||
| H | 115 | 113.1 | 5.4 | 5 | ||
