Screen Printing
Stainless Steel Screens for Electronic Printing
Our organization offers a wide range of Stainless Steel Screens for Electronic Printing to its customers. The BOPP SD is the material used, which is a precisely woven stainless steel mesh that is specially designed for the screen printing industry. Owing to the preciseness feature of the range, these products are capable of delivering high quality outputs while taking into account the rigorous needs of the electronics printing industry.
The meshes are available in three designs:
- BOPP SD PLUS : New generation mesh achieving 50% higher tension tolerance
- BOPP SDC : Precisely calendared for ultra thin grade
- BOPP SDC PLUS : Ultra thin plus higher tension tolerance
The benefits of the range are
- High precision of the mesh openings
- Uniform weave
- Exceptionally high yield point
- Very narrow thickness tolerances
- Large Open area
- Firm mesh binding
- Easy to use (flat-lying, no curl)
- No static charge
These screens are extensively applicable in Solar cell production, PCB, Hybrid circuit, fine scales and dials.

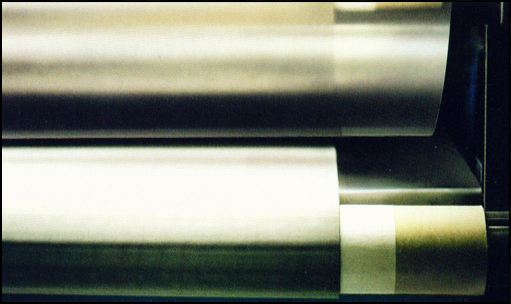

Calendared SDC Mesh
Screen Stainless Steel Screens for Glass & Ceramics Printing

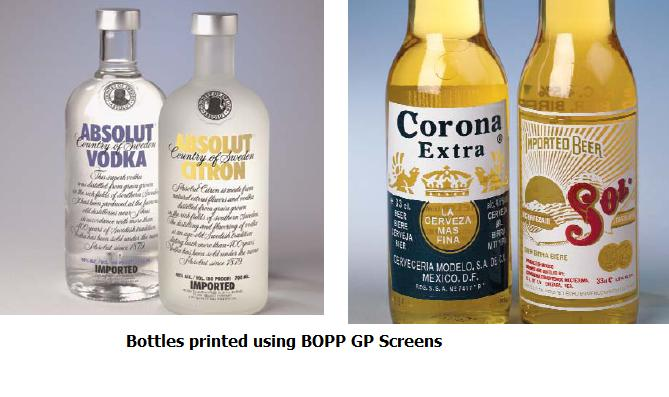

Perfume bottles printed using BOPP GP screens
Ceramic ware printed using BOPP GP screens Our organization offers a wide range of Stainless Steel Screens for Ceramic & Glass Printing, which is manufactured using premium quality BOPP GP and is especially used with thermoplastic colors. Using superior quality BOPP GP meshes helps us in assuring the optimum print quality. These are extensively used in glass and ceramics applications.
Features:
• Optimum accuracy of registration
• High resolution
• Controlled ink / paste deposit
• Extended service life
Specifications:
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
| Designation | Mesh opening w mm | Wire diameter d mm | Number of wires per inch (Mesh) | per cm (n) | Open area Ao % | Mesh thickness µm | Theoretical ink volume Vth cm3/m2 |
| GP 165 | 100 | 0.050 | 165 | 67 | 44 | 105 ± 7 | 46 |
| GP 180 | 95 | 0.045 | 180 | 71 | 46 | 95 ± 7 | 44 |
| GP 200 | 90 | 0.040 | 200 | 77 | 48 | 85 ± 7 | 41 |
| GP 230 | 75 | 0.036 | 230 | 90 | 46 | 75 ± 6 | 34 |
| GP 250 | 63 | 0.040 | 250 | 97 | 37 | 90 ± 6 | 34 |
| GP 270 | 56 | 0.036 | 270 | 109 | 37 | 80 ± 6 | 30 |
| GP 300 | 56 | 0.032 | 300 | 114 | 40 | 68 ± 6 | 27 |
| GP 325 | 50 | 0.030 | 325 | 125 | 39 | 62 ± 4 | 24 |
| GP 400 | 40 | 0.025 | 400 | 154 | 38 | 51 ± 4 | 19 |
